Power Source (Double Cab): Notes

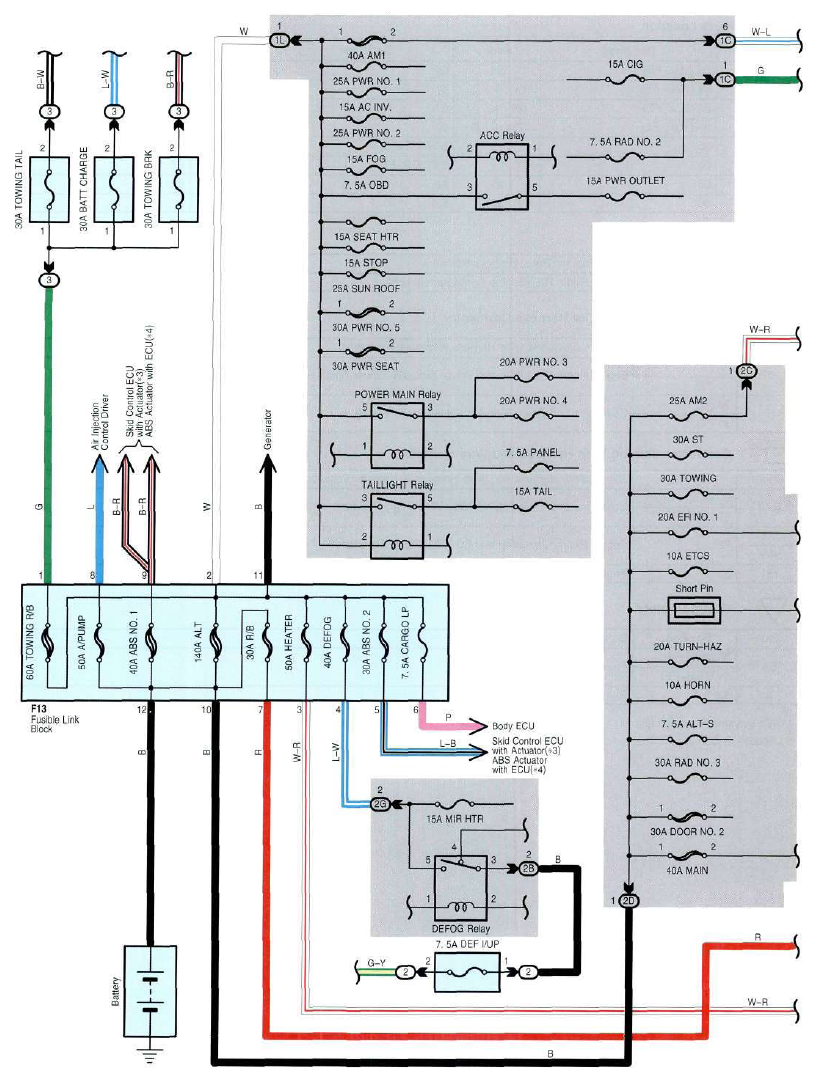

Fig 1: Power Source System Wiring Diagram (Double Cab; 1 Of 2)
G08864436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

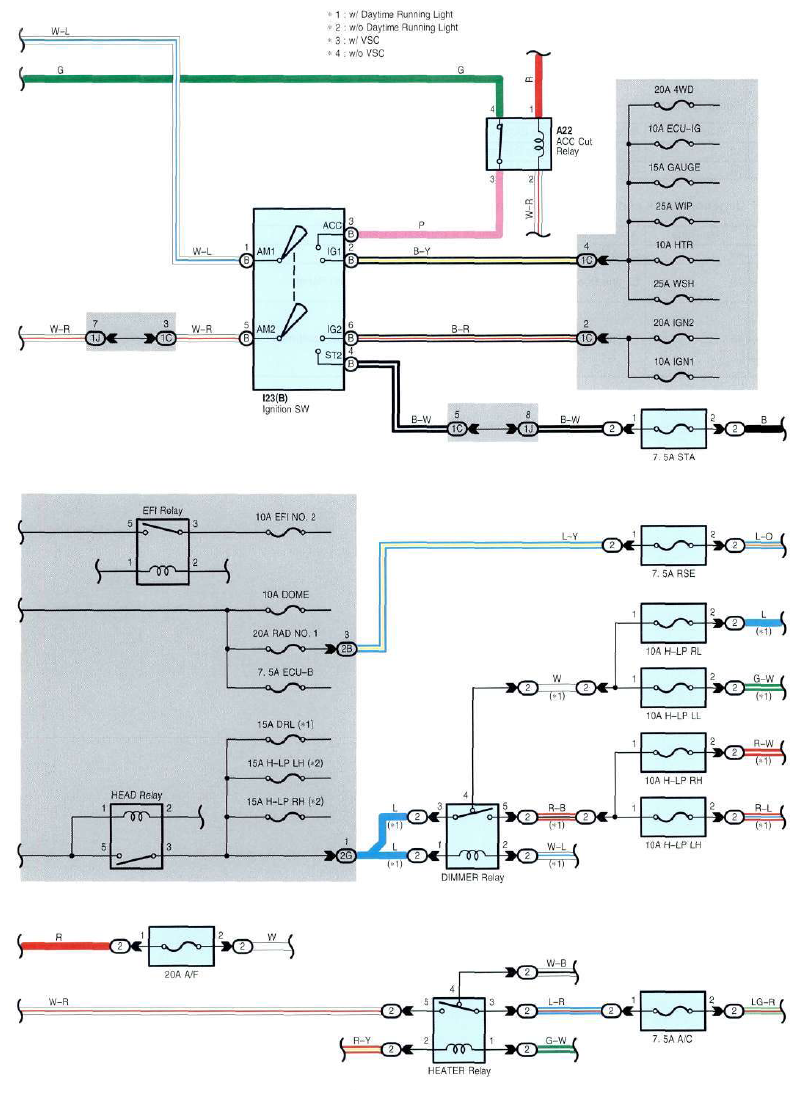

Fig 2: Power Source System Wiring Diagram (Double Cab; 2 Of 2)
G08864437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
