Navigation and Audio System (Access/Standard Cab): Notes

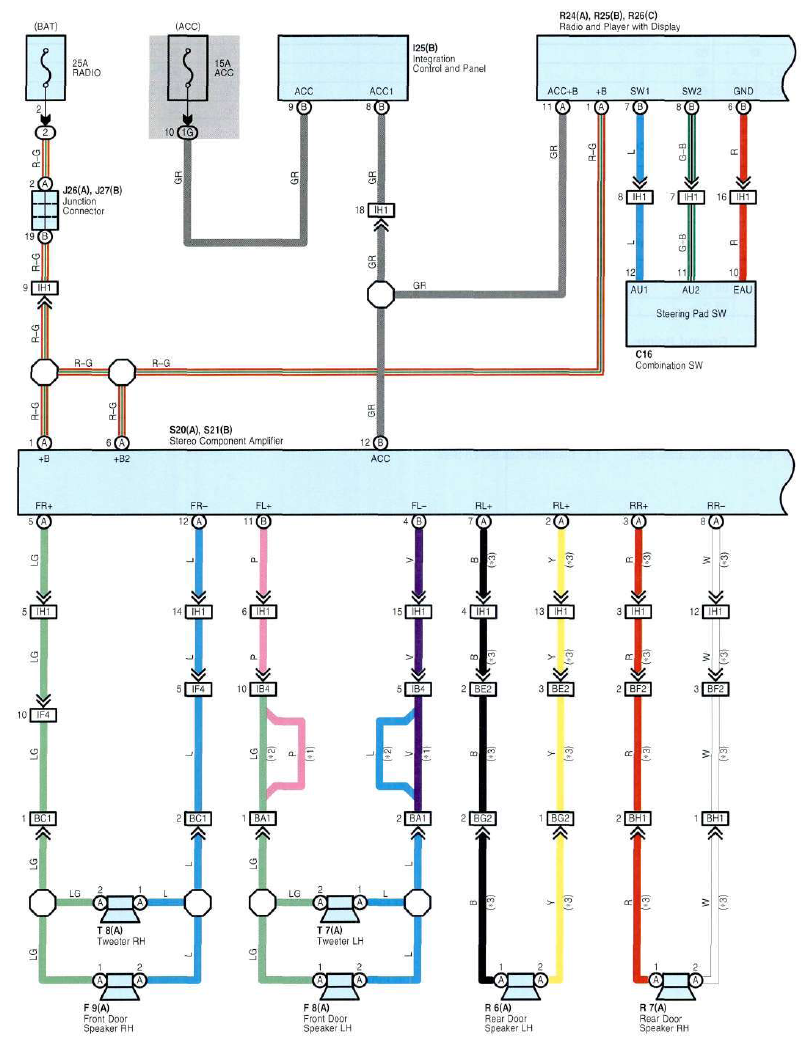

Fig 1: Navigation And Audio System Wiring Diagram (Access/Standard Cab; 1 Of 3)
G08864423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

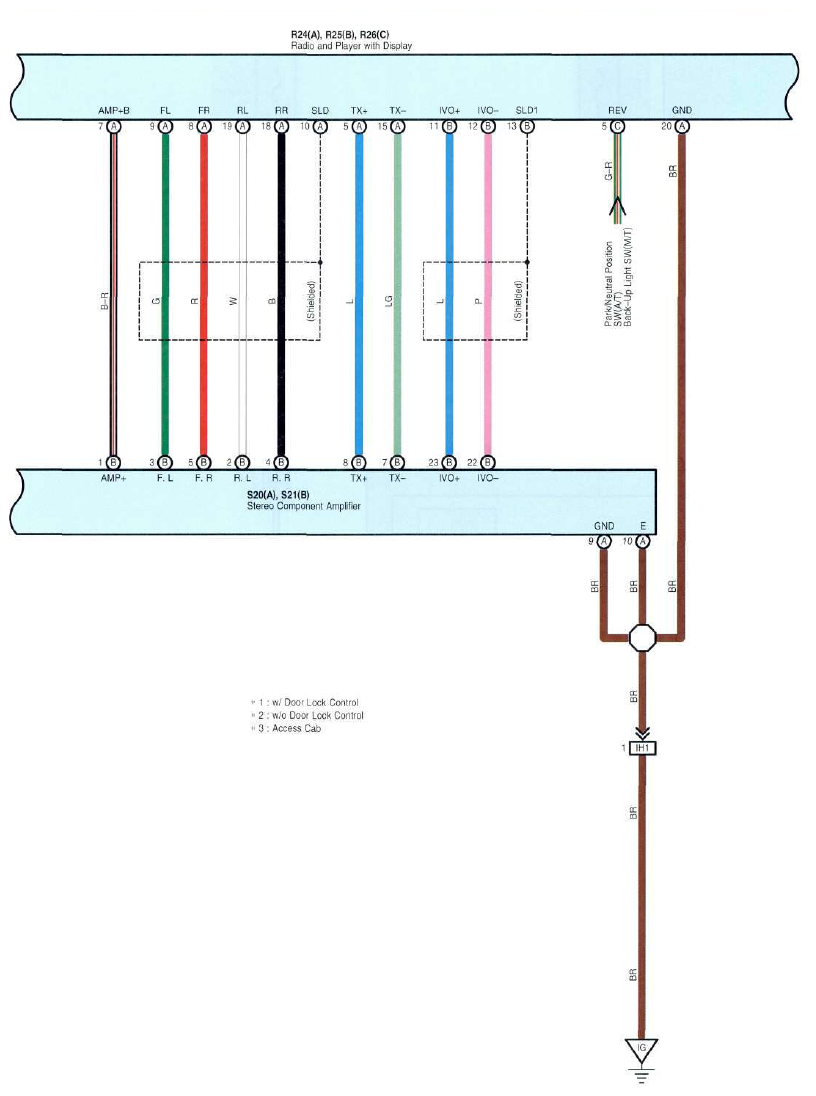

Fig 2: Navigation And Audio System Wiring Diagram (Access/Standard Cab; 2 Of 3)
G08864424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

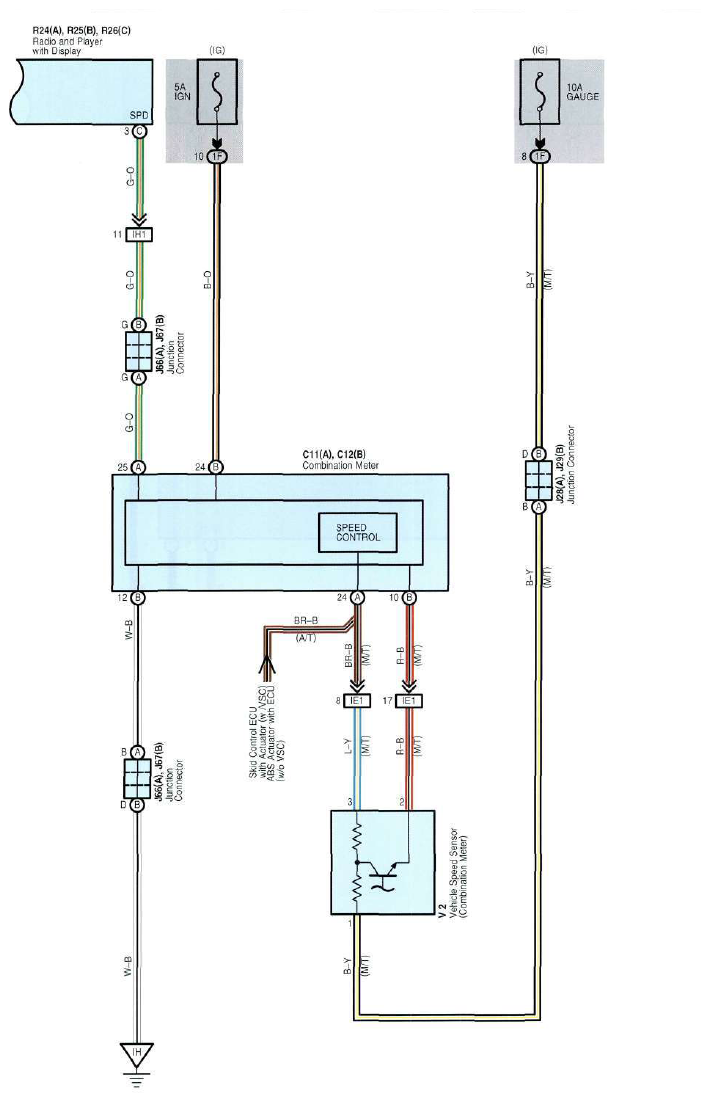

Fig 3: Navigation And Audio System Wiring Diagram (Access/Standard Cab; 3 Of 3)
G08864425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
