Multiplex Communication System - CAN (Double Cab): Notes

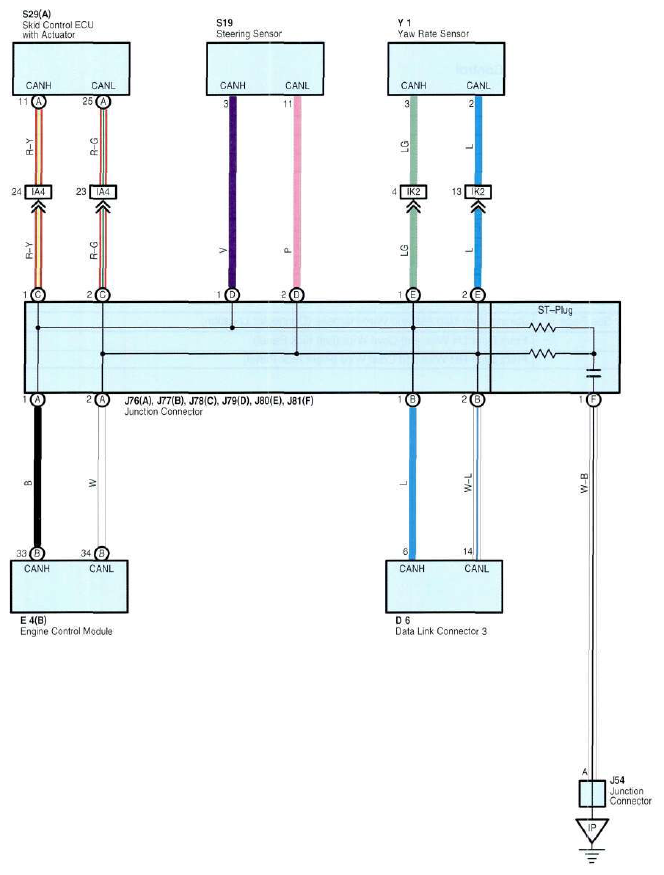

Fig 1: Multiplex Communication - CAN System Wiring Diagram (Double Cab)

G08864474

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
