Multiplex Communication System - BEAN Bus (Double Cab): Notes

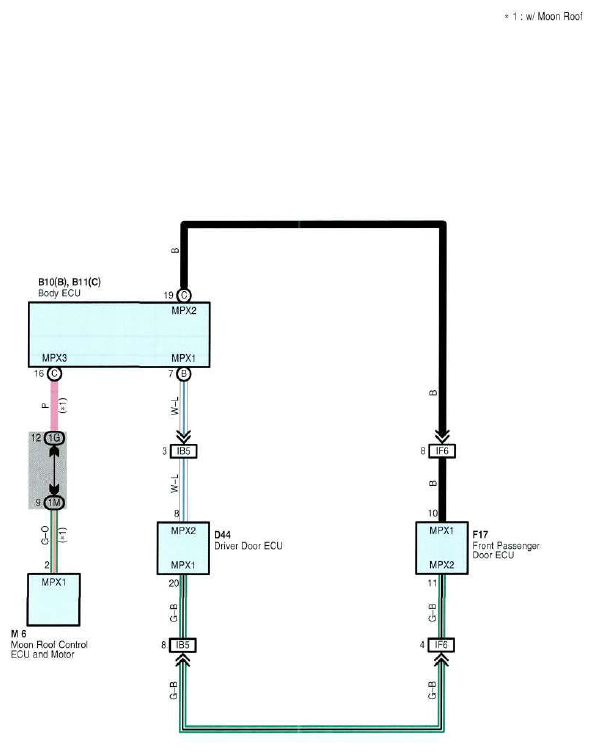

Fig 1: Multiplex Communication - BEAN Bus System Wiring Diagram (Double Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Multiplex Communication System Includes Following Systems

* Door Lock Control

* Fog Light

* Headlight

* Horn

* Interior Light

* Key Reminder

* Light Auto Turn Off System

* Power Window

* Theft Deterrent

* Wireless Door Lock Control
