Light Auto Turn Off System (Double Cab): Notes

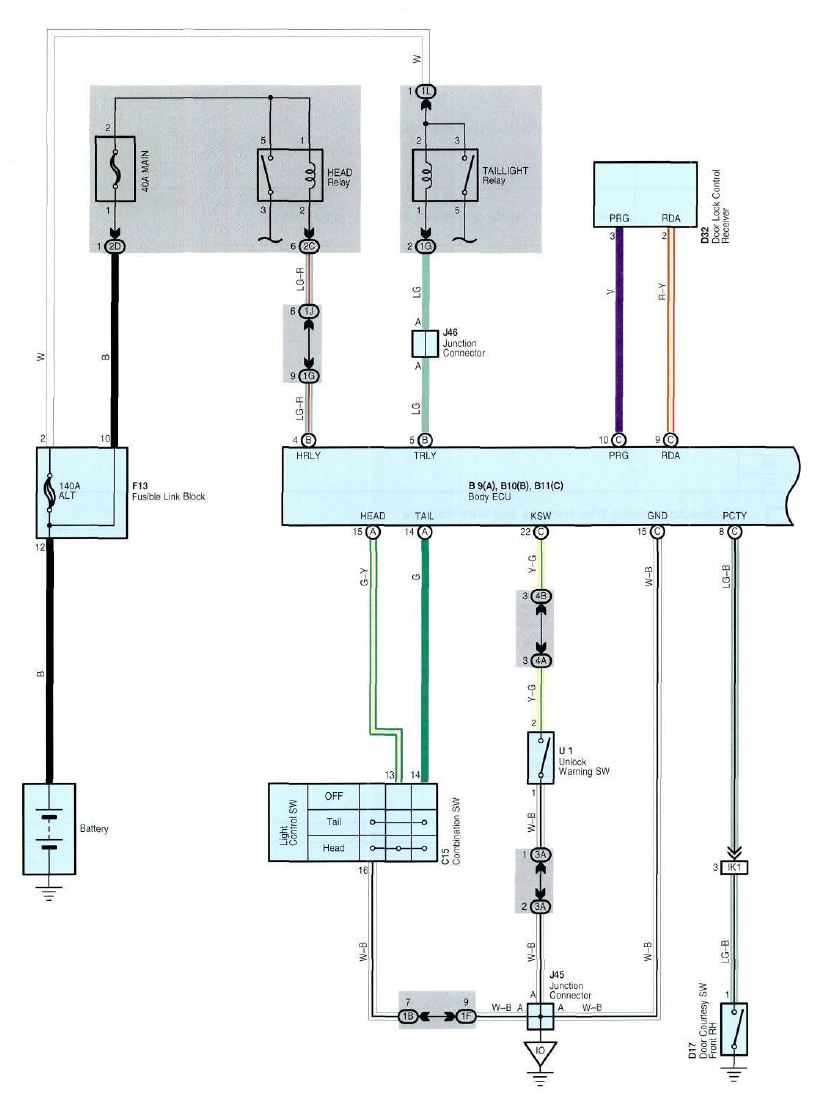

Fig 1: Light Auto Turn Off System Wiring Diagram (Double Cab; 1 Of 2)
G08864489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

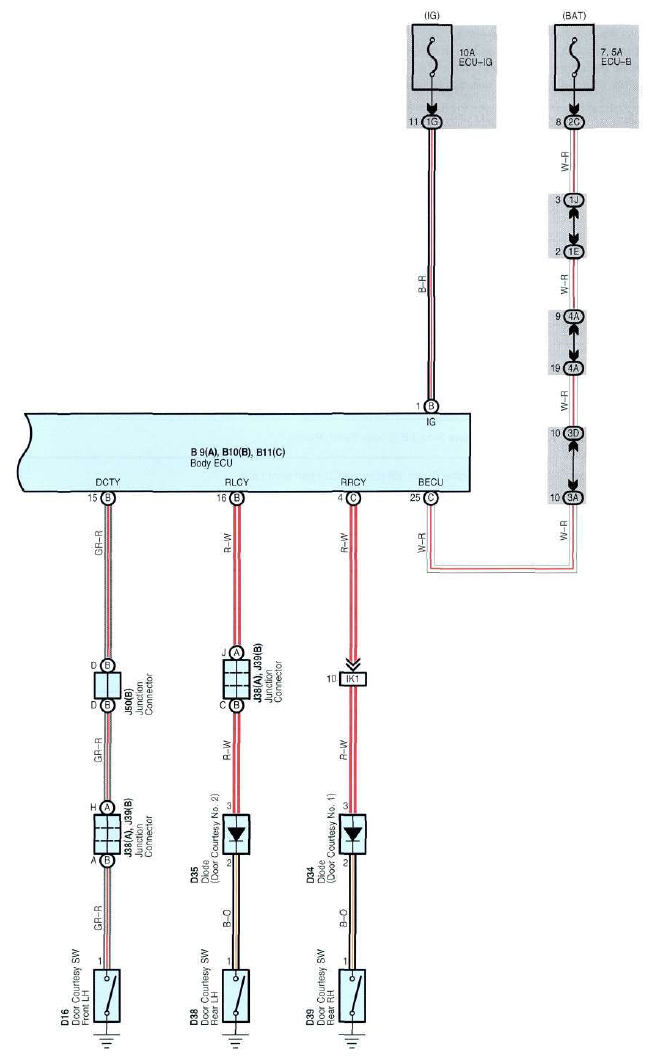

Fig 2: Light Auto Turn Off System Wiring Diagram (Double Cab; 2 Of 2)
G08864490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
