Interior Light (Double Cab)
>>
Notes
Interior Light (Double Cab): Notes

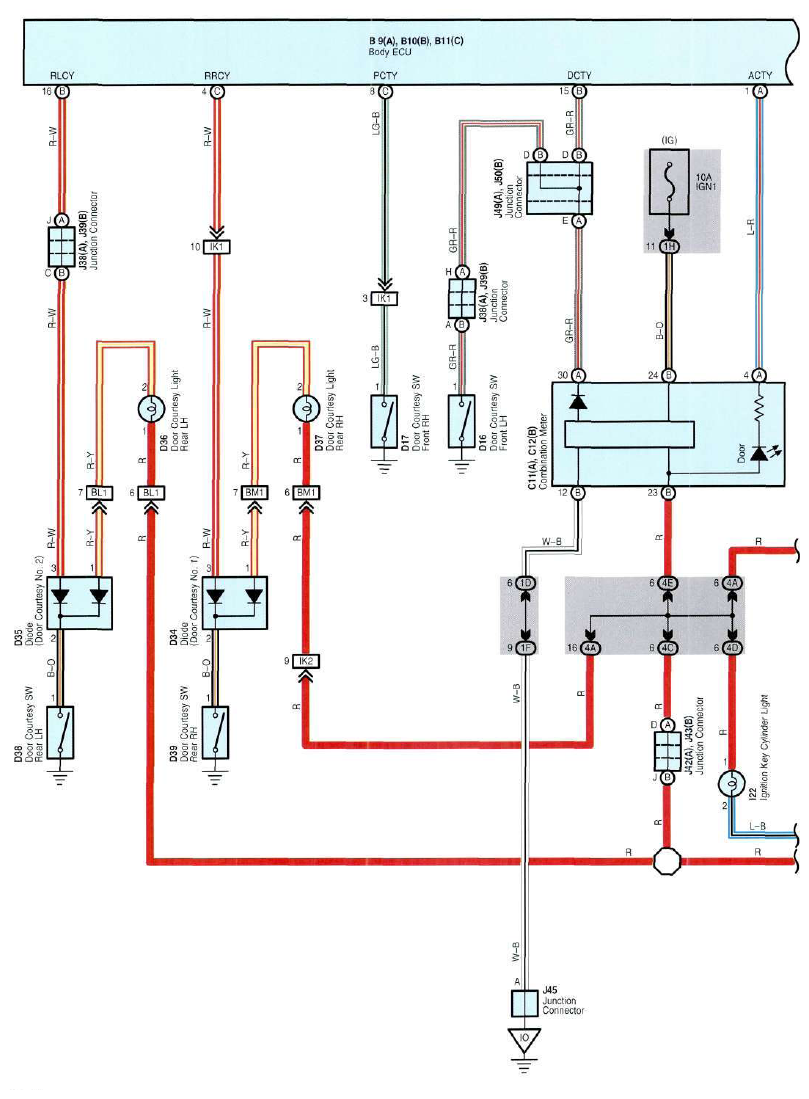

Fig 1: Interior Light System Wiring Diagram (Double Cab; 1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

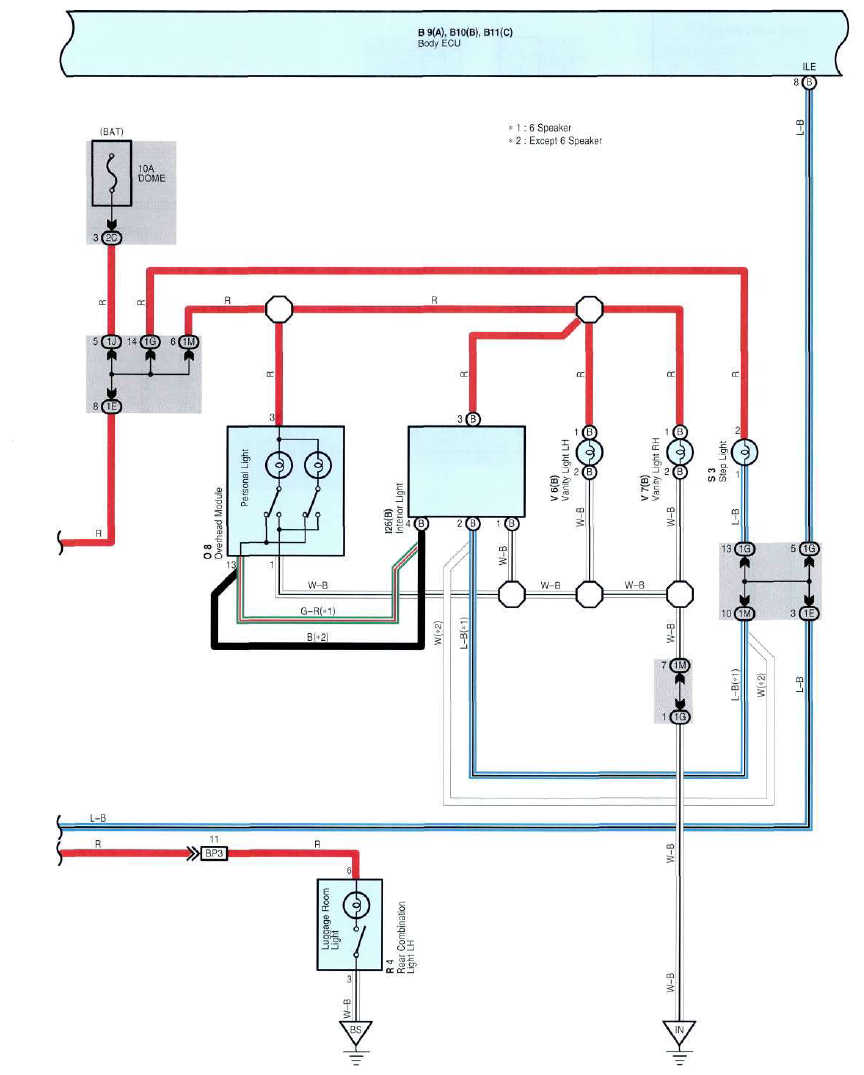

Fig 2: Interior Light System Wiring Diagram (Double Cab; 2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

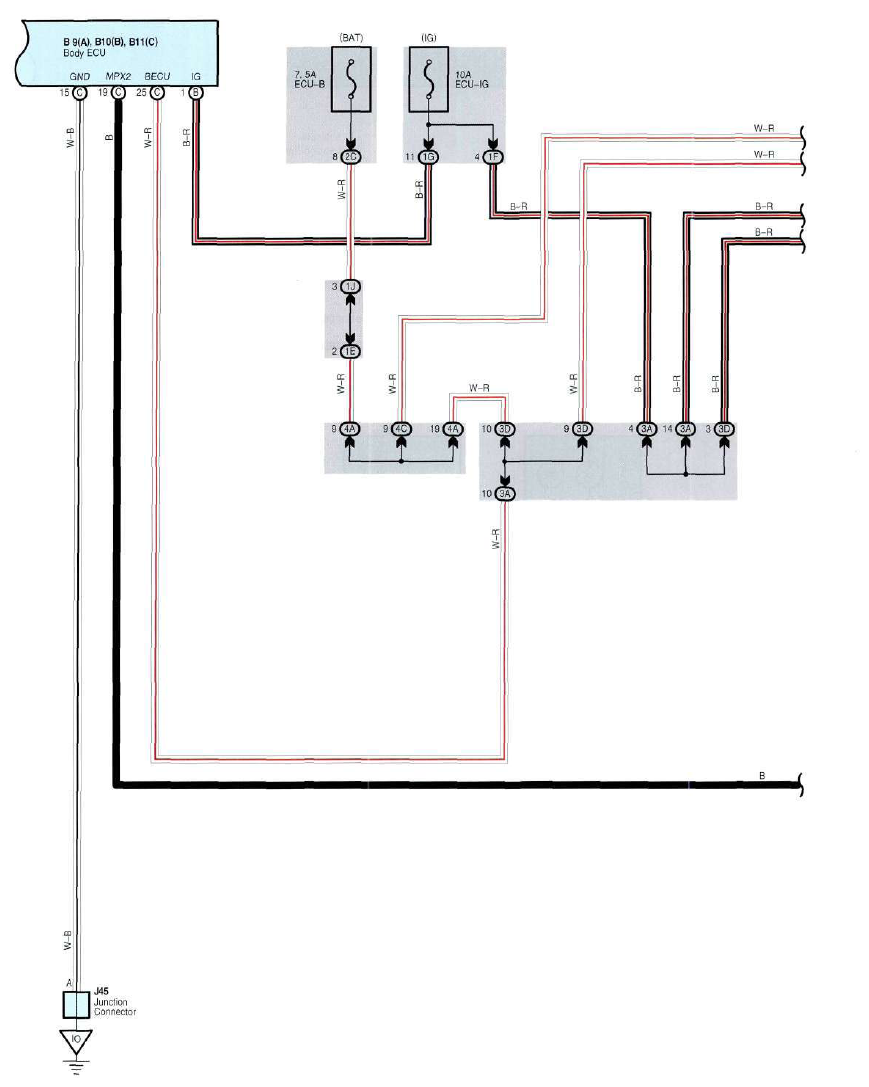

Fig 3: Interior Light System Wiring Diagram (Double Cab; 3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

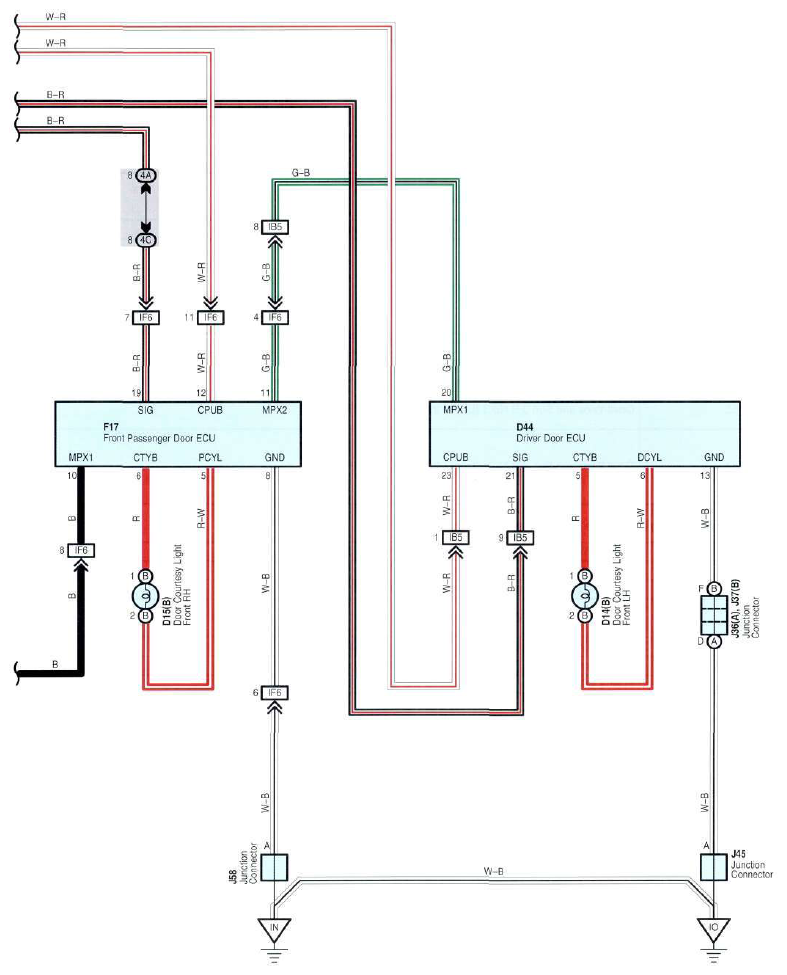

Fig 4: Interior Light System Wiring Diagram (Double Cab; 4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
