Ignition (Double Cab): Notes

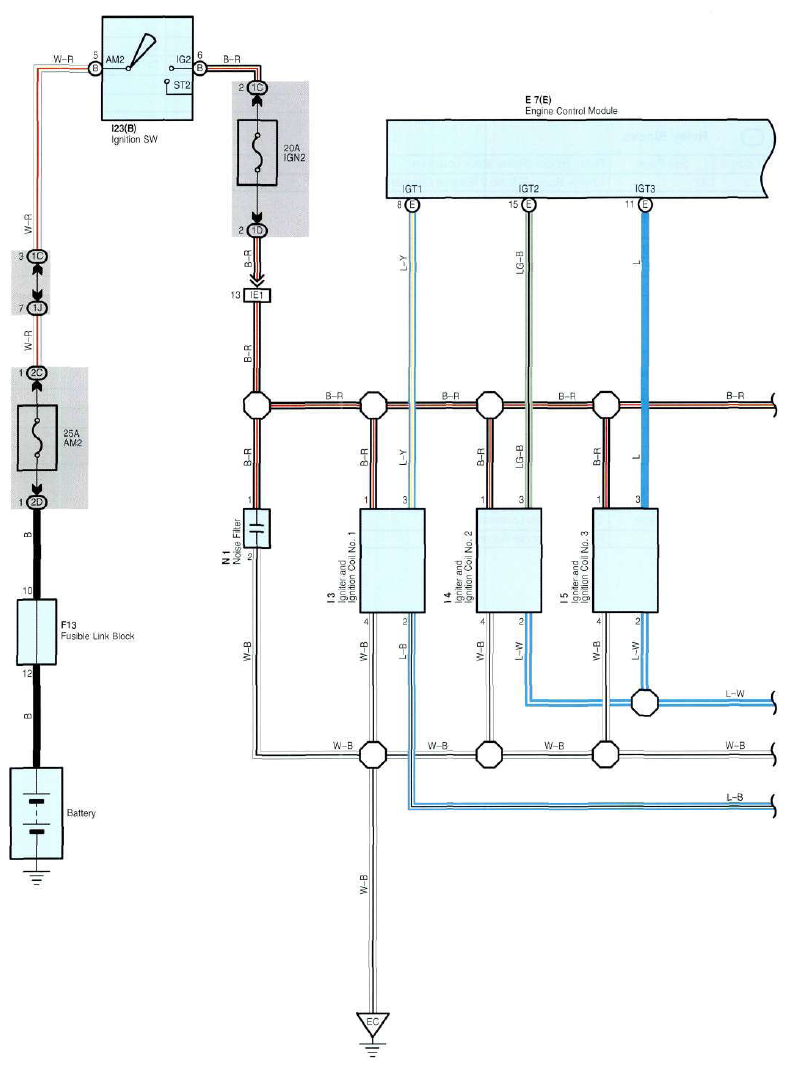

Fig 1: Ignition System Wiring Diagram (Double Cab; 1 Of 2)
G08864439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

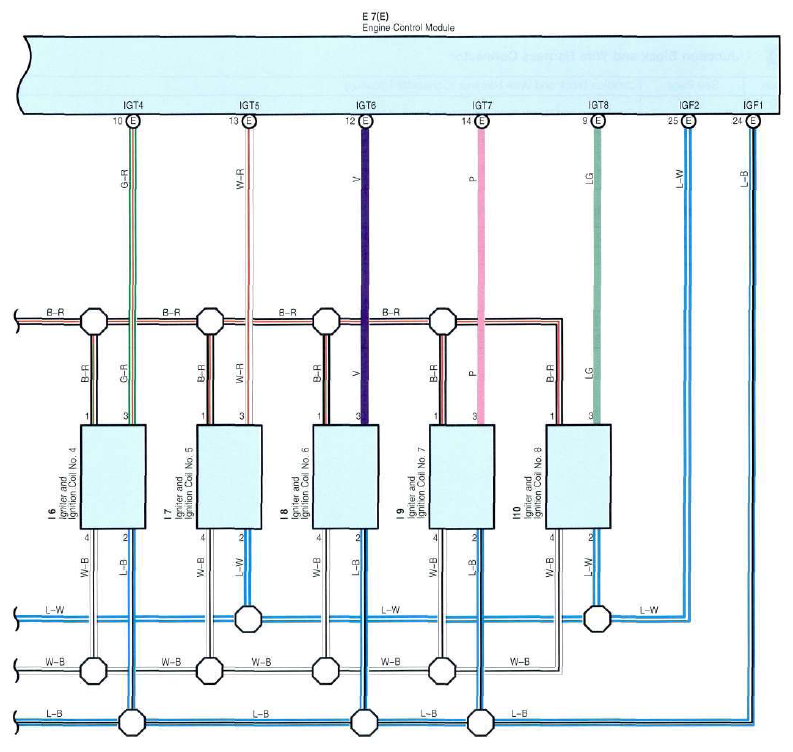

Fig 2: Ignition System Wiring Diagram (Double Cab; 2 Of 2)
G08864440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
