Headlight without DRL (Double Cab): Notes

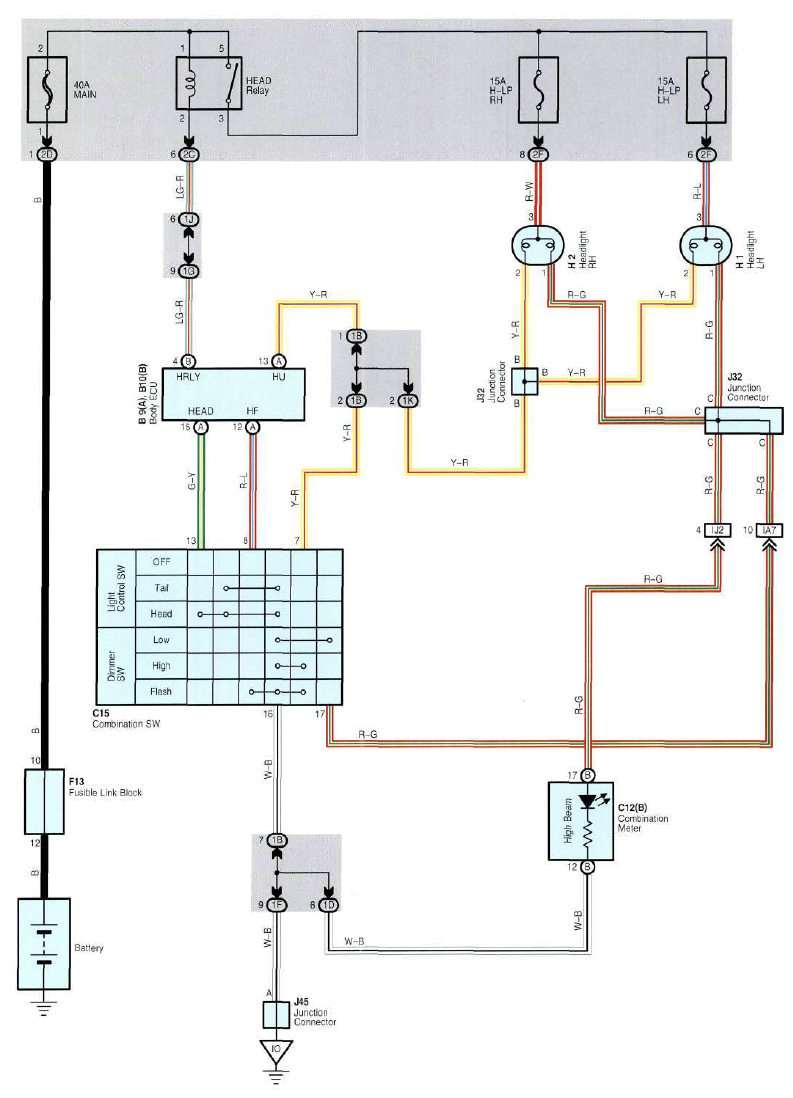

Fig 1: Headlight Without DRL System Wiring Diagram (Double Cab)

G08864456

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
