Headlight without DRL (Access/Standard Cab): Notes

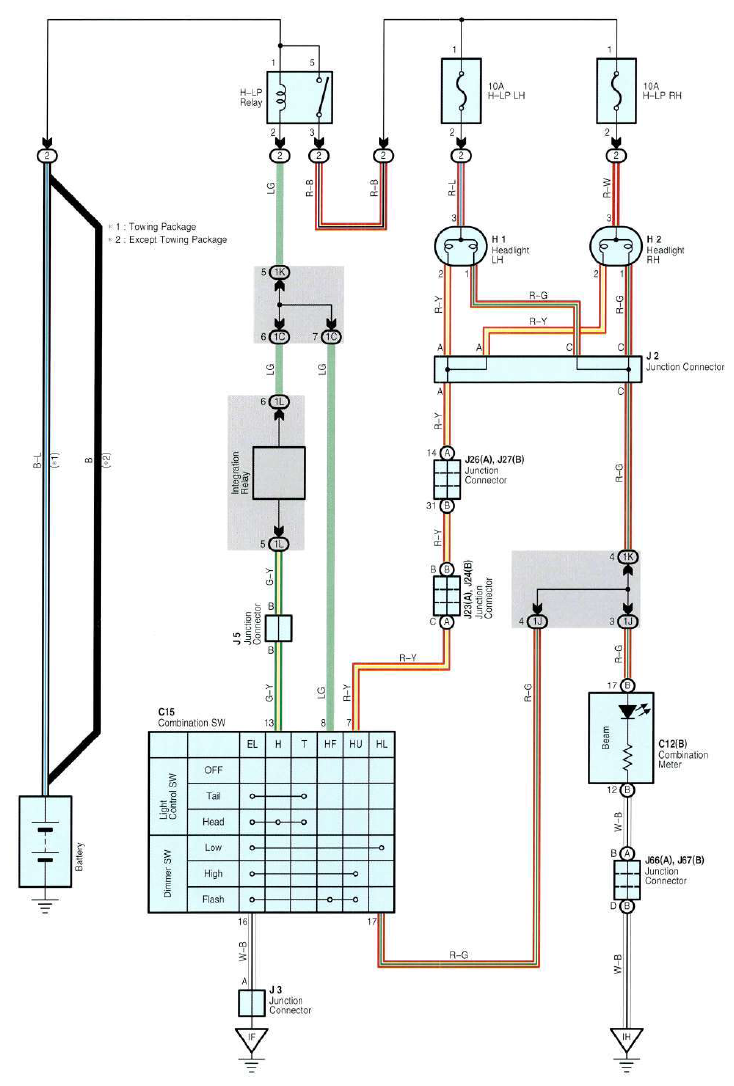

Fig 1: Headlight Without DRL System Wiring Diagram (Access/Standard Cab)

G08864349

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
