Headlight with DRL (Access/Standard Cab): Notes

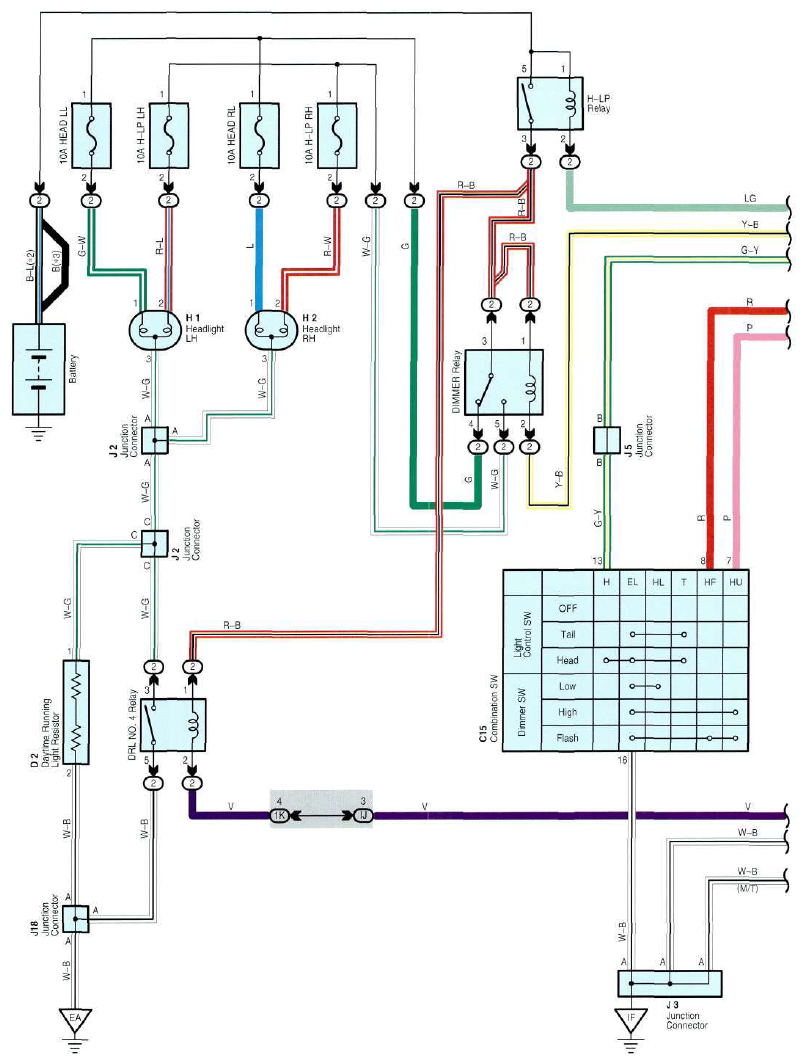

Fig 1: Headlight With DRL System Wiring Diagram (Access/Standard Cab; 1 Of 2)
G08864347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

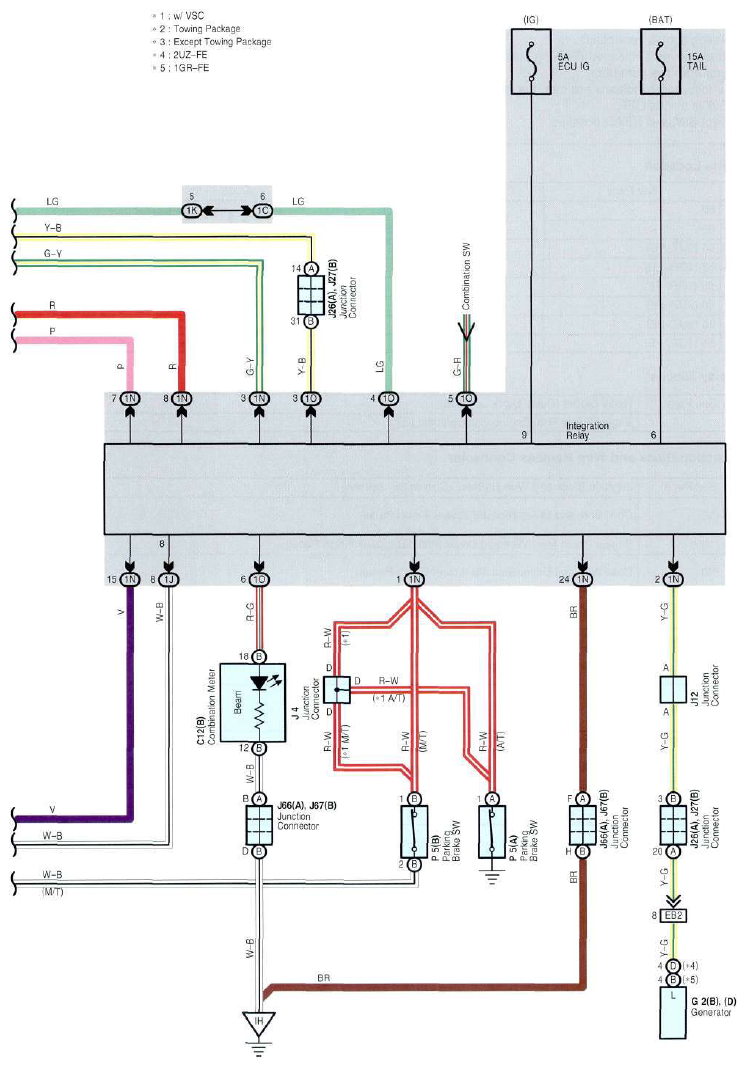

Fig 2: Headlight With DRL System Wiring Diagram (Access/Standard Cab; 2 Of 2)
G08864348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
