Fog Light without DRL (Access/Standard Cab): Notes

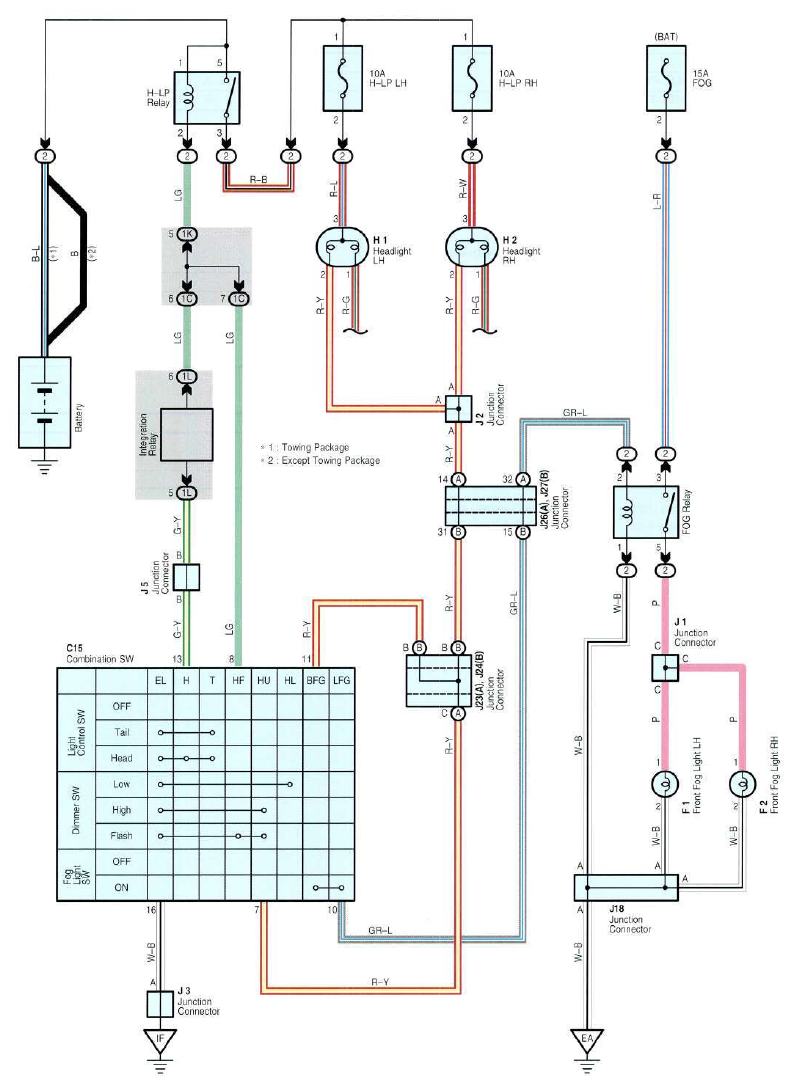

Fig 1: Fog Light Without DRL (Access/Standard Cab)

G08864351

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
