Engine Immobiliser System (Double Cab): Notes

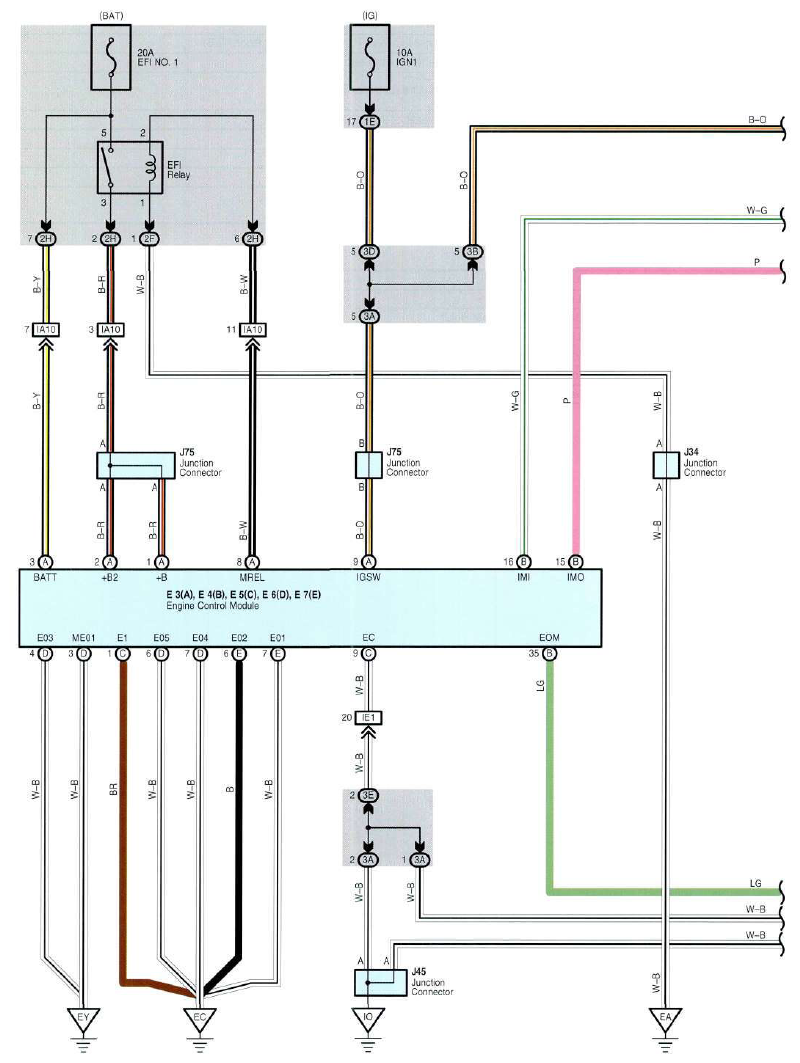

Fig 1: Engine Immobiliser System Wiring Diagram (Double Cab; 1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

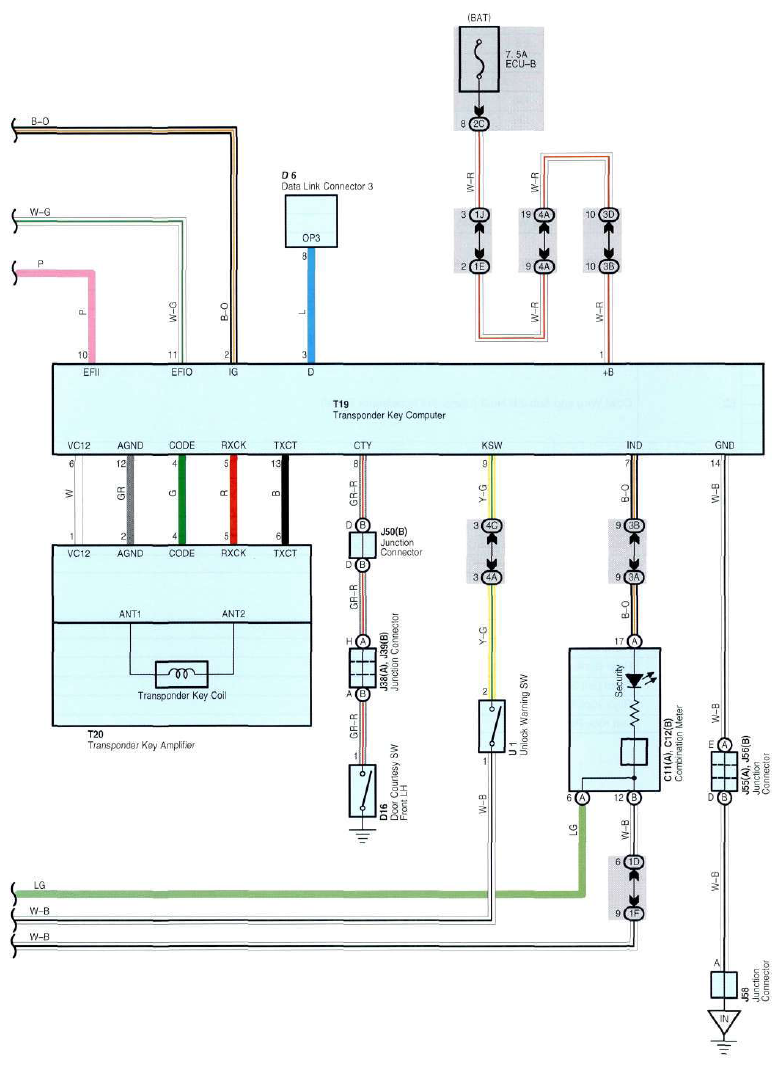

Fig 2: Engine Immobiliser System Wiring Diagram (Double Cab; 2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
