Engine Immobiliser System (Access/Standard Cab): Notes

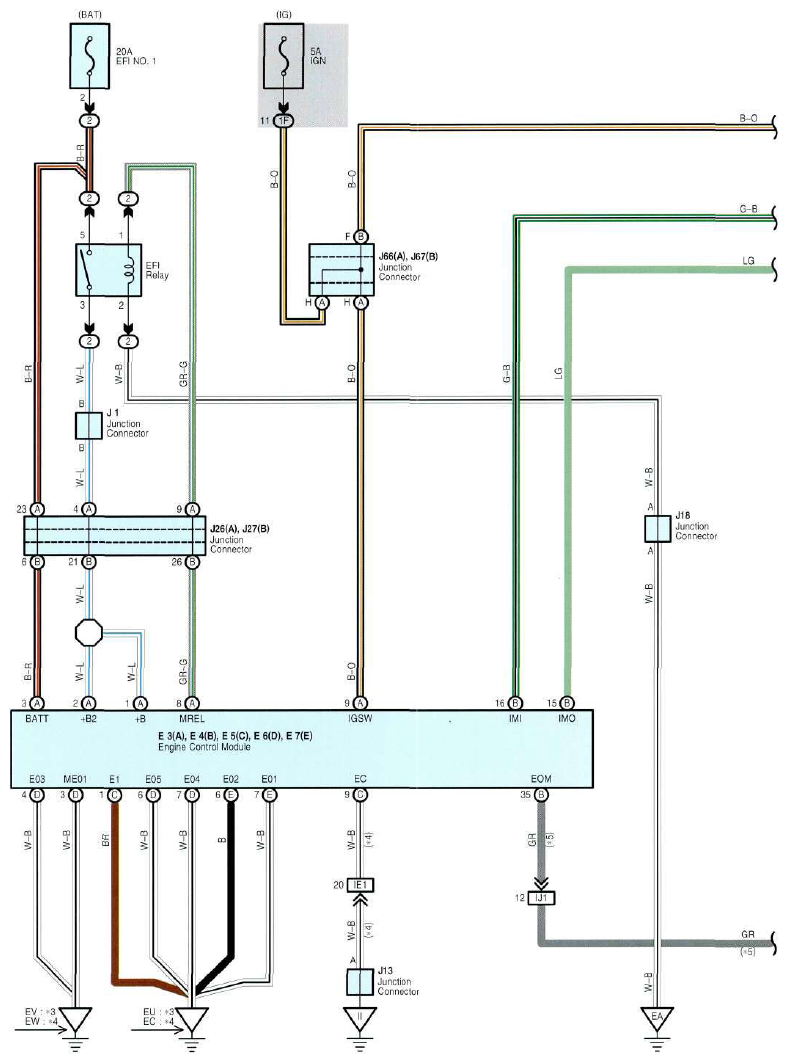

Fig 1: Engine Immobiliser System Wiring Diagram (Access/Standard Cab; 1 Of 2)
G08864345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

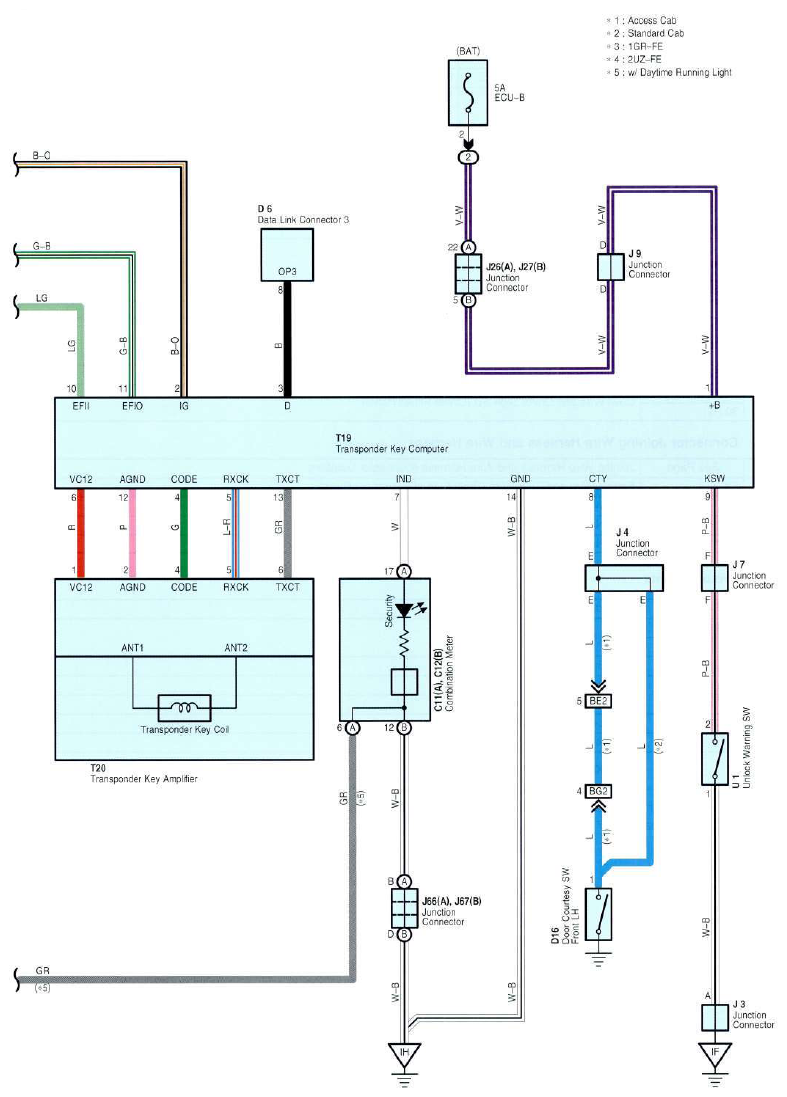

Fig 2: Engine Immobiliser System Wiring Diagram (Access/Standard Cab; 2 Of 2)
G08864346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
