Engine Control (Double Cab): Notes

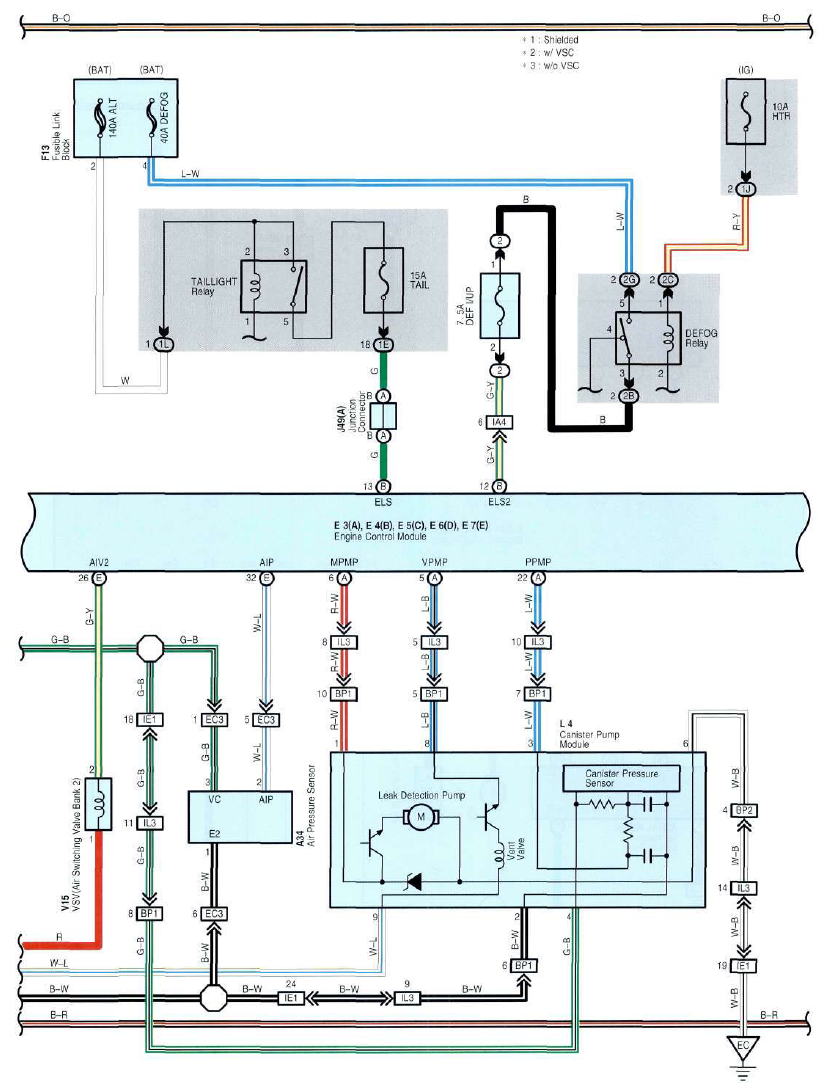

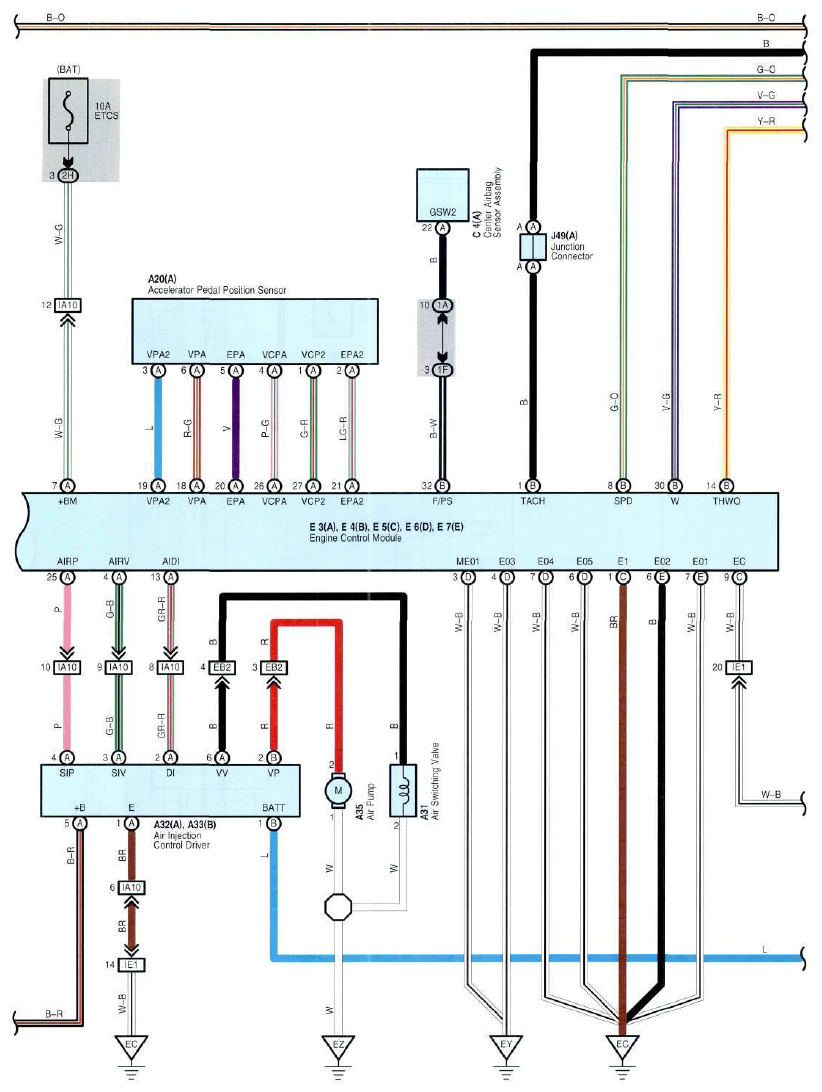

Fig 1: Engine Control System Wiring Diagram (Double Cab; 1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

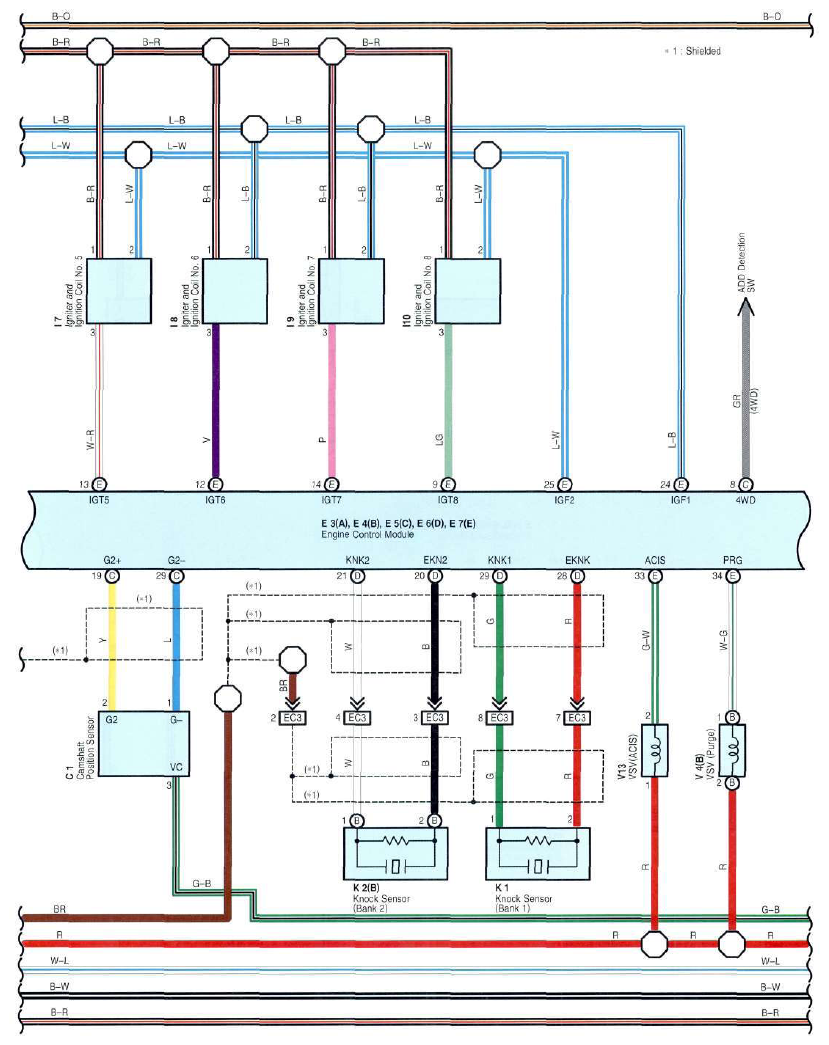

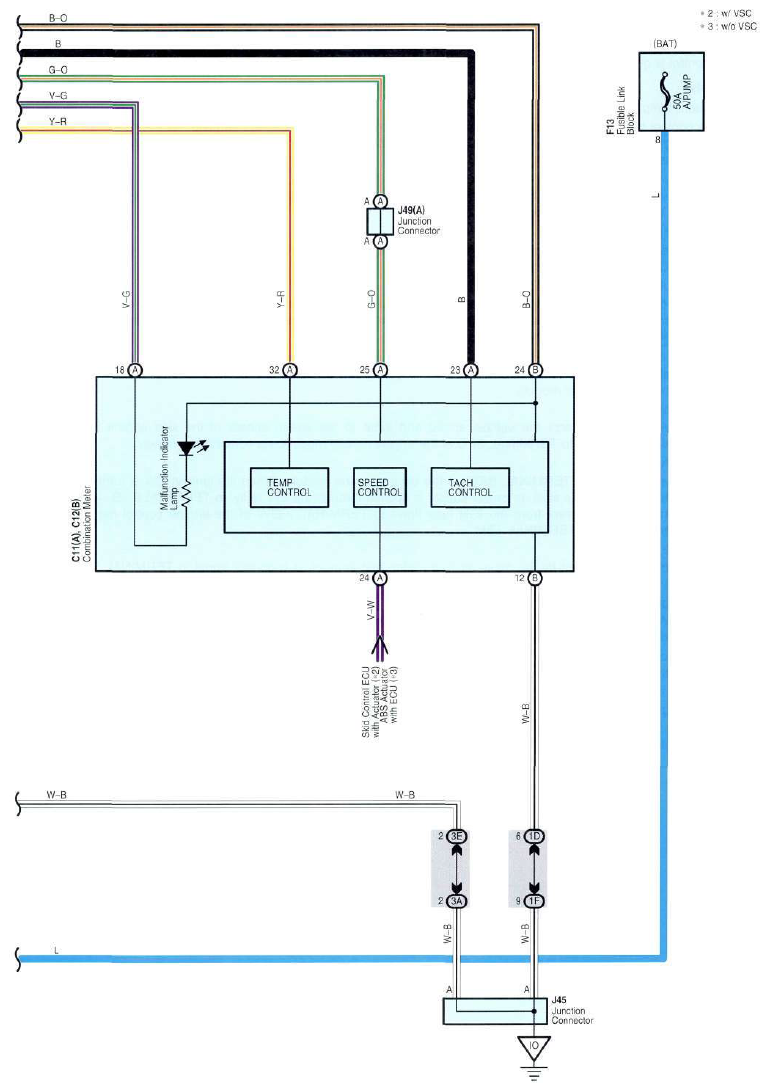

Fig 2: Engine Control System Wiring Diagram (Double Cab; 2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

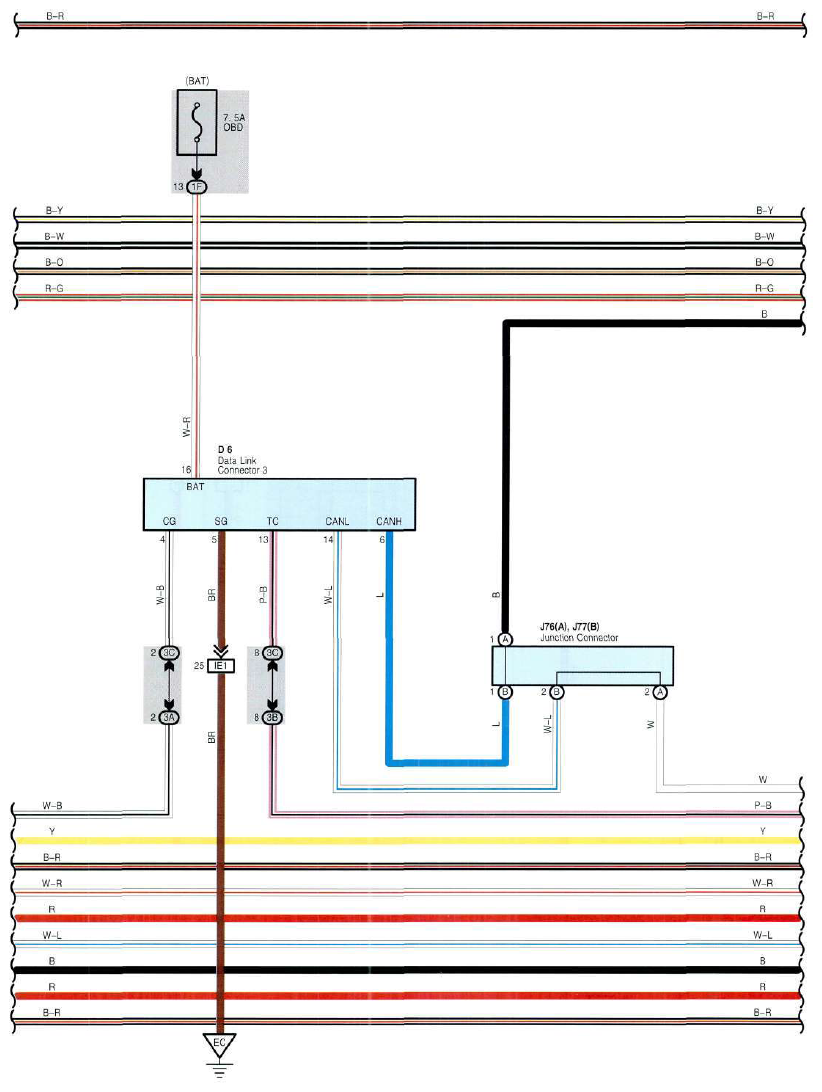

Fig 3: Engine Control System Wiring Diagram (Double Cab; 3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

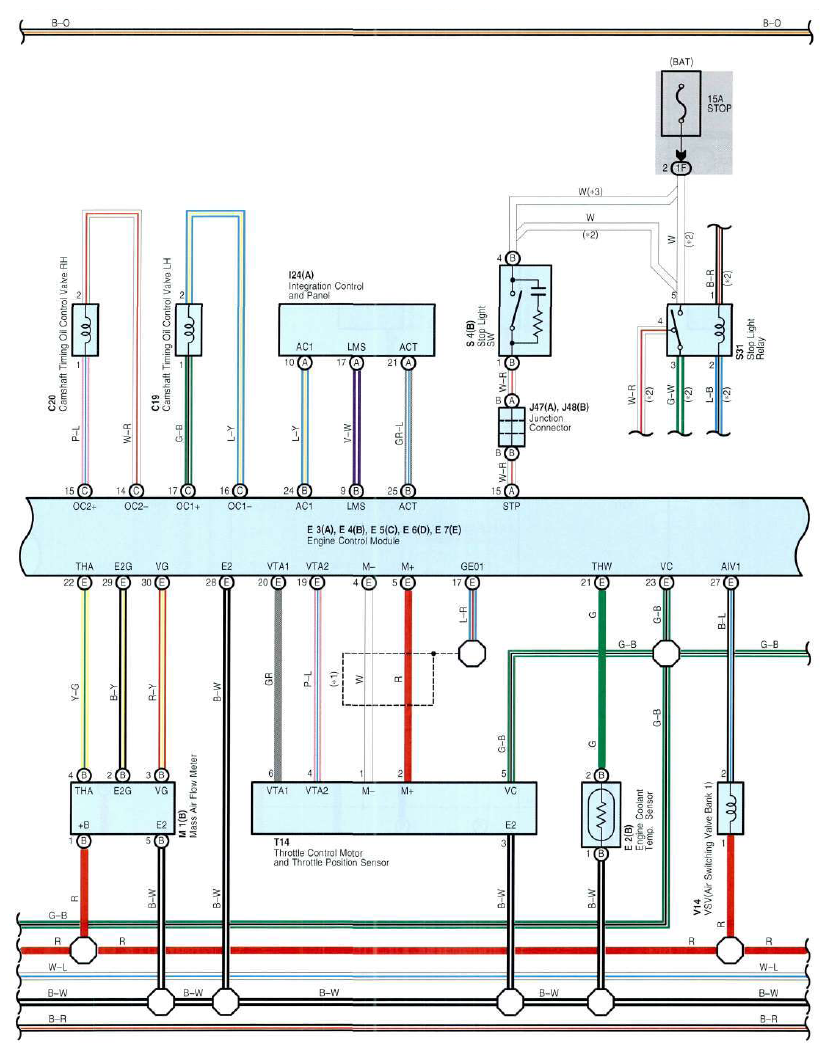

Fig 4: Engine Control System Wiring Diagram (Double Cab; 4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

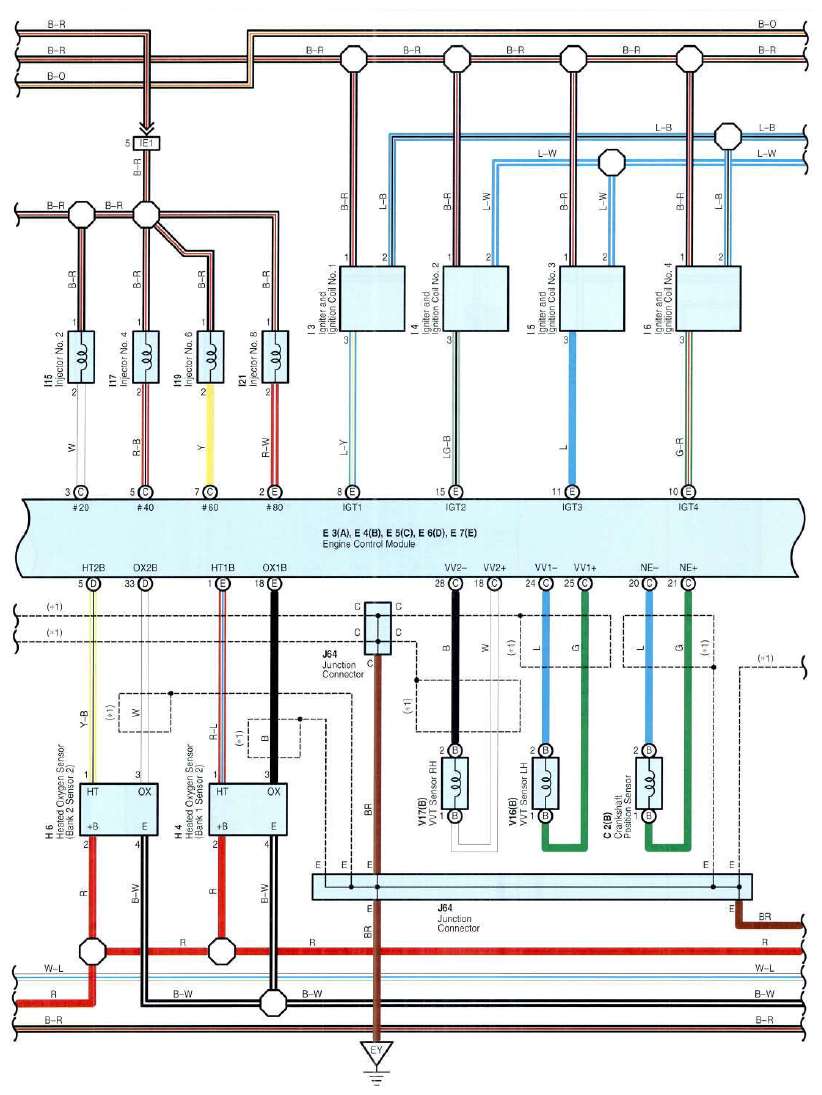

Fig 5: Engine Control System Wiring Diagram (Double Cab; 5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

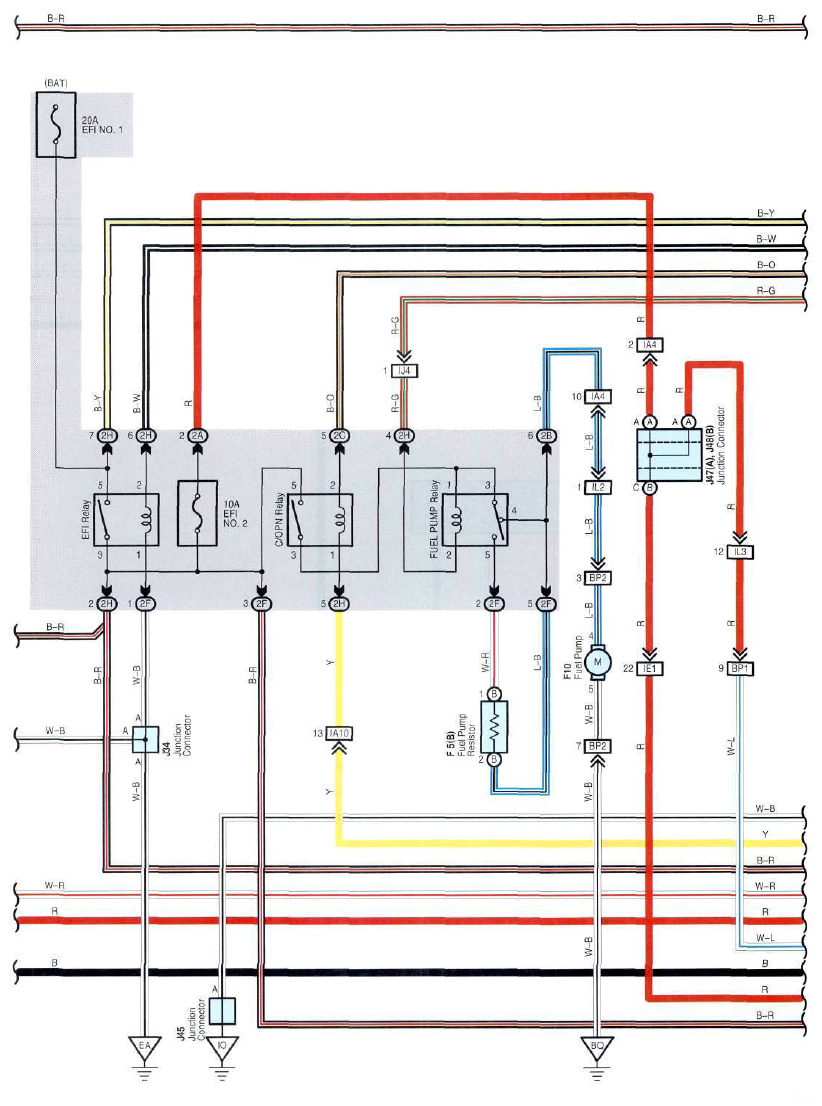

Fig 6: Engine Control System Wiring Diagram (Double Cab; 6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

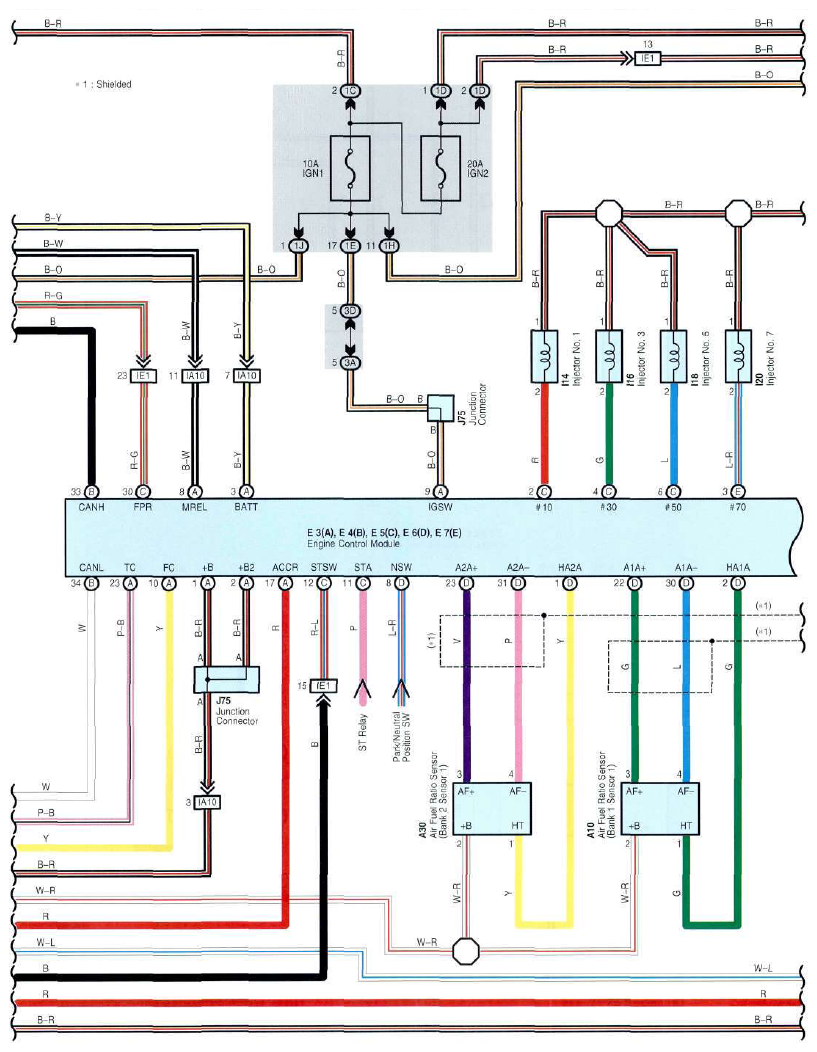

Fig 7: Engine Control System Wiring Diagram (Double Cab; 7 Of 10)

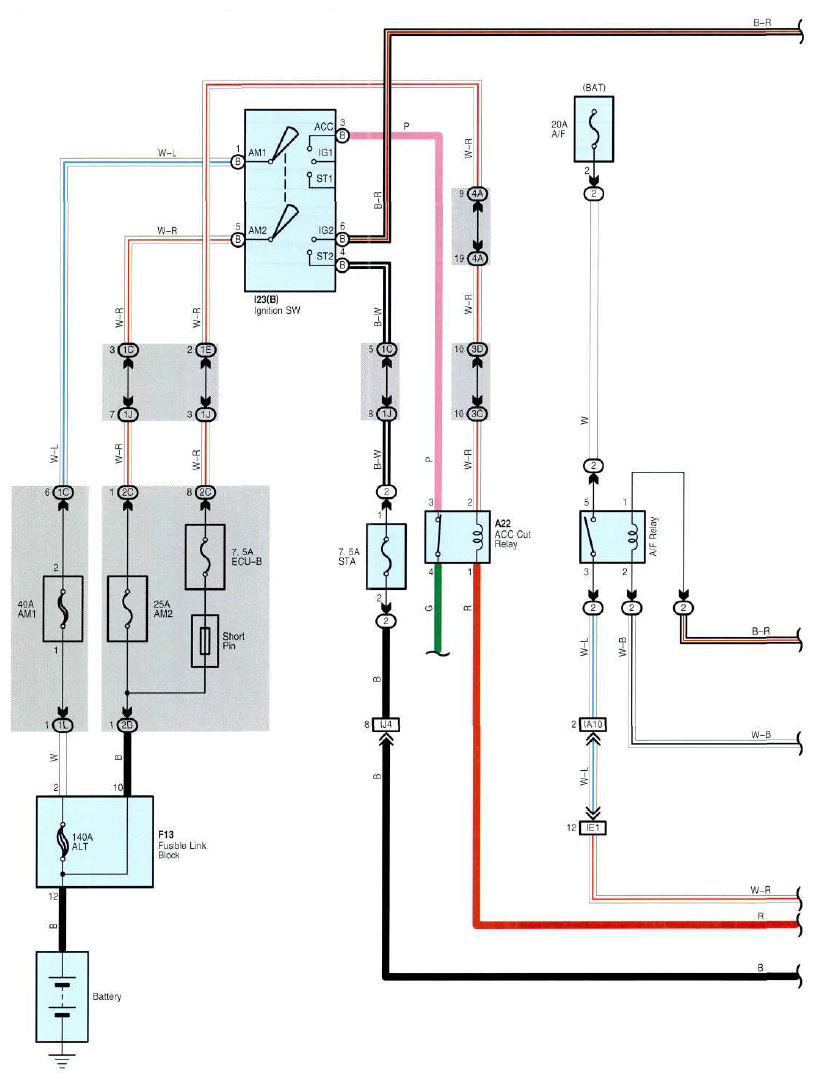

Fig 8: Engine Control System Wiring Diagram (Double Cab; 8 Of 10)

Fig 9: Engine Control System Wiring Diagram (Double Cab; 9 Of 10)

Fig 10: Engine Control System Wiring Diagram (Double Cab; 10 Of 10)
