Door Lock Control with DRL (Access/Standard Cab): Notes

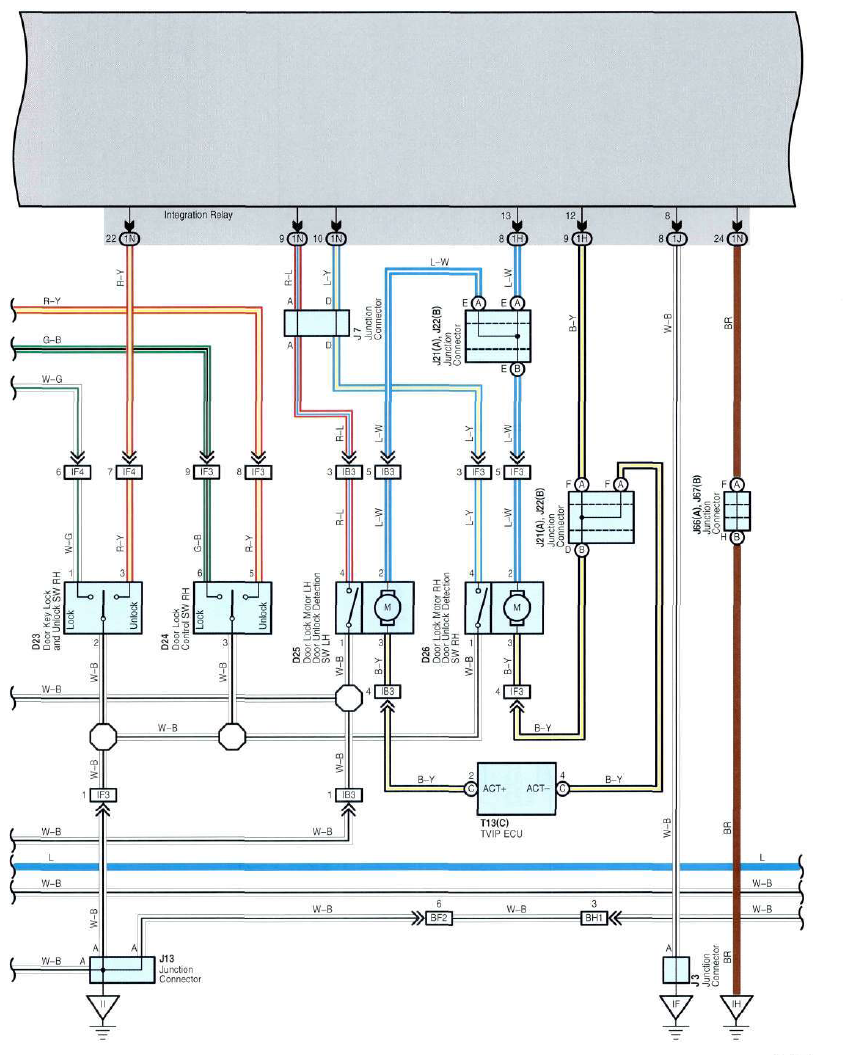

Fig 1: Door Lock Control With DRL System Wiring Diagram (Access/Standard Cab; 1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

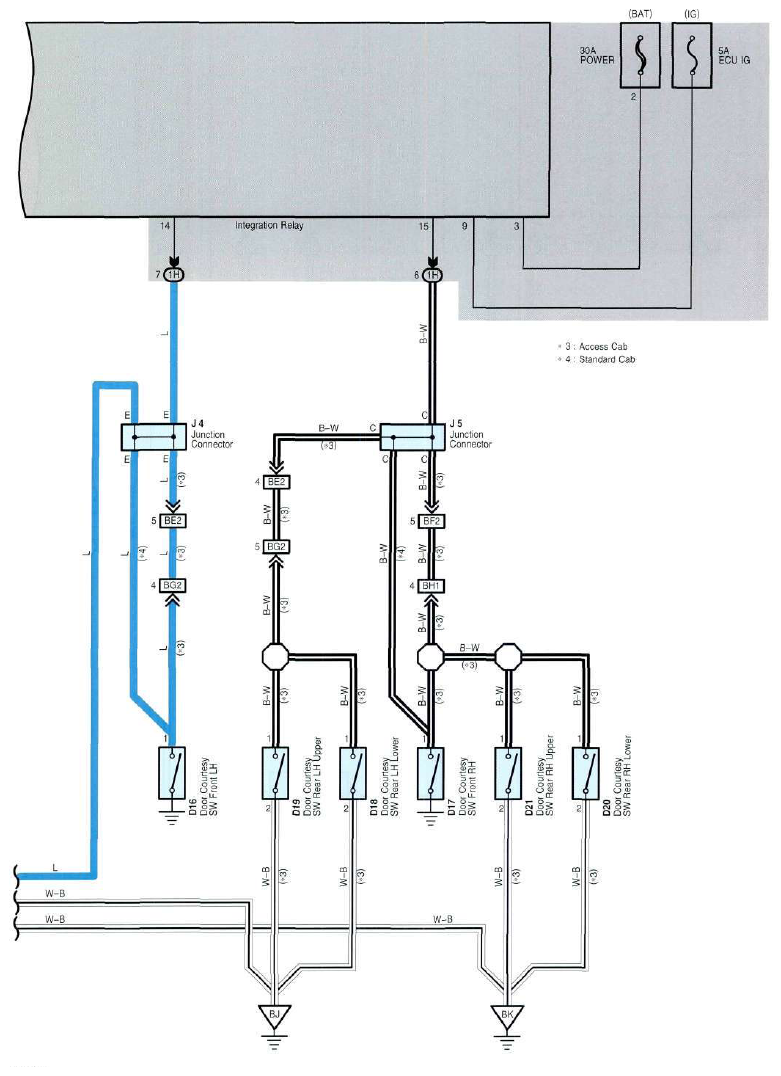

Fig 2: Door Lock Control With DRL System Wiring Diagram (Access/Standard Cab; 2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

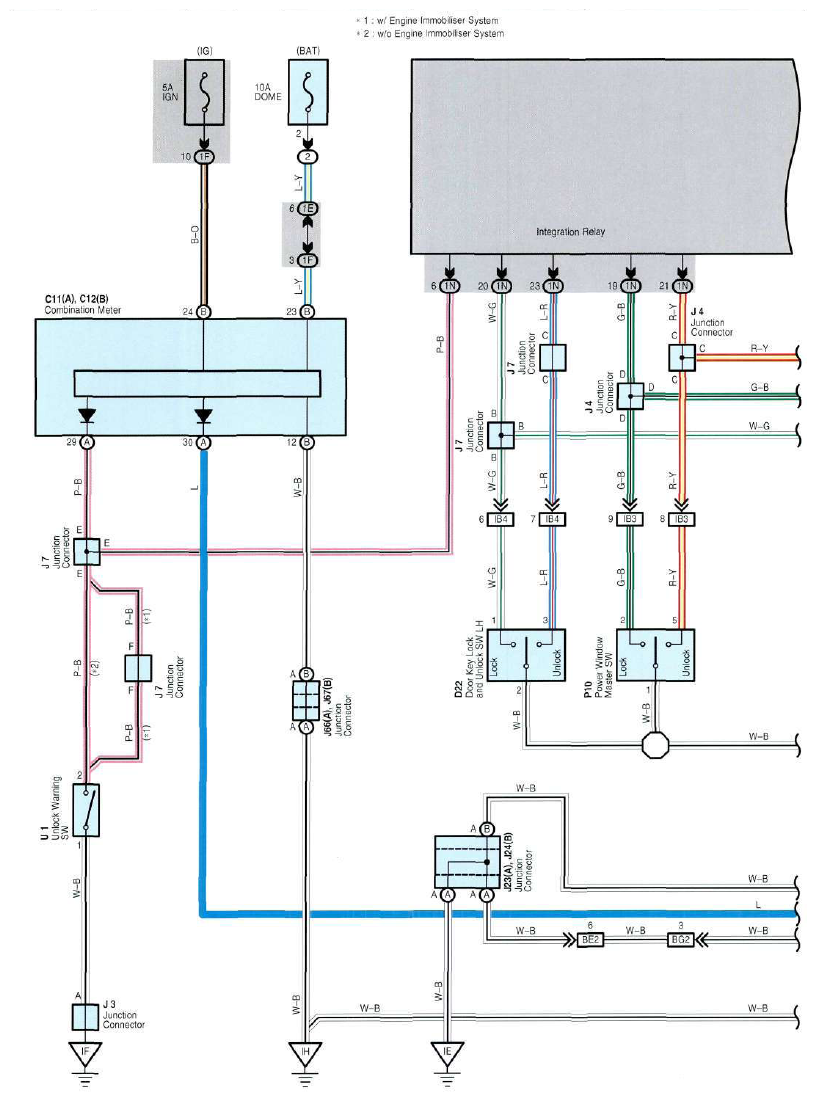

Fig 3: Door Lock Control With DRL System Wiring Diagram (Access/Standard Cab; 3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
