Cruise Control for 1GR-FE (Access/Standard Cab): Notes

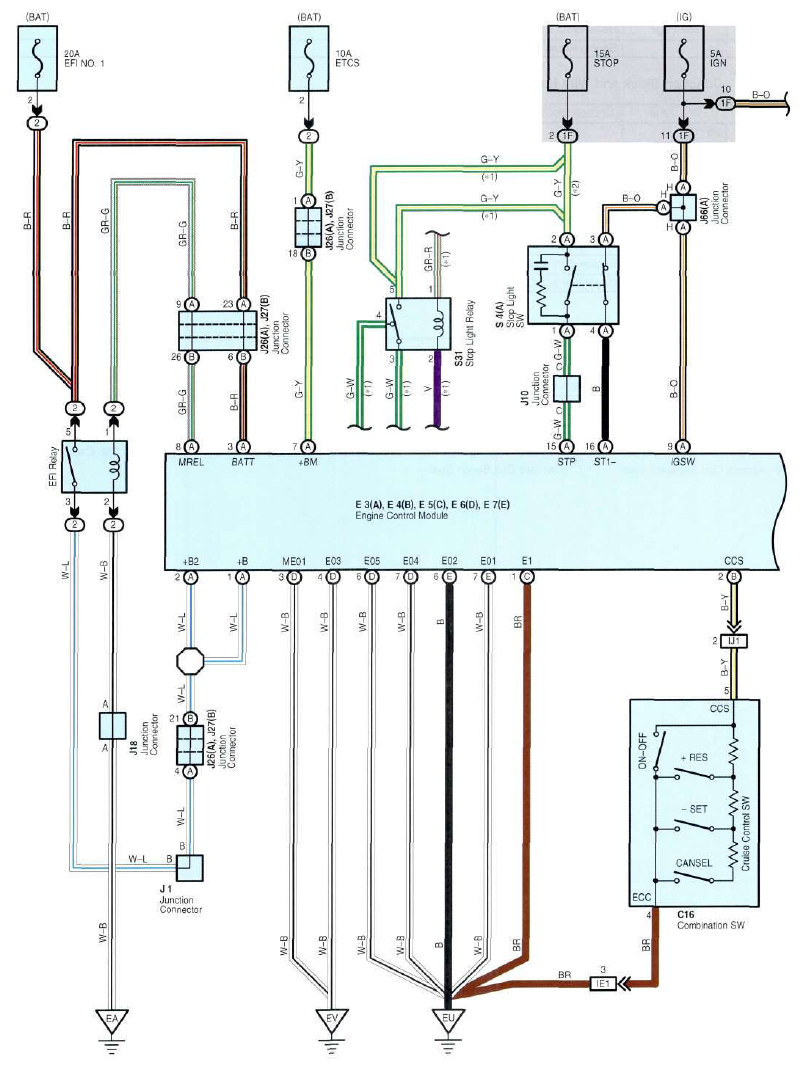

Fig 1: Cruise Control System Wiring Diagram (Access/Standard Cab : 1GR-FE; 1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

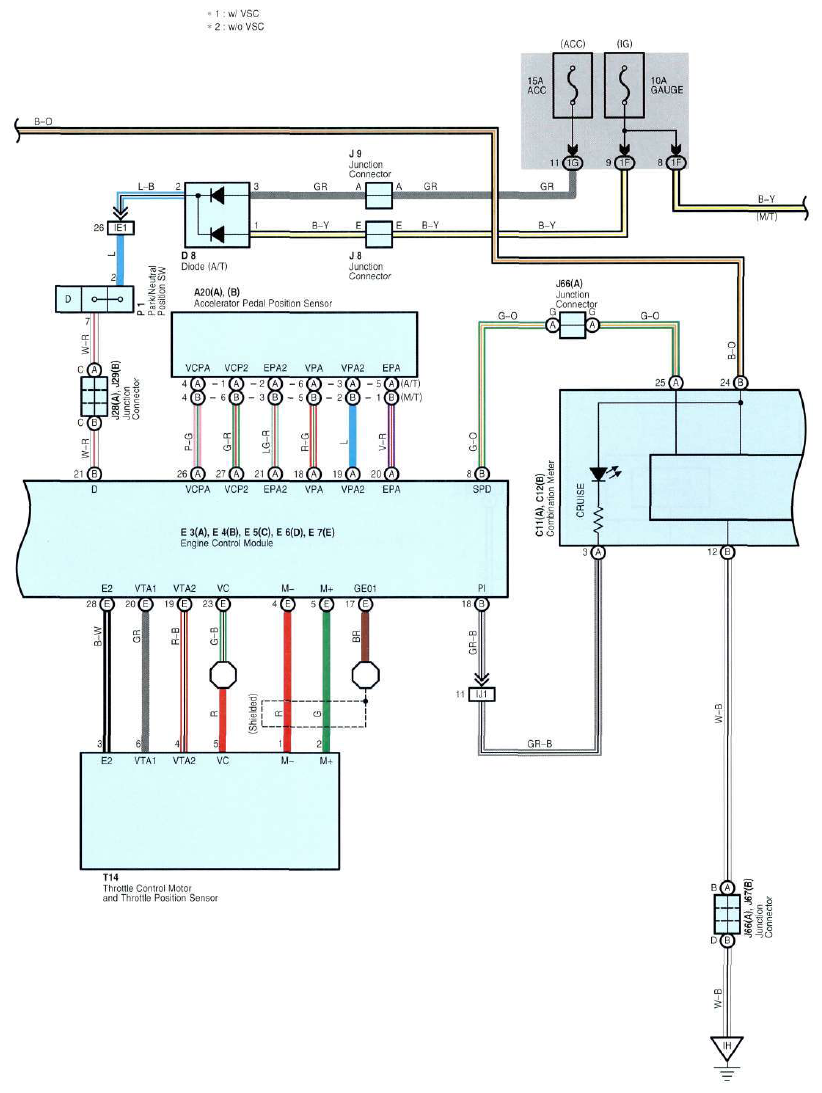

Fig 2: Cruise Control System Wiring Diagram (Access/Standard Cab : 1GR-FE; 2 Of 3)

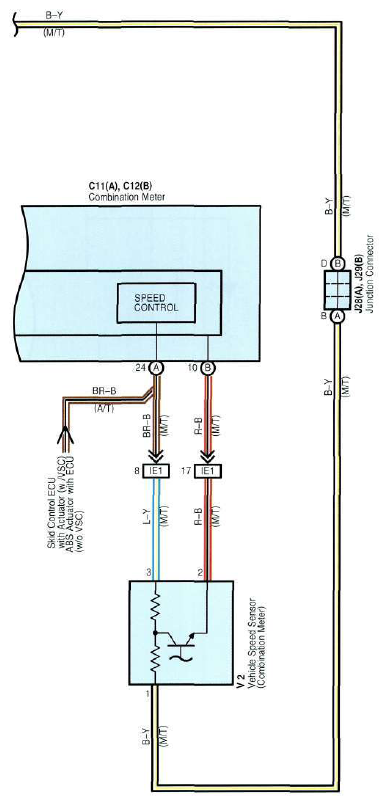

Fig 3: Cruise Control System Wiring Diagram (Access/Standard Cab : 1GR-FE; 3 Of 3)
