Cruise Control (Double Cab): Notes

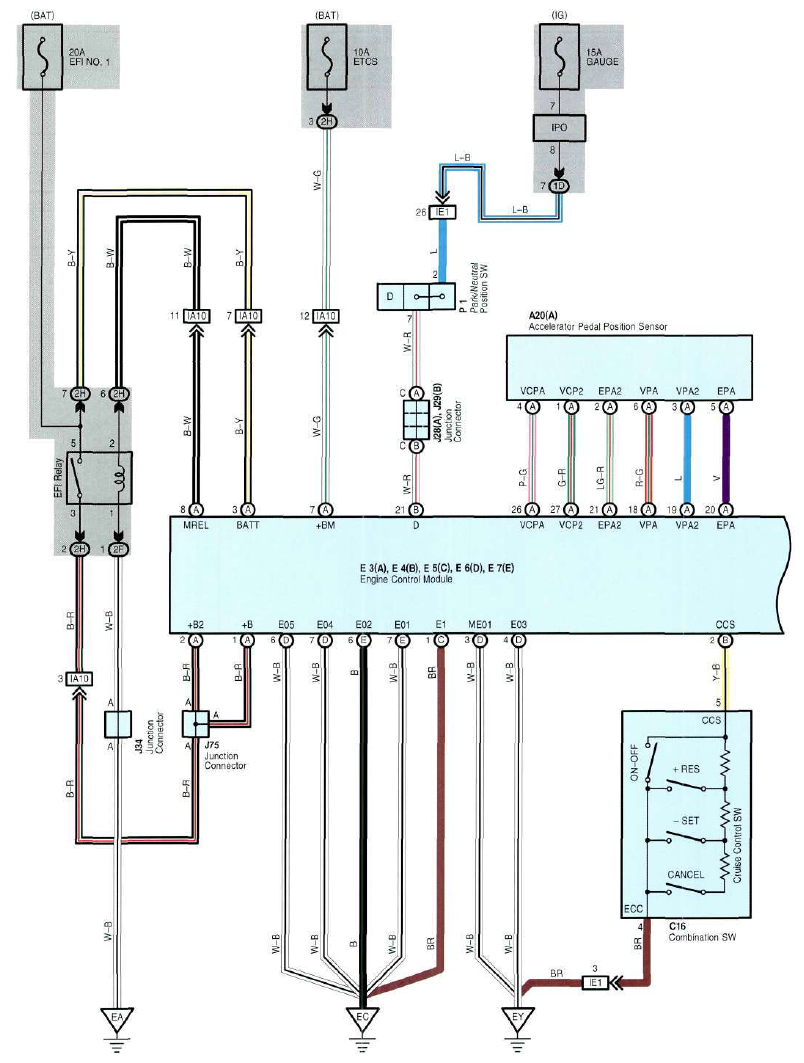

Fig 1: Cruise Control System Wiring Diagram (Double Cab; 1 Of 2)
G08864516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

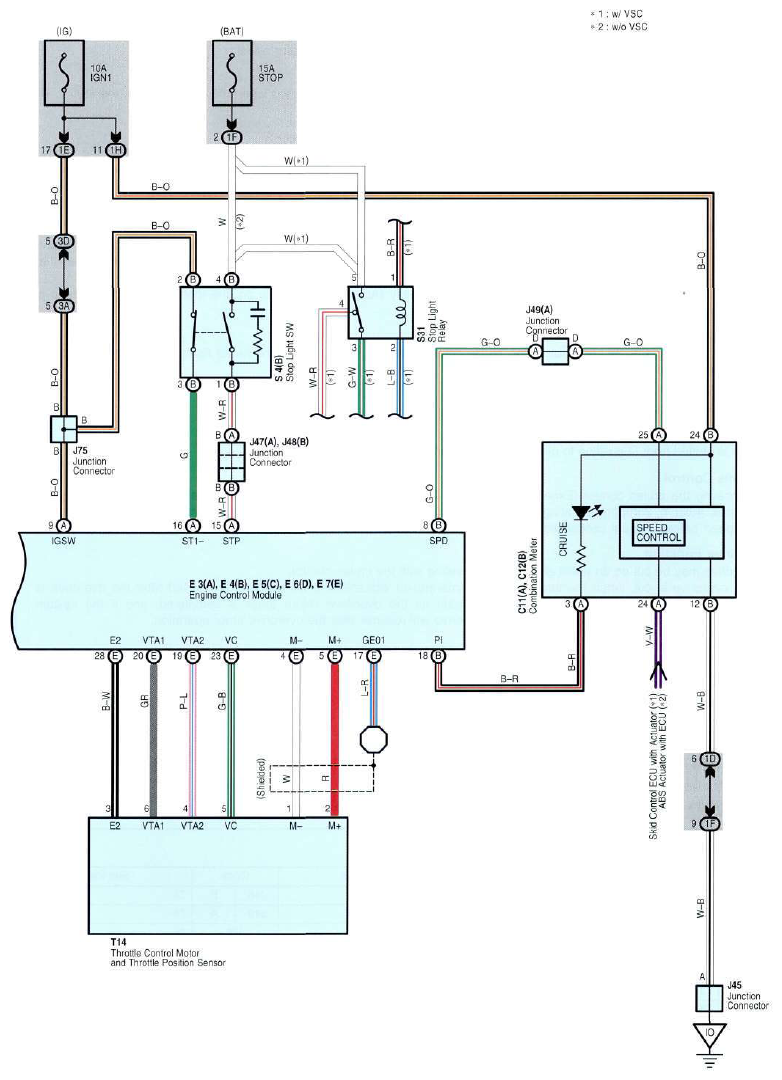

Fig 2: Cruise Control System Wiring Diagram (Double Cab; 2 Of 2)
G08864517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
