Combination Meter (Access/Standard Cab): Notes

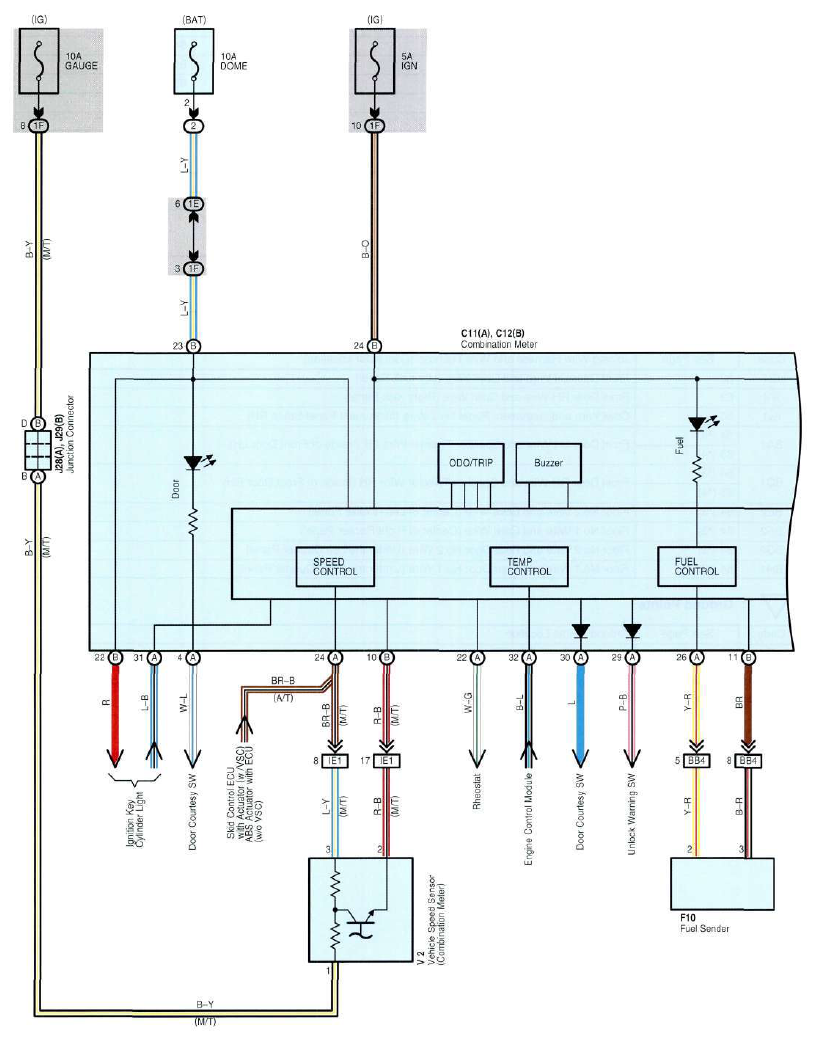

Fig 1: Combination Meter System Wiring Diagram (Access/Standard Cab; 1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

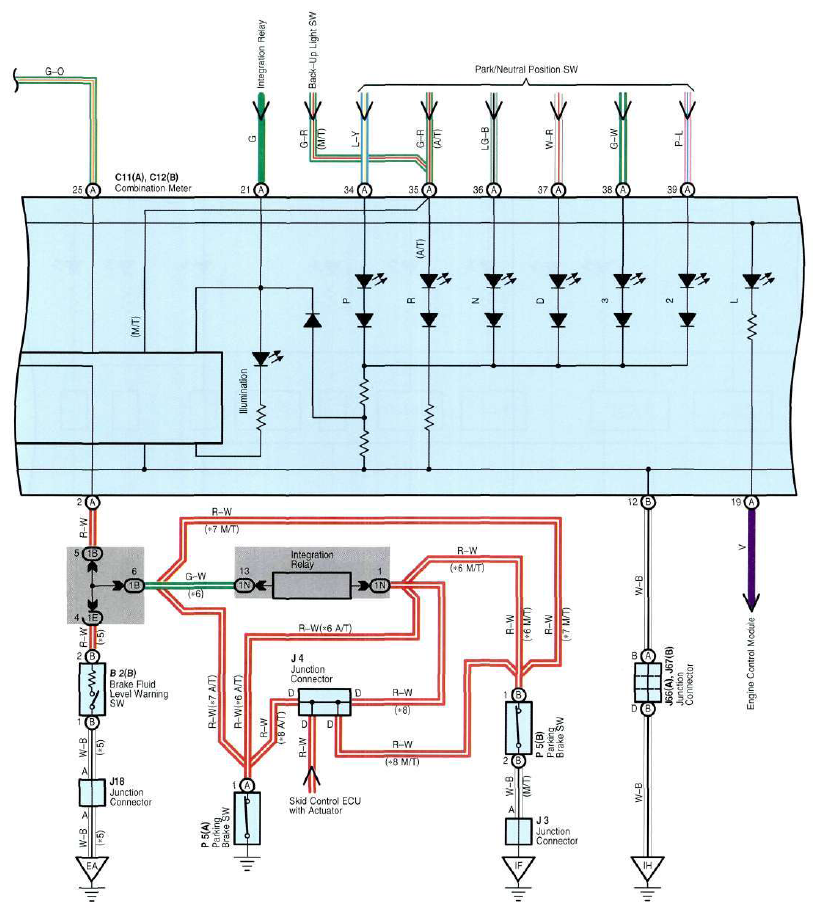

Fig 2: Combination Meter System Wiring Diagram (Access/Standard Cab; 2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

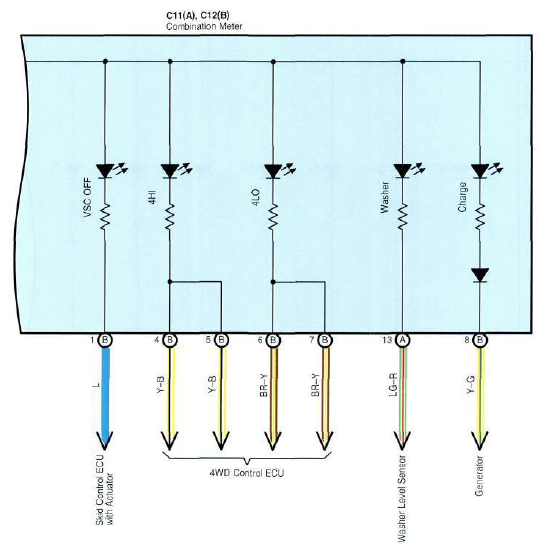

Fig 3: Combination Meter System Wiring Diagram (Access/Standard Cab; 3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

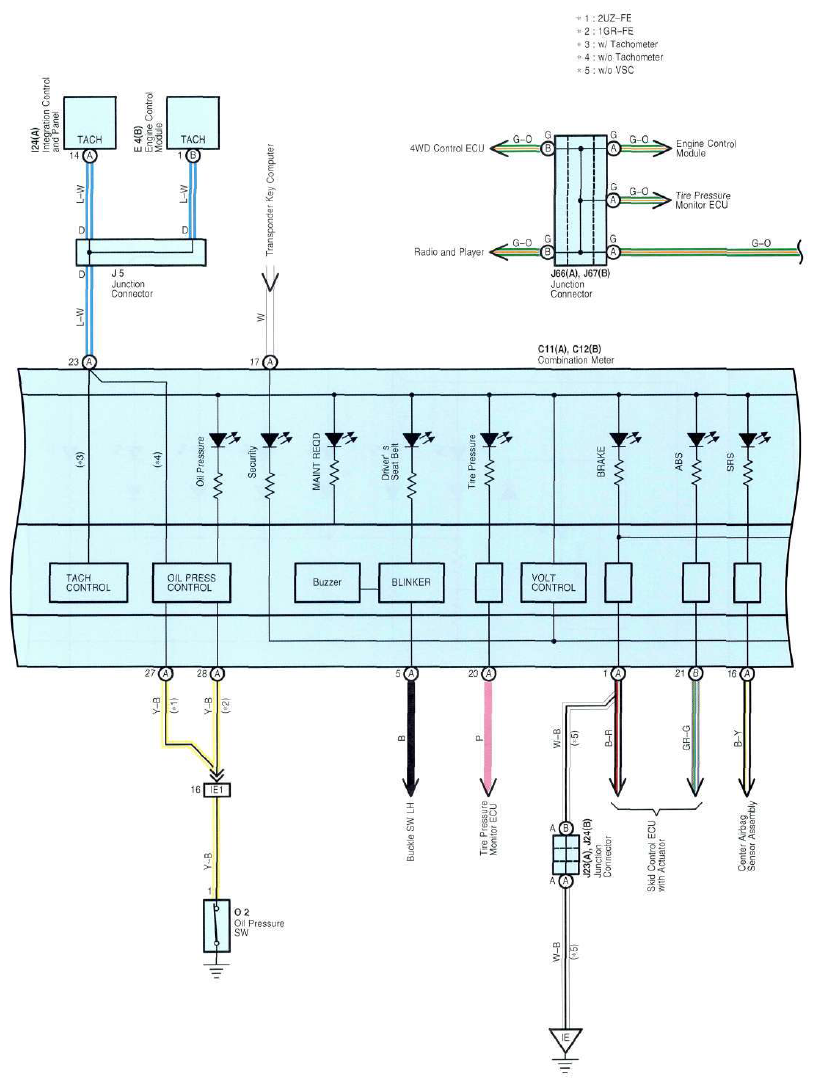

Fig 4: Combination Meter System Wiring Diagram (Access/Standard Cab; 4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

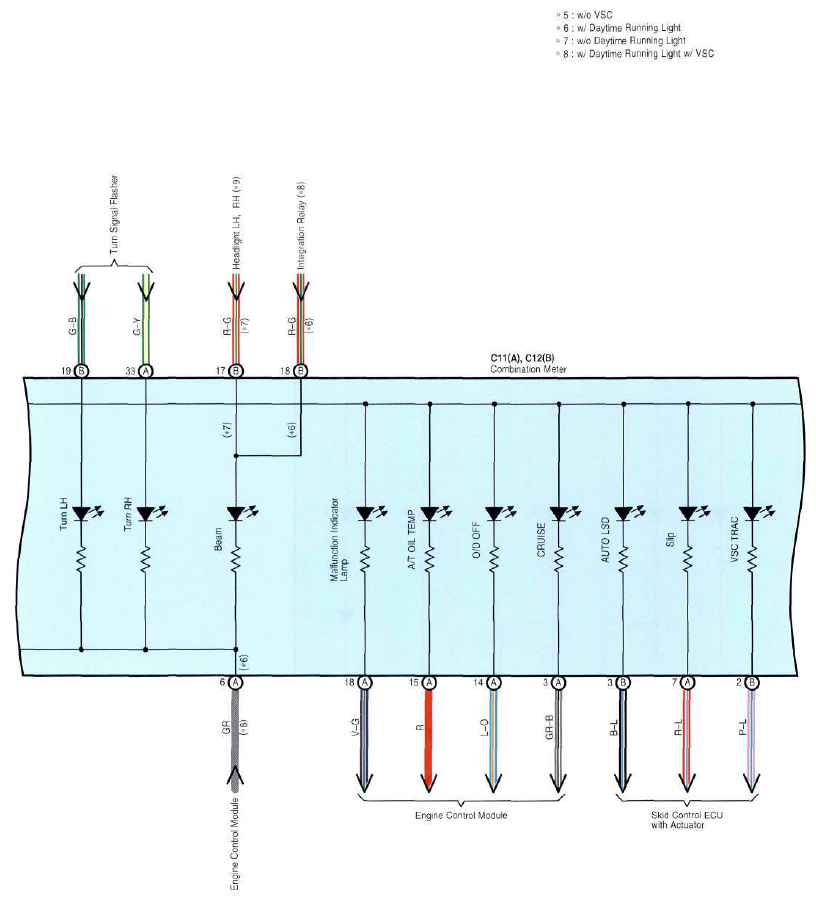

Fig 5: Combination Meter System Wiring Diagram (Access/Standard Cab; 5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
