Clock (Access/Standard Cab): Notes

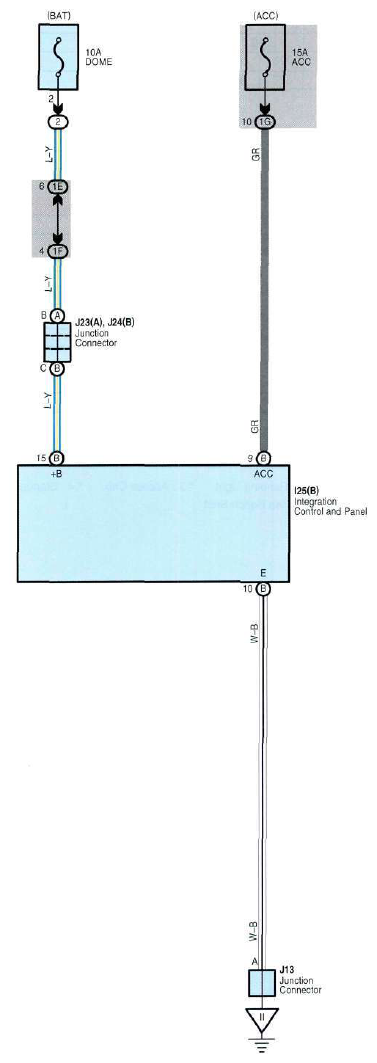

Fig 1: Clock System Wiring Diagram (Access/Standard Cab)

G08864415

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
