Center Cluster Integration Control System (Double Cab): Notes

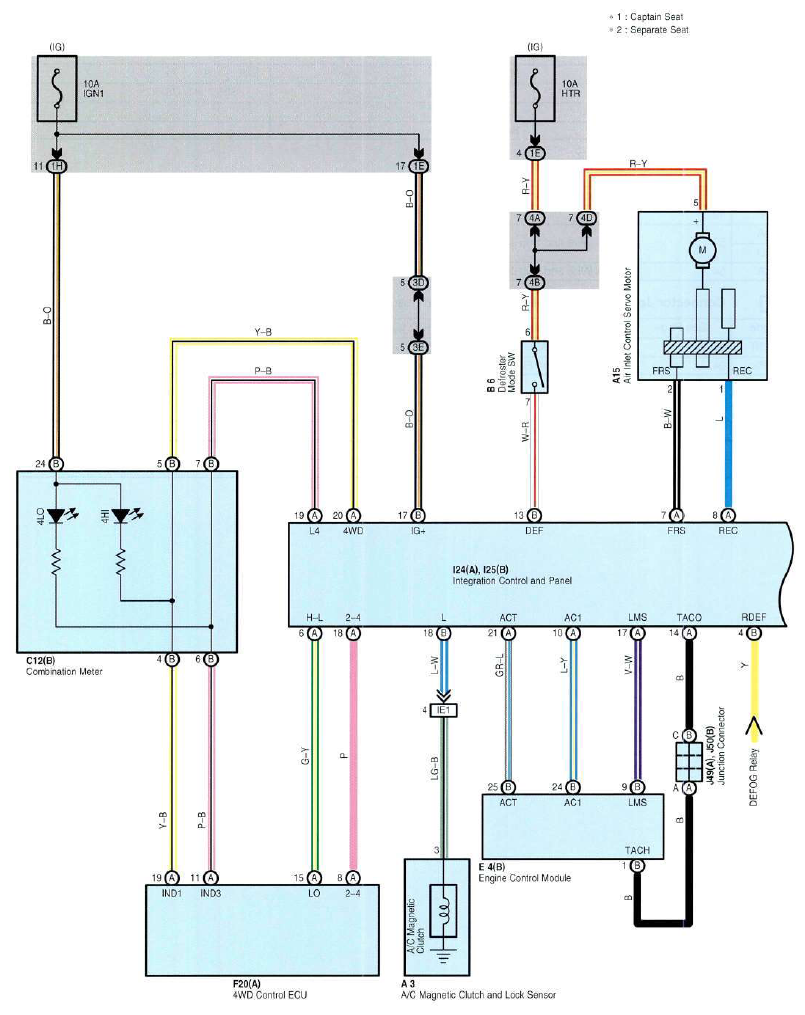

Fig 1: Center Cluster Integration Control System Wiring Diagram (Double Cab; 1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

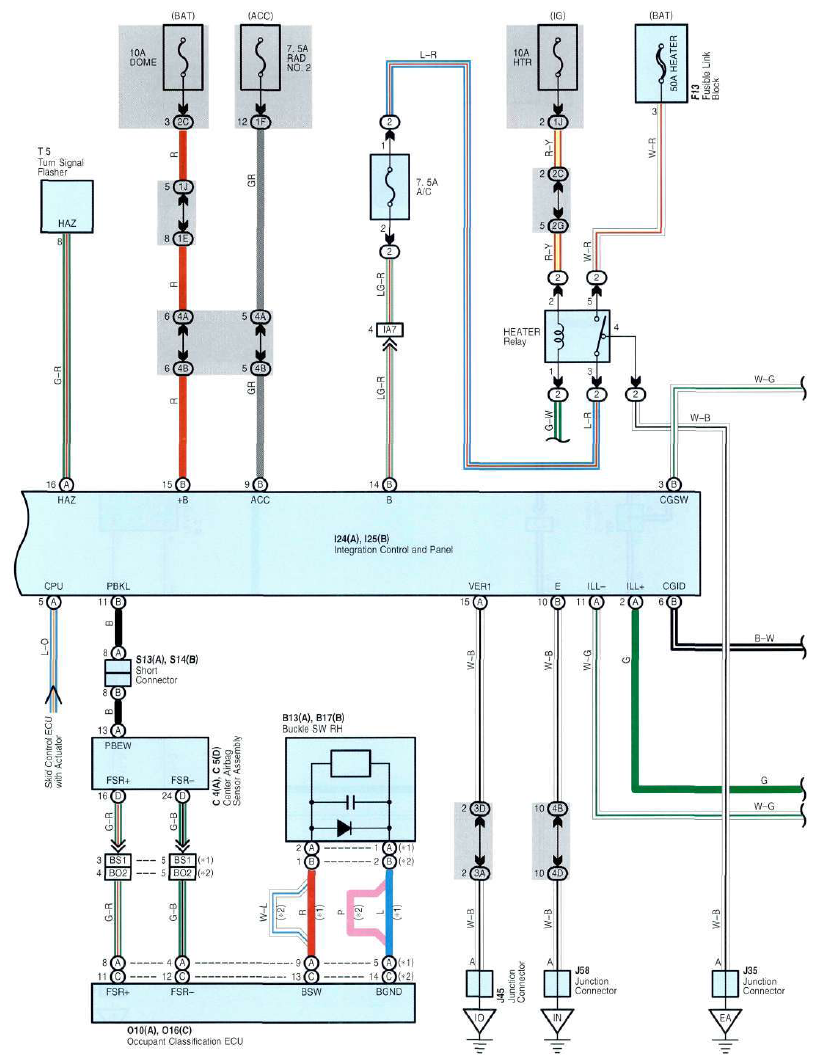

Fig 2: Center Cluster Integration Control System Wiring Diagram (Double Cab; 2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

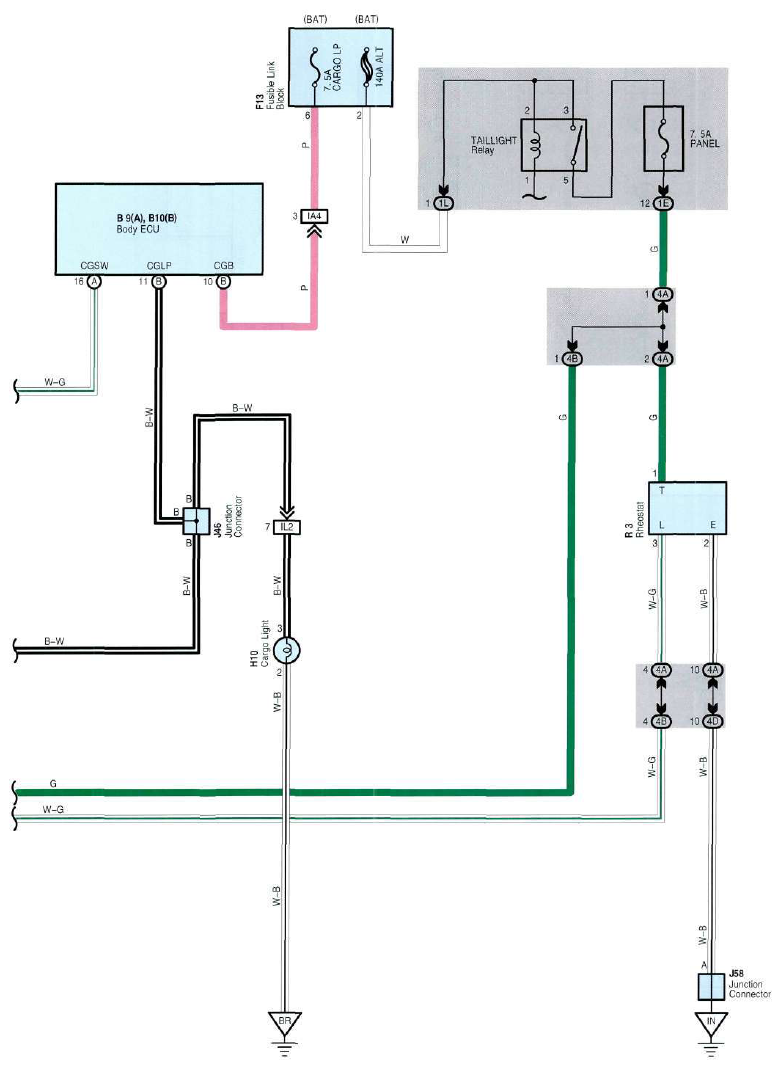

Fig 3: Center Cluster Integration Control System Wiring Diagram (Double Cab; 3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
