Center Cluster Integration Control System (Access/Standard Cab): Notes

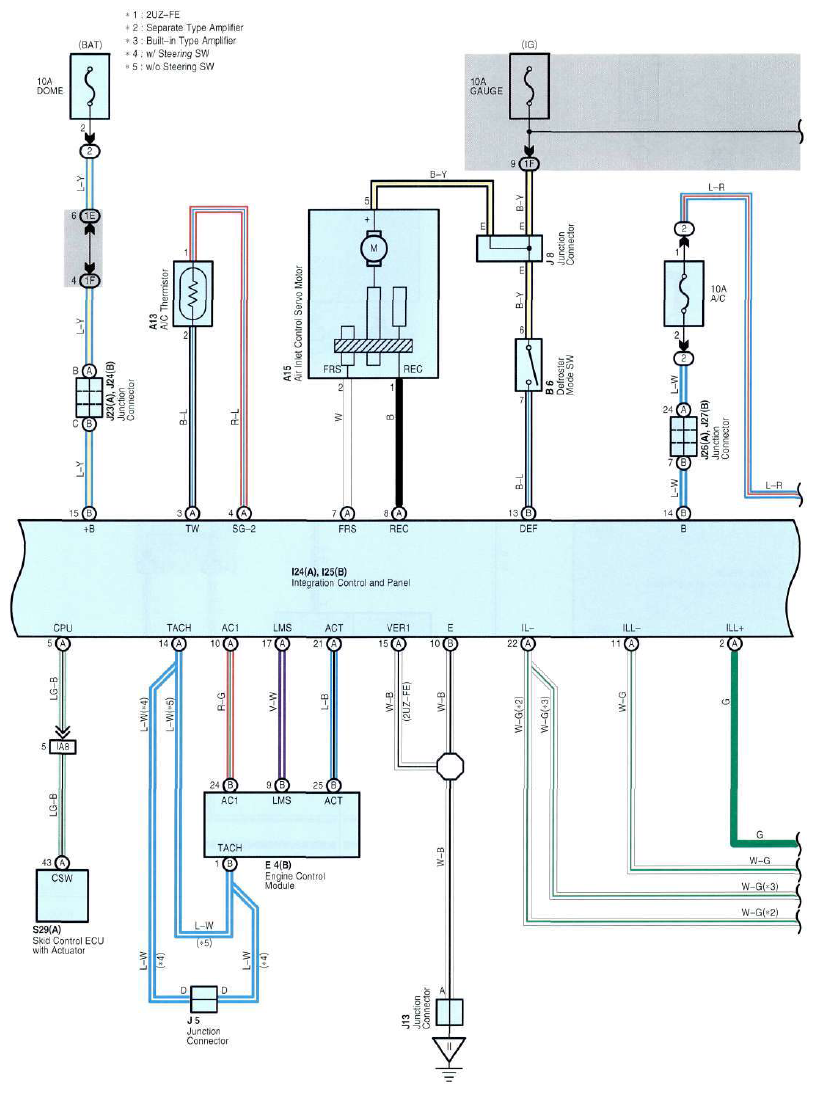

Fig 1: Center Cluster Integration Control System Wiring Diagram (Access/Standard Cab; 1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

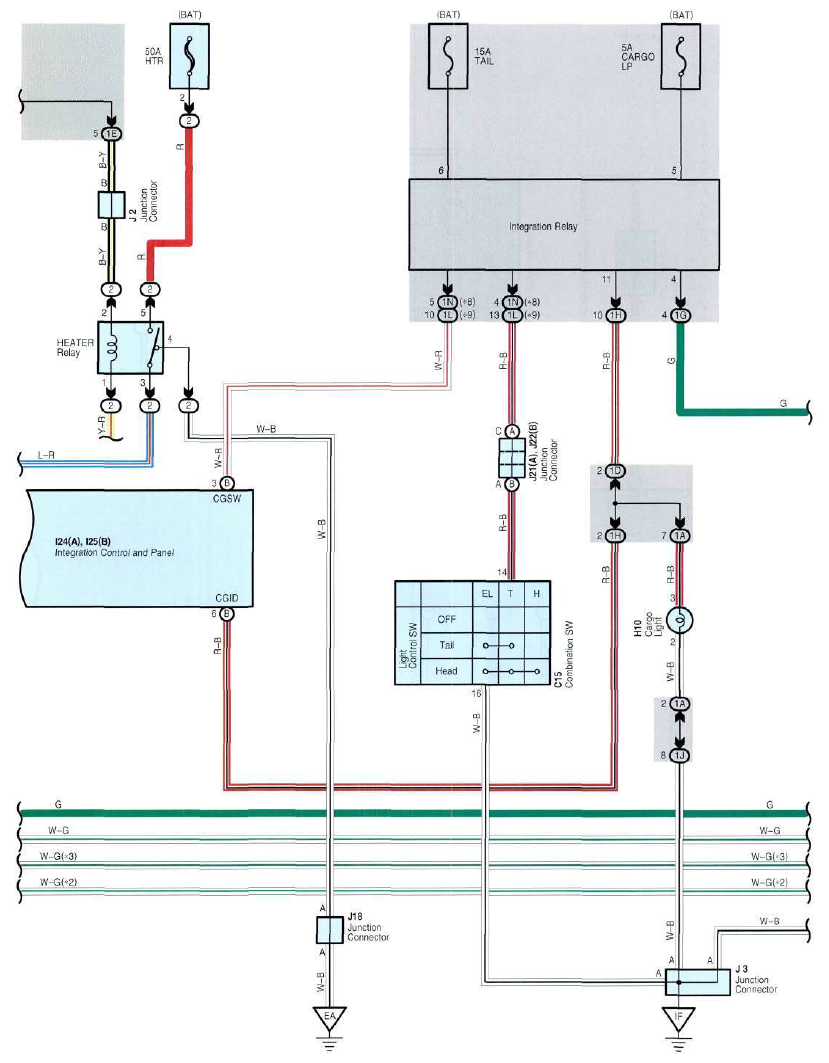

Fig 2: Center Cluster Integration Control System Wiring Diagram (Access/Standard Cab; 2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

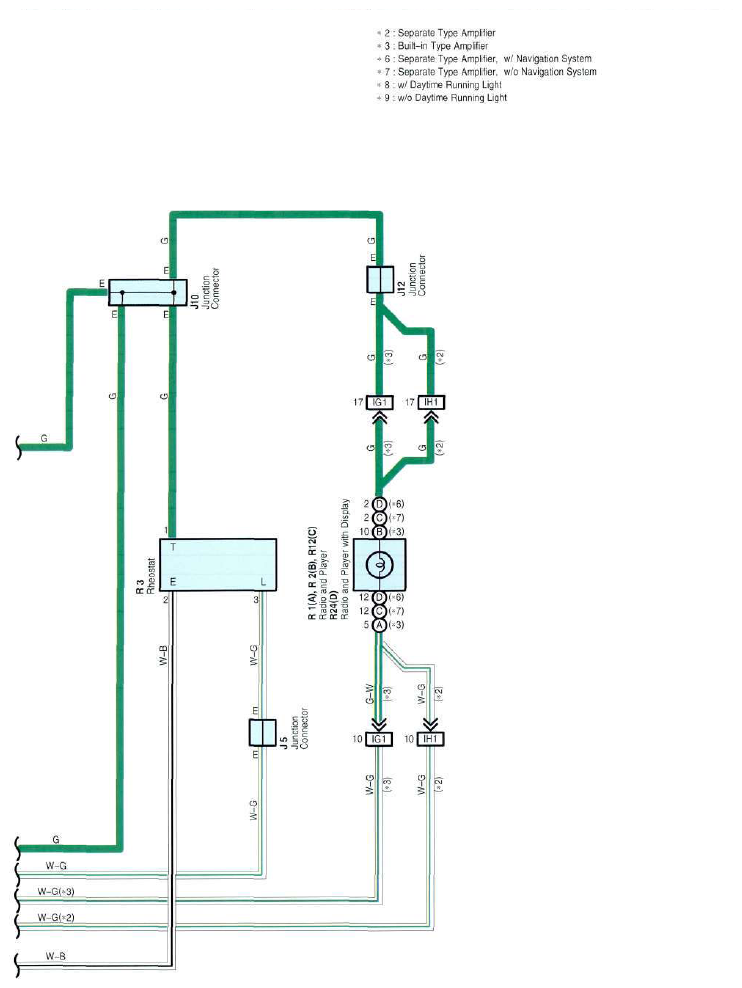

Fig 3: Center Cluster Integration Control System Wiring Diagram (Access/Standard Cab; 3 Of 4)

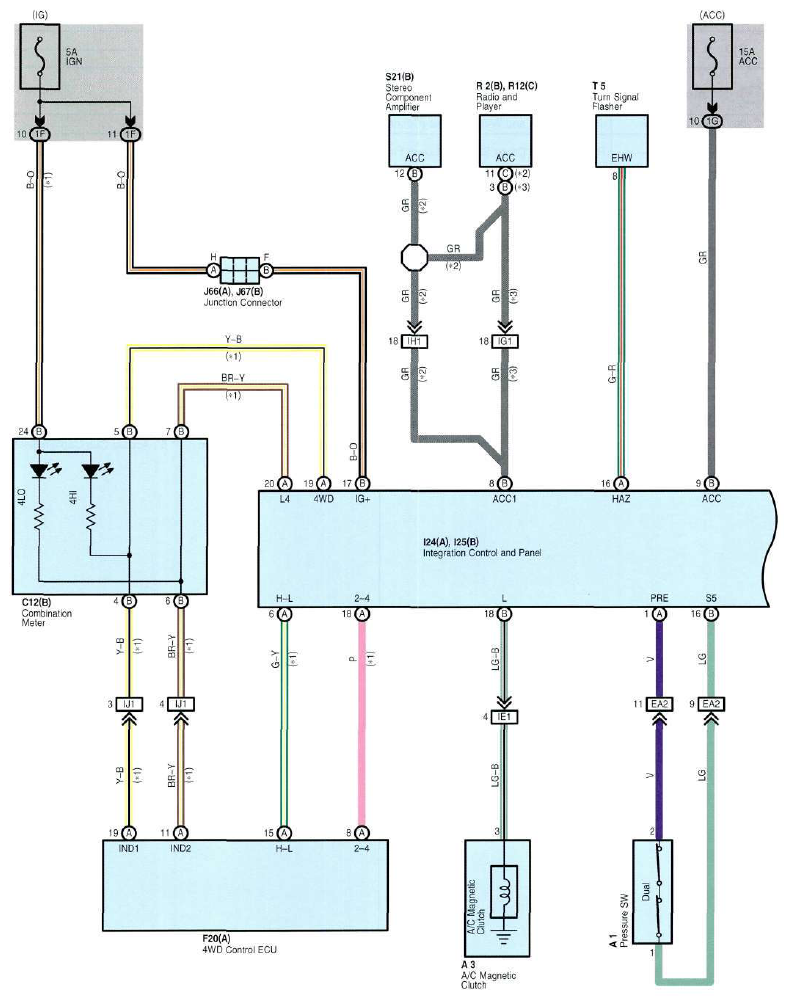

Fig 4: Center Cluster Integration Control System Wiring Diagram (Access/Standard Cab; 4 Of 4)
