Cargo Light (Access/Standard Cab): Notes

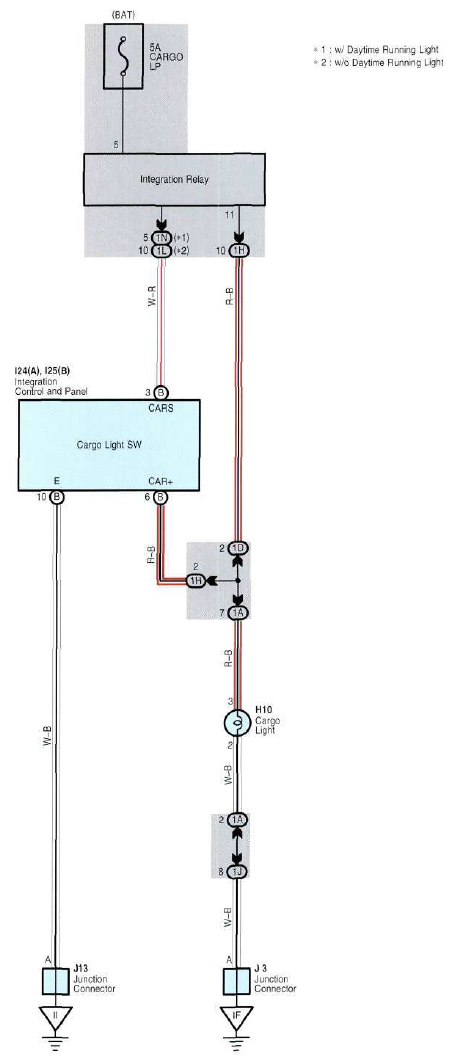

Fig 1: Cargo Light System Wiring Diagram (Access/Standard Cab)

G08864365

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
