Back-Up Light (Double Cab): Notes

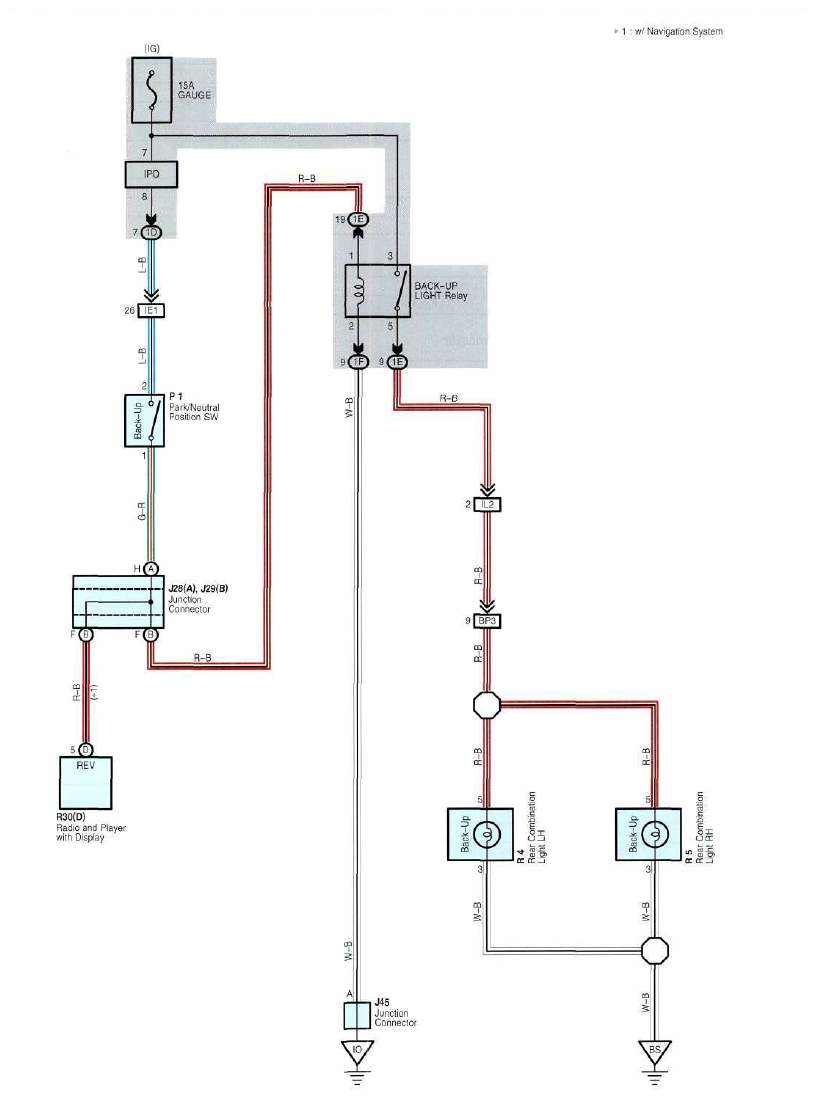

Fig 1: Back-Up Light System Wiring Diagram (Double Cab)

G08864467

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
