Back-Up Light (Access/Standard Cab): Notes

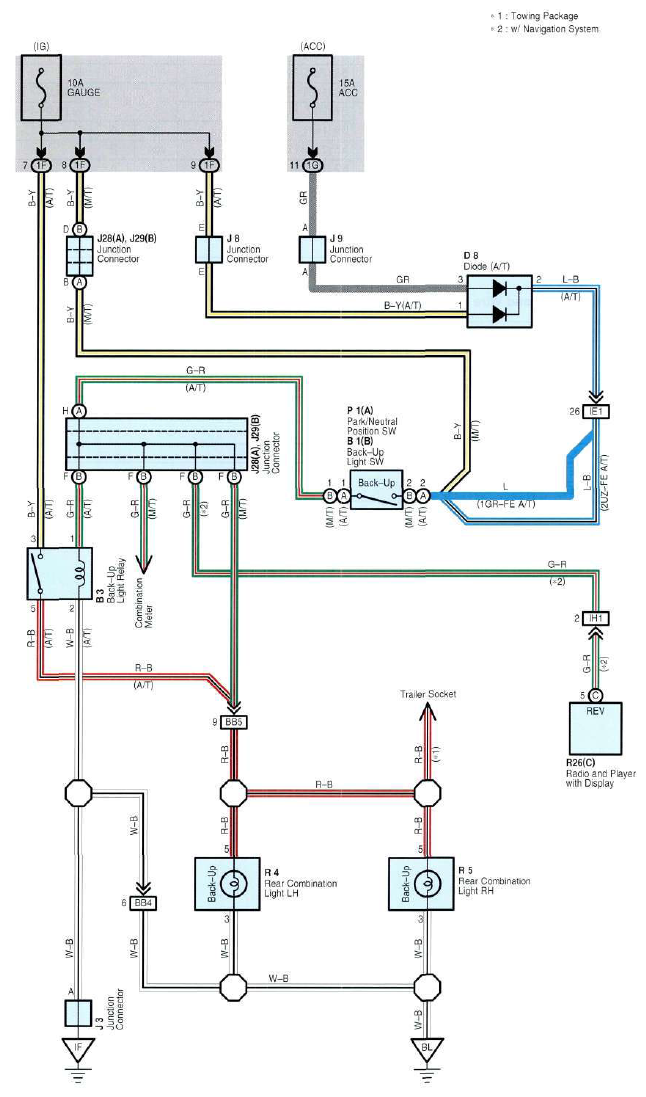

Fig 1: Back-Up Light System Wiring Diagram (Access/Standard Cab)

G08864352

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
