Audio System with RSES (Double Cab): Notes

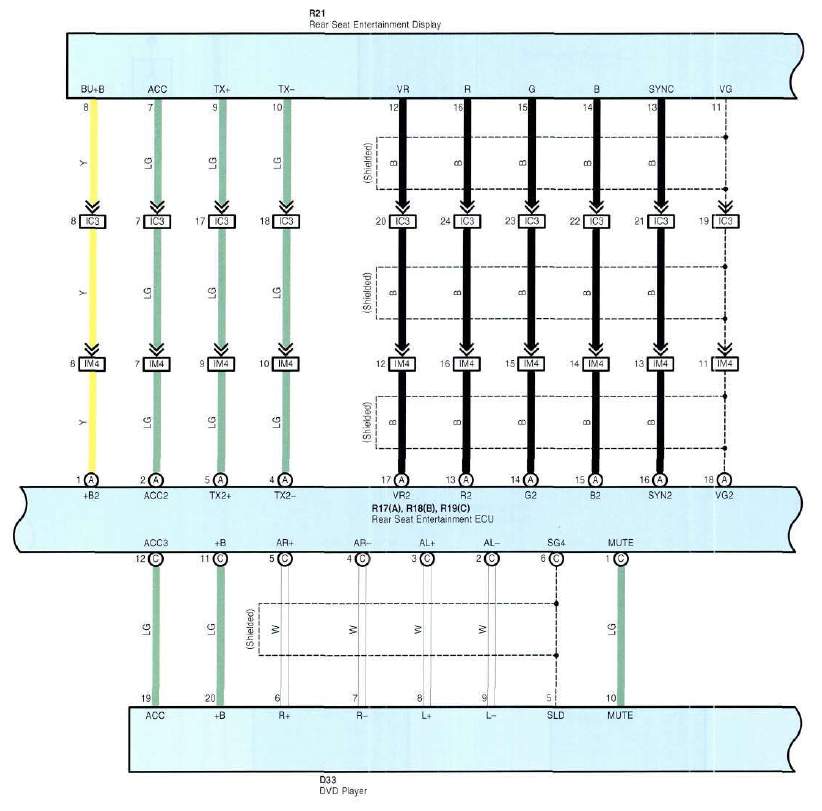

Fig 1: Audio With RSES System Wiring Diagram (Double Cab; 1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

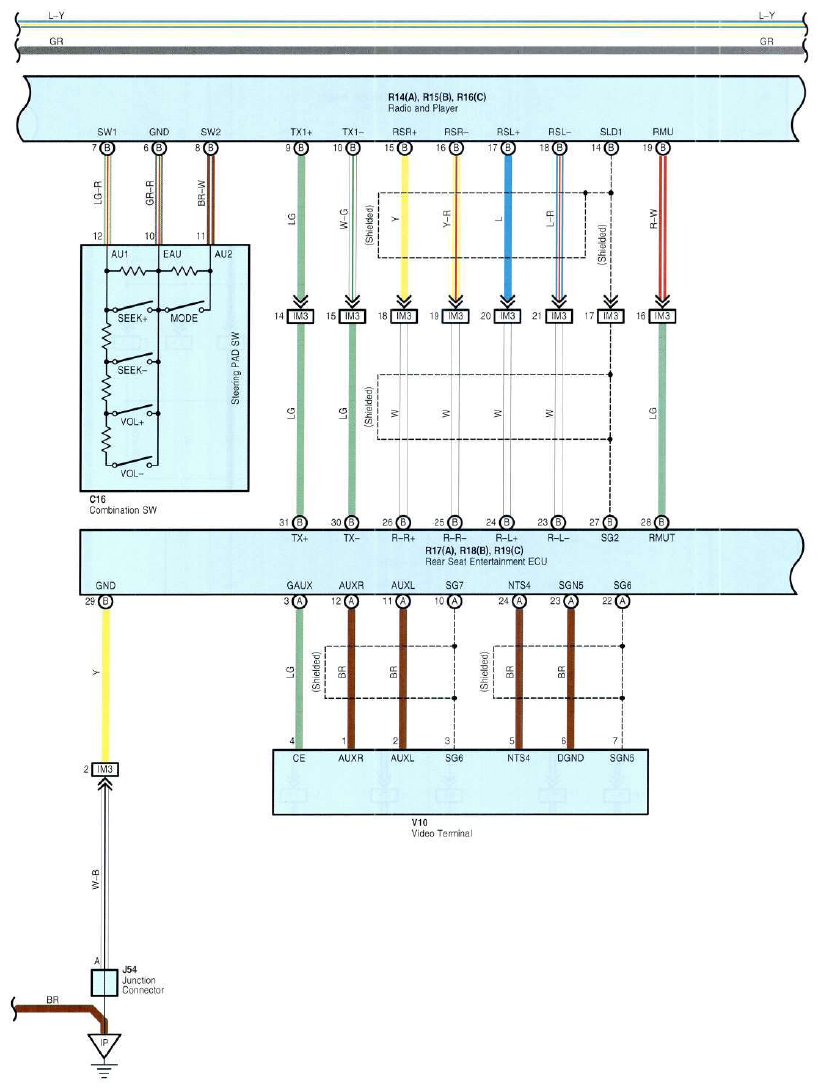

Fig 2: Audio With RSES System Wiring Diagram (Double Cab; 2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

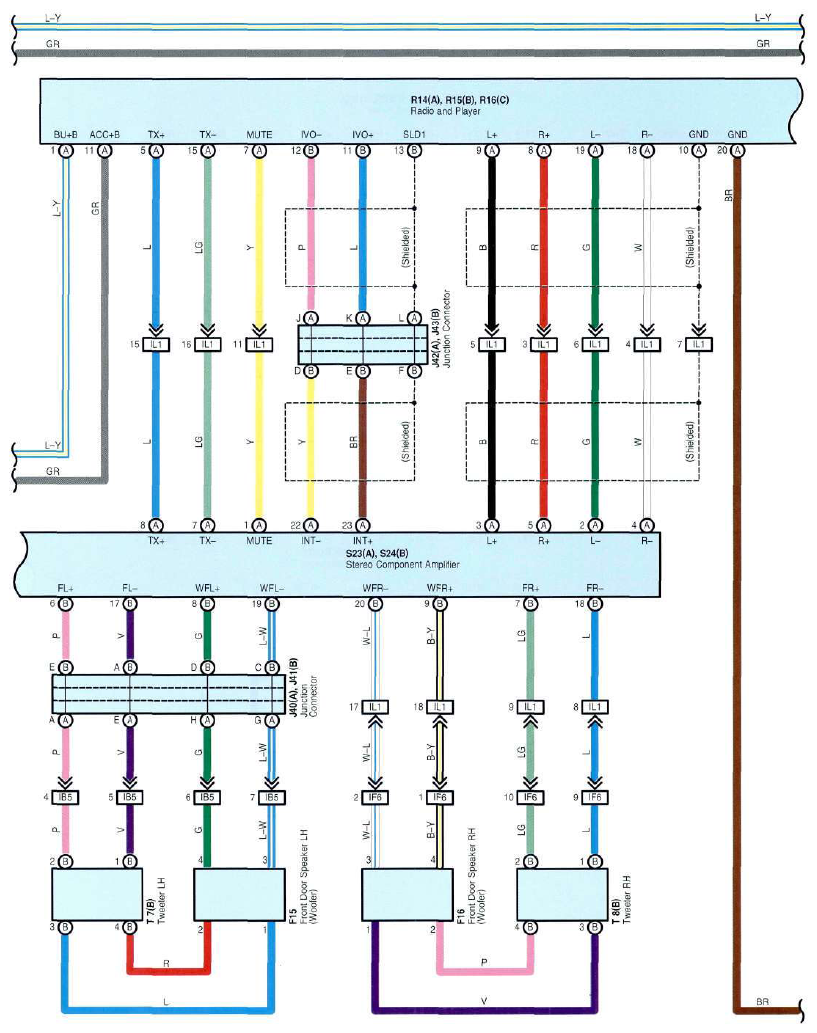

Fig 3: Audio With RSES System Wiring Diagram (Double Cab; 3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

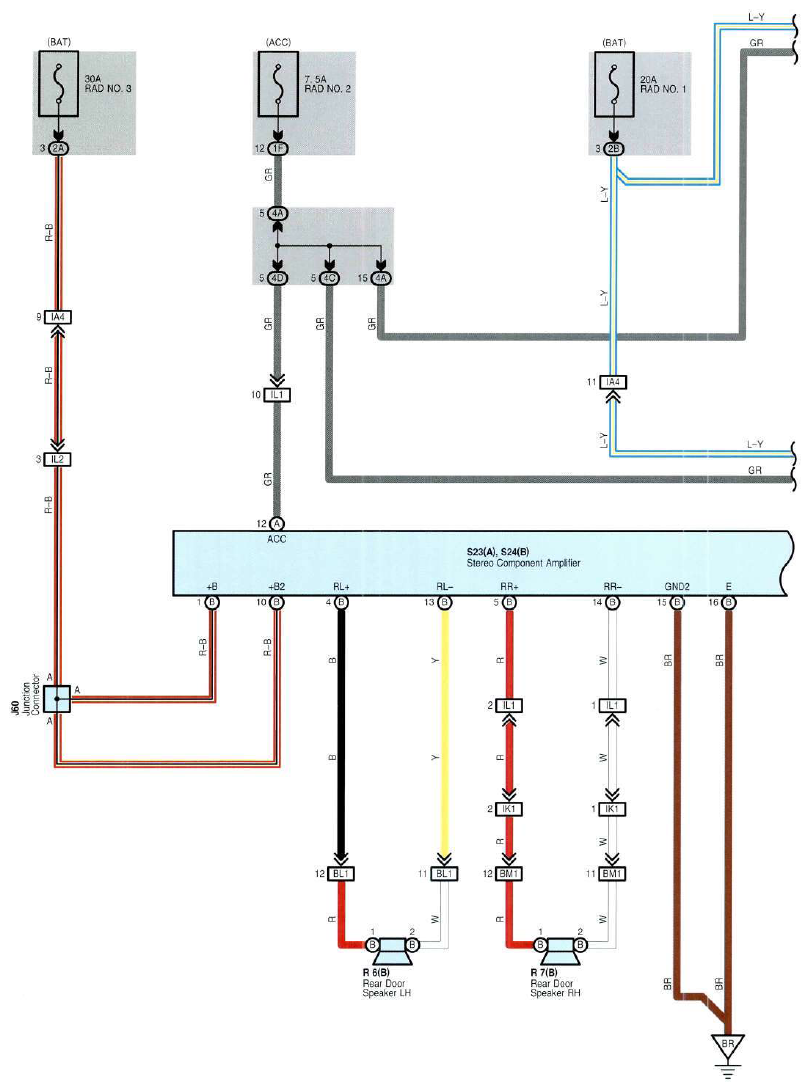

Fig 4: Audio With RSES System Wiring Diagram (Double Cab; 4 Of 6)

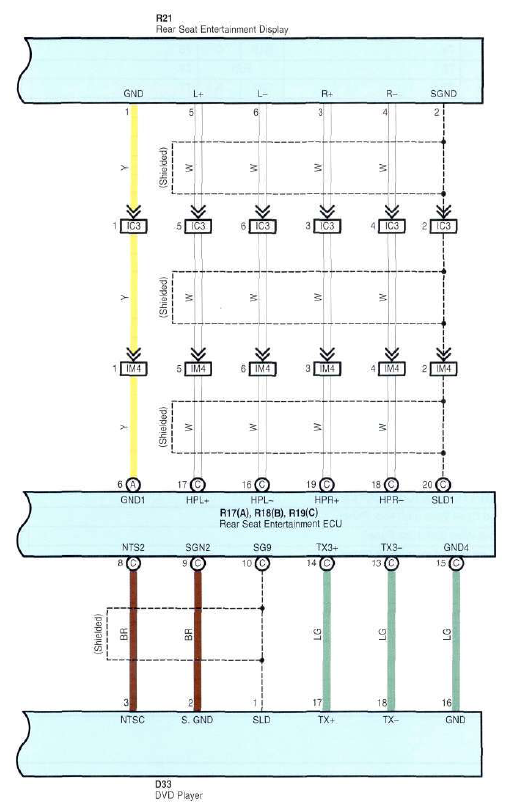

Fig 5: Audio With RSES System Wiring Diagram (Double Cab; 5 Of 6)

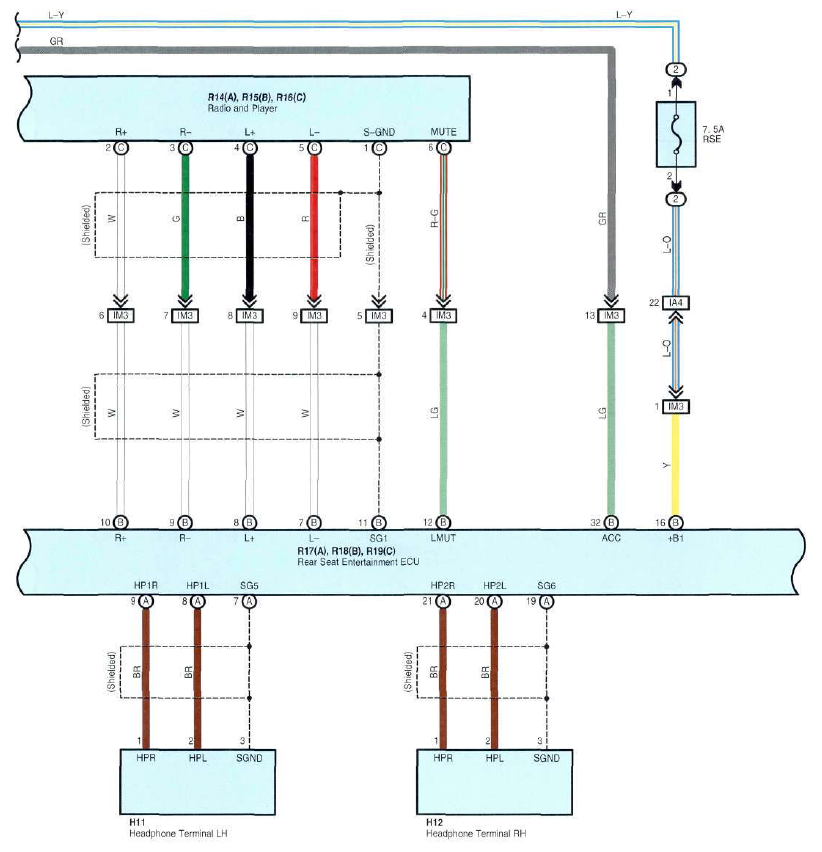

Fig 6: Audio With RSES System Wiring Diagram (Double Cab; 6 Of 6)
