Air Conditioning (Access/Standard Cab): Notes

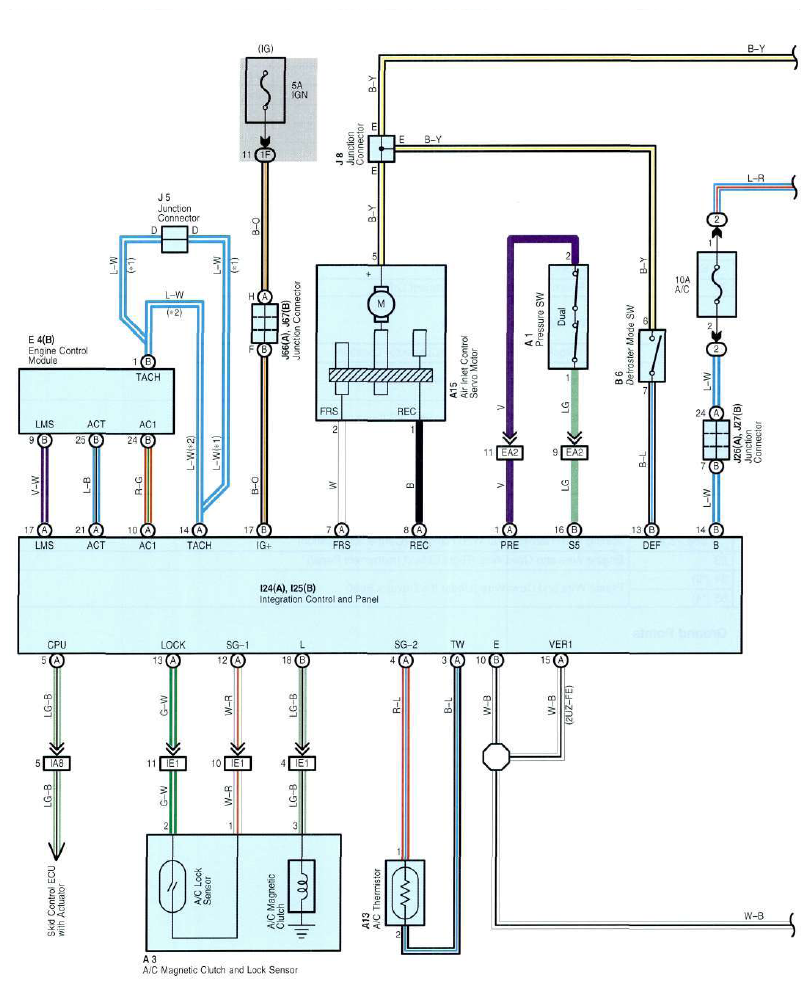

Fig 1: Air Conditioning System Wiring Diagram (Access/Standard Cab; 1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

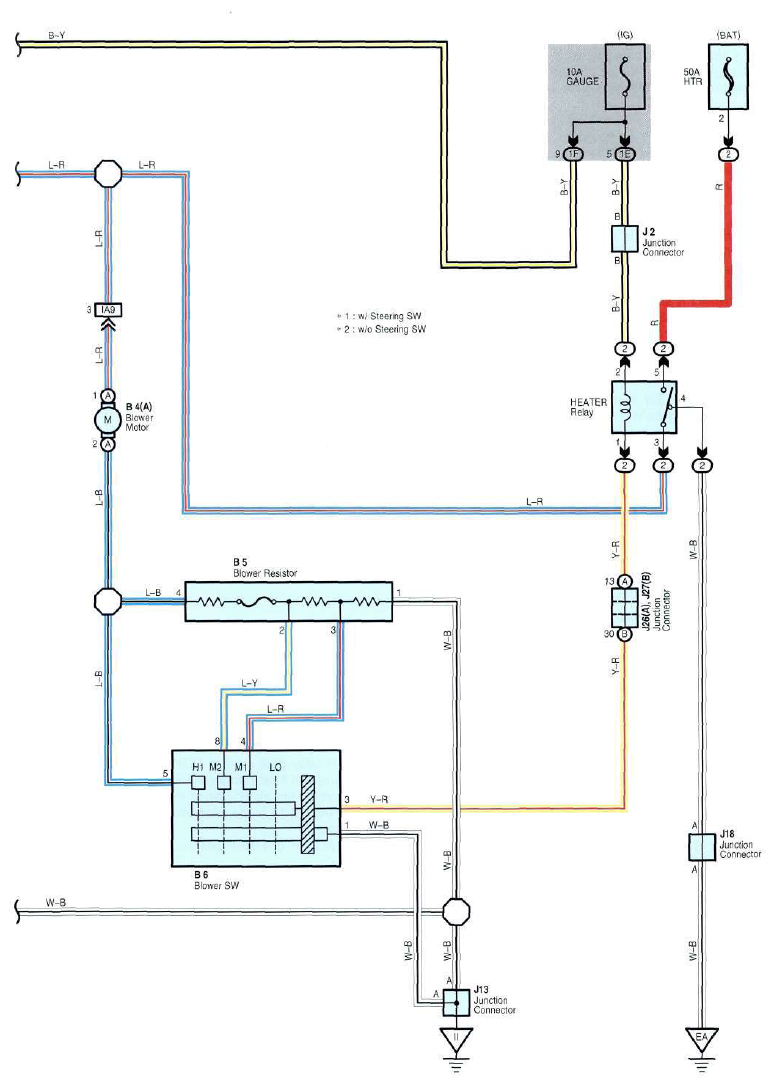

Fig 2: Air Conditioning System Wiring Diagram (Access/Standard Cab; 2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
