ABS without VSC (Double Cab): Notes

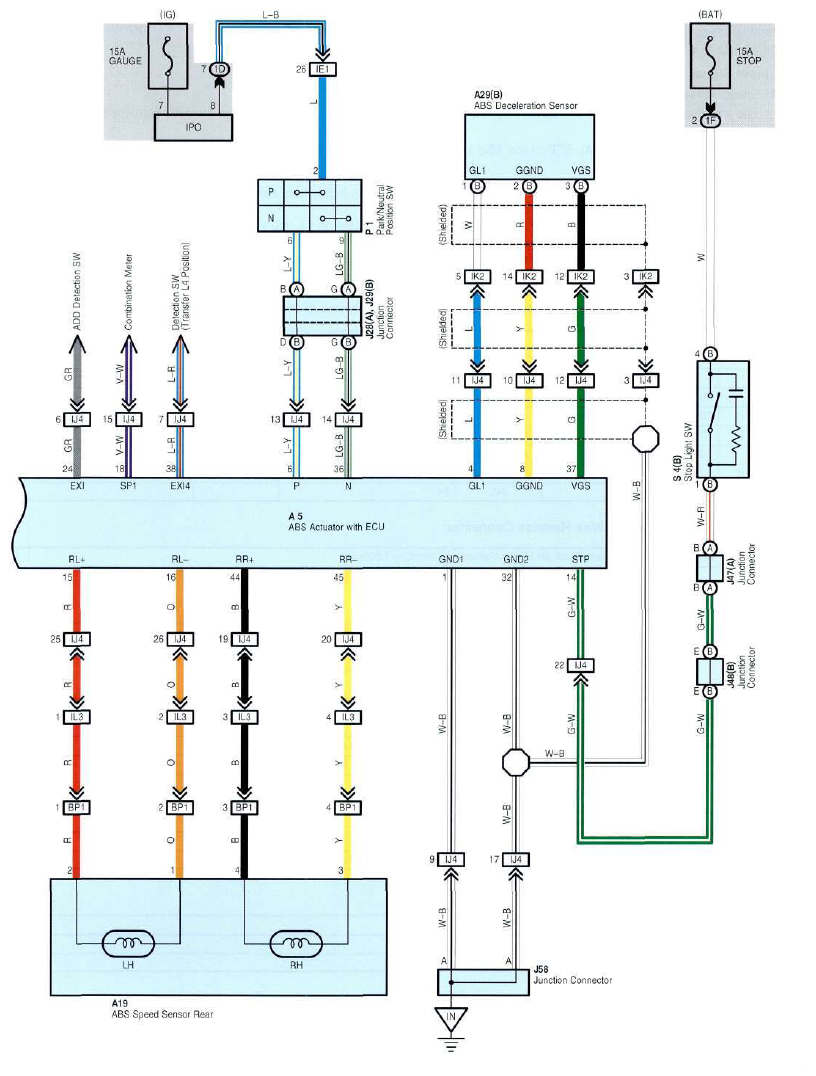

Fig 1: ABS Without VSC System Wiring Diagram (Double Cab; 1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

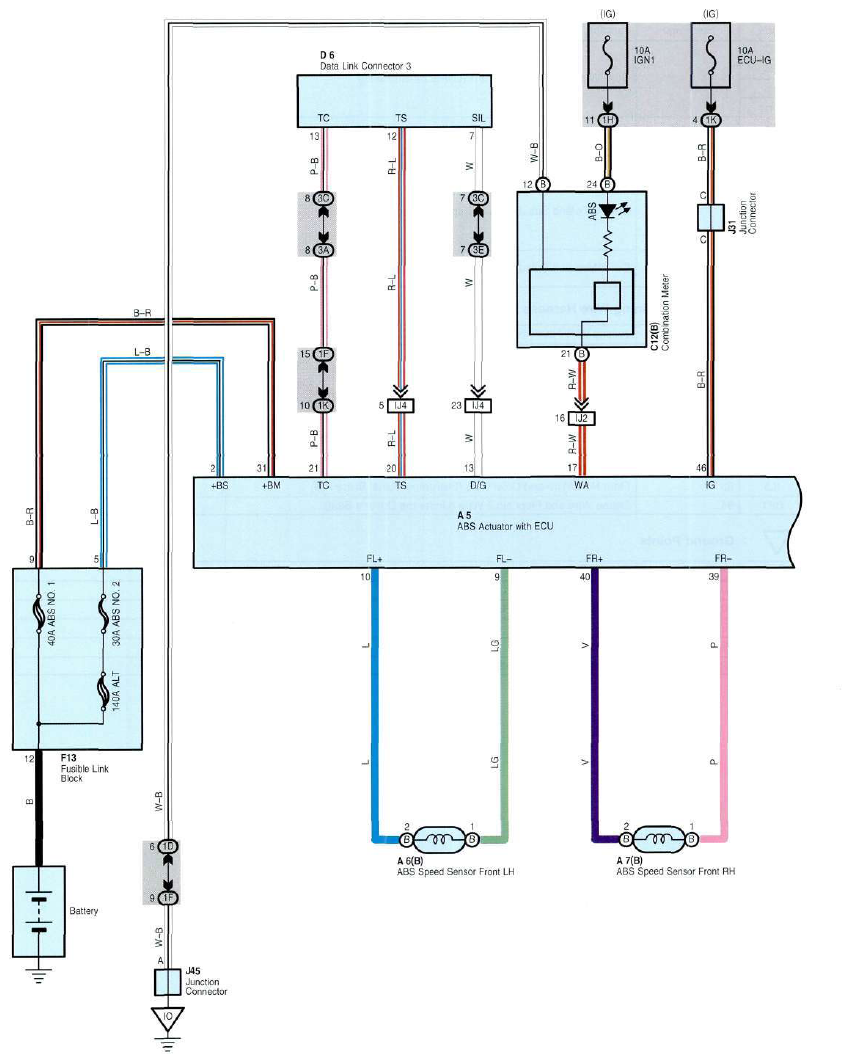

Fig 2: ABS Without VSC System Wiring Diagram (Double Cab; 2 Of 2)
