4WD (Double Cab): Notes

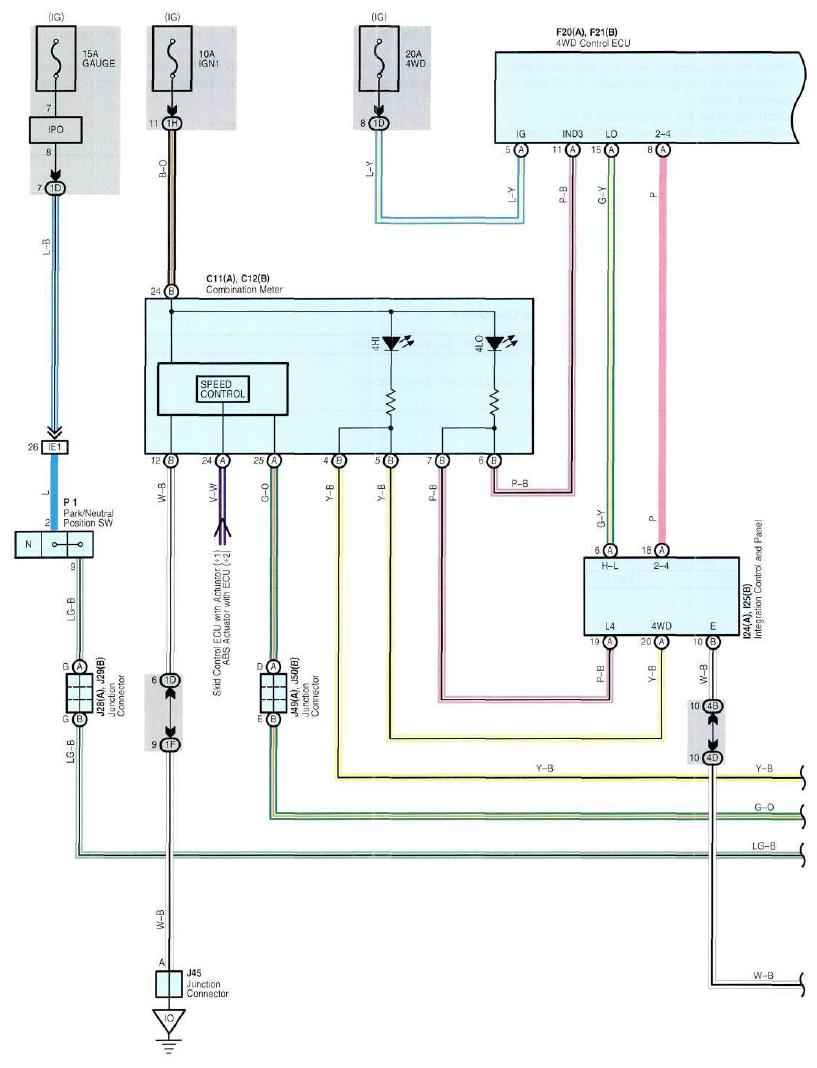

Fig 1: 4WD System Wiring Diagram (Double Cab; 1 Of 3)
G08864525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

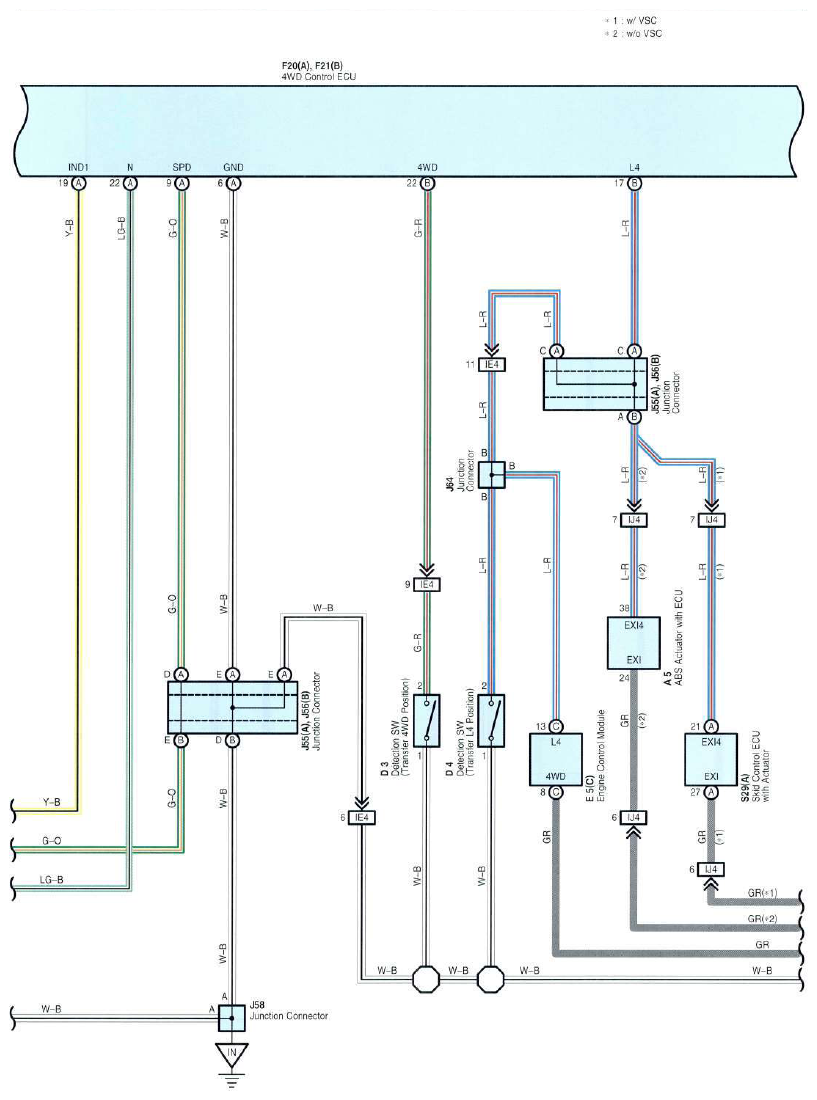

Fig 2: 4WD System Wiring Diagram (Double Cab; 2 Of 3)
G08864526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

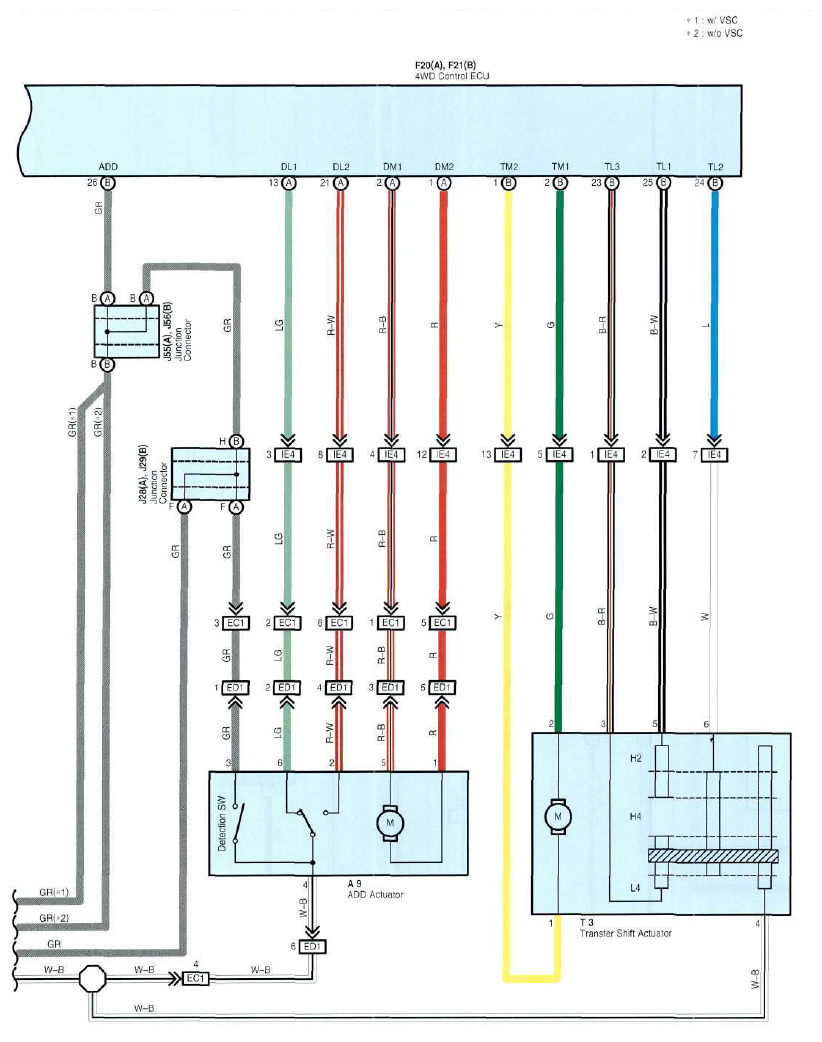

Fig 3: 4WD System Wiring Diagram (Double Cab; 3 Of 3)
G08864527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
