4WD (Access/Standard Cab): Notes

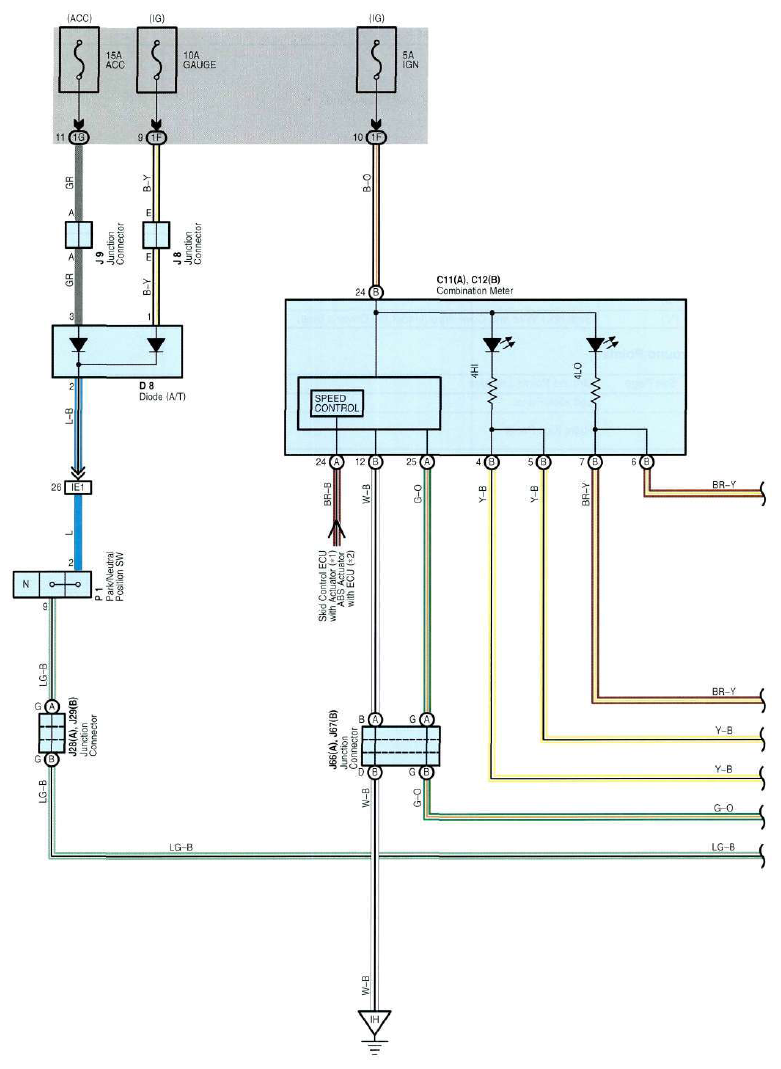

Fig 1: 4WD System Wiring Diagram (Access/Standard Cab; 1 Of 3)
G08864395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

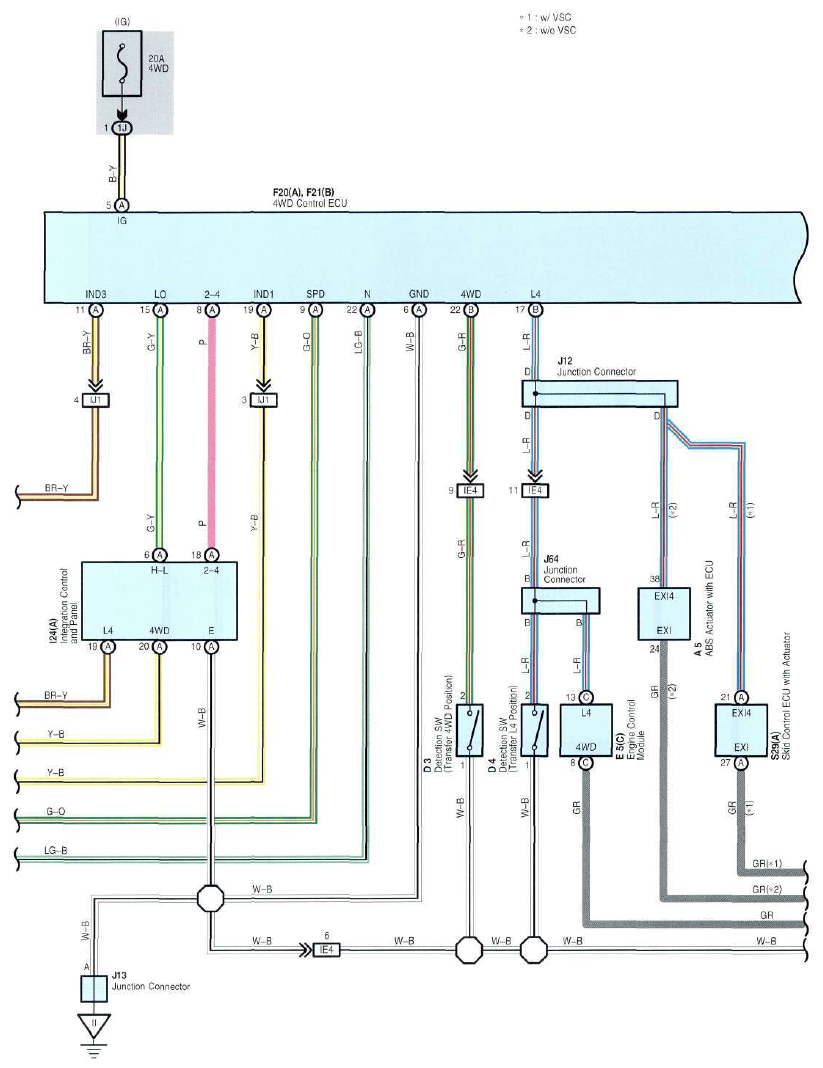

Fig 2: 4WD System Wiring Diagram (Access/Standard Cab; 2 Of 3)
G08864396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

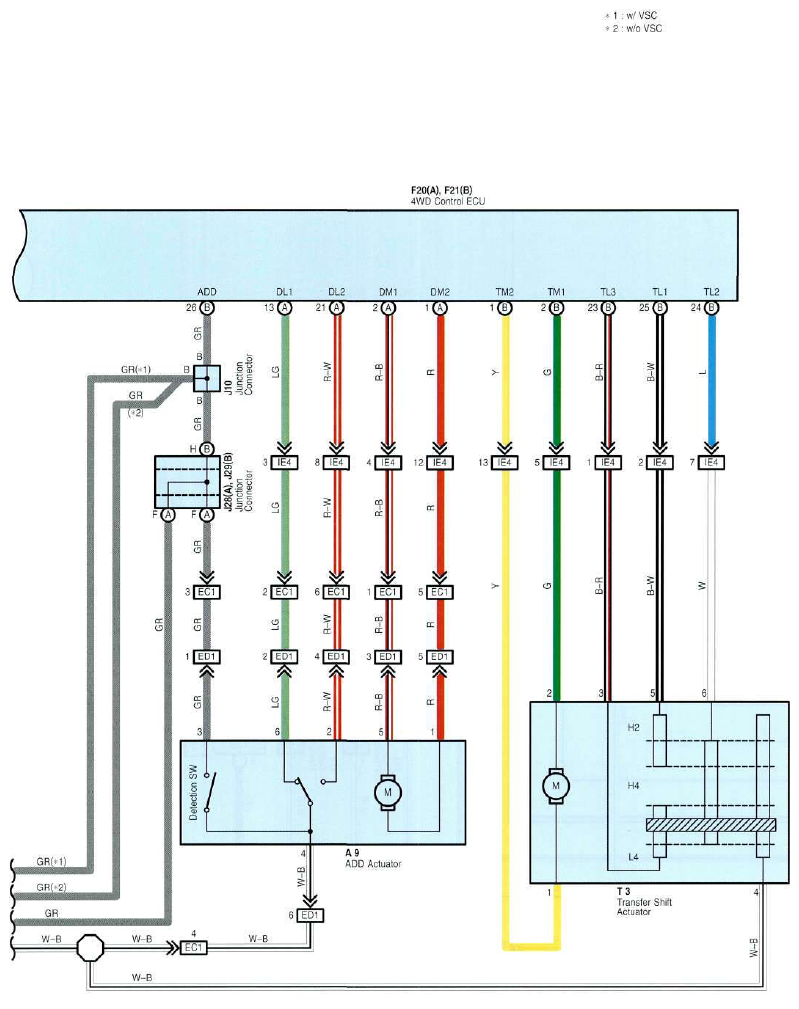

Fig 3: 4WD System Wiring Diagram (Access/Standard Cab; 3 Of 3)
G08864397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
