Access Cab, Standard Cab

The chart below shows the route by which current flows from the battery to each electrical source (Fusible Link, Circuit Breaker, Fuse, etc.) and other parts.

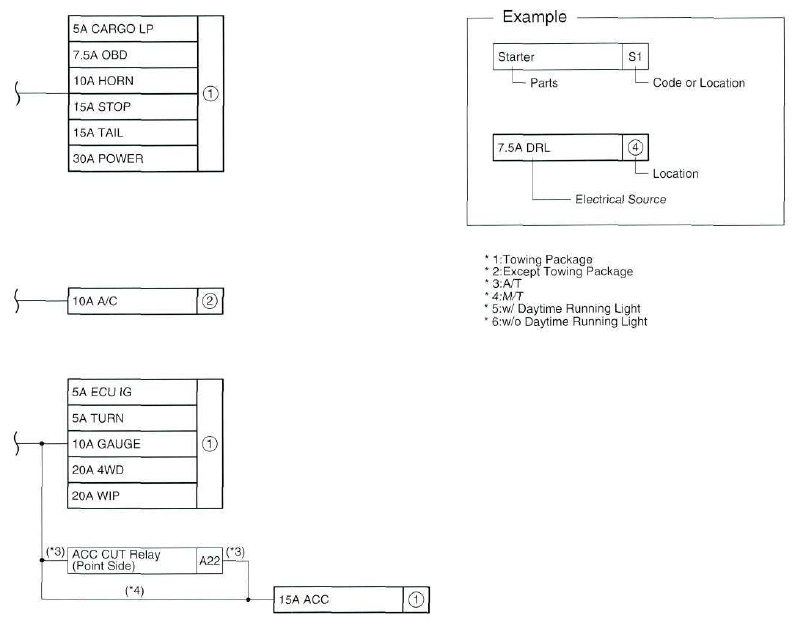

Fig 1: Power Source Current Flow Chart (Access Cab, Standard Cab; 1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

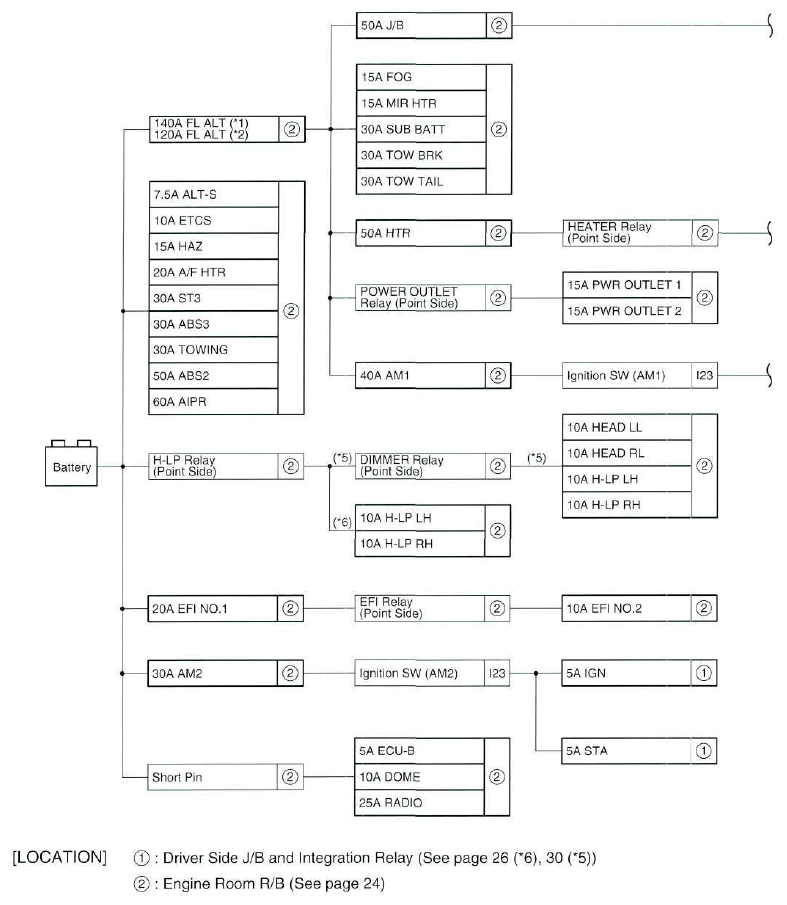

Fig 2: Power Source Current Flow Chart (Access Cab, Standard Cab; 2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
