Power Slide Back Window System (Except Double Cab): Inspection

  1. INSPECT POWER SLIDE BACK WINDOW SWITCH CONTINUITY
    SWITCH POSITION AND TESTER CONNECTION SPECIFICATION (1 OF 2)

    Switch Position Tester Connection Specified Condition
    OPEN 1 - 3, 2 - 6 Continuity
    OFF 2 - 3, 2 - 6 Continuity
    CLOSE 1 - 6, 2 - 3 Continuity

    If the continuity is not as specified, replace the switch.

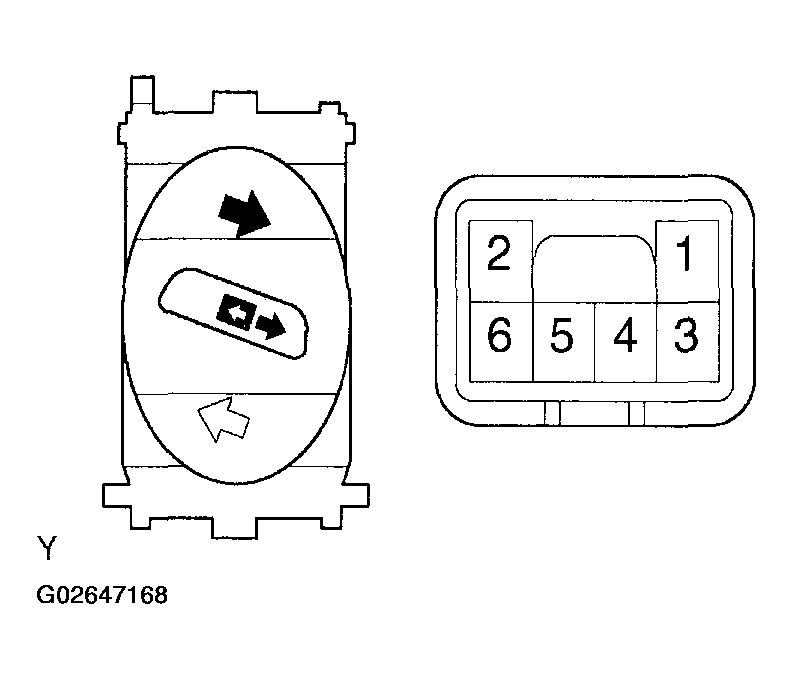

    Fig 1: Inspecting Power Slide Back Window Switch
    G02647168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CHECK POWER SLIDE BACK WINDOW MOTOR PTC THERMISTOR OPERATION
    1. Disconnect the connector from the window motor.
    2. Connect the positive (+) lead from the ammeter to terminal 1 of the motor connector and the negative (-) lead to the negative terminal of the battery.
    3. Connect the positive (+) lead from the battery to terminal 2 of the motor connector, and slide the window to the fully closed position.

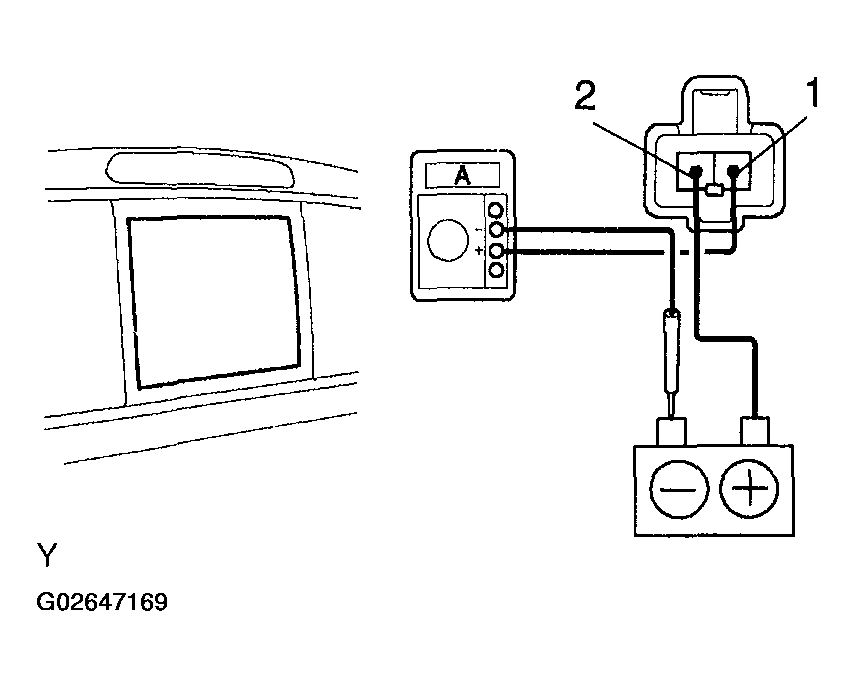

      Fig 2: Checking Power Slide Back Window Motor PTC Thermistor Operation
      G02647169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Continue to apply voltage and check that the current changes to less than 1 A in 4 to 90 seconds.
    5. Disconnect the leads from the terminals.
    6. Approximately 60 seconds later, connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the window begins to slide open.

    If operation is not as specified, replace the regulator and motor assembly.

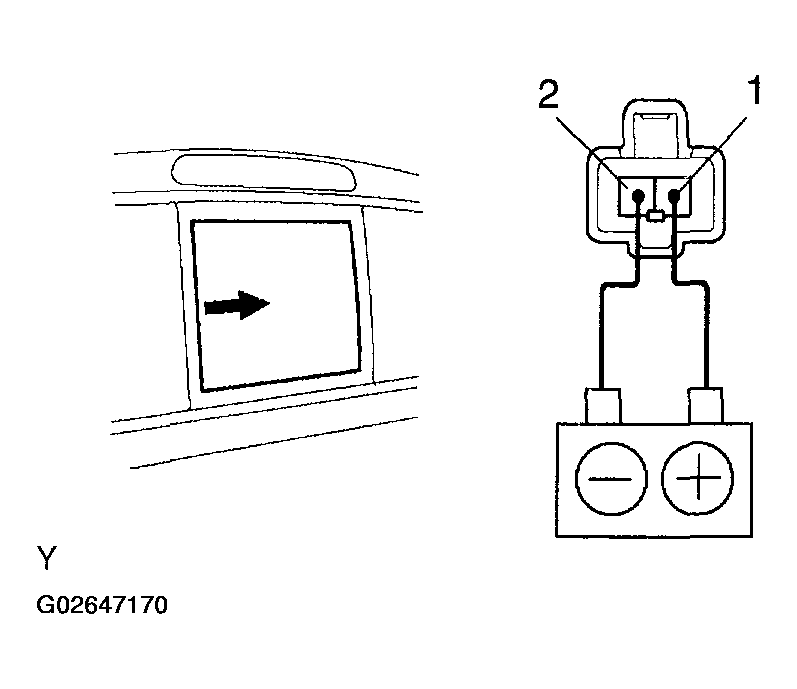

    Fig 3: Connecting (+) Lead From The Battery To Terminal 1 And (-) Lead To Terminal 2
    G02647170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSPECT POWER RELAY CONTINUITY
    SWITCH POSITION AND TESTER CONNECTION SPECIFICATION (2 OF 2)

    Tester Connection Specified Condition
    3 - 5 No Continuity
    3 - 5 Continuity (When battery voltage is applied to terminals 1 and 2)

    If the continuity is not as specified, replace the relay.

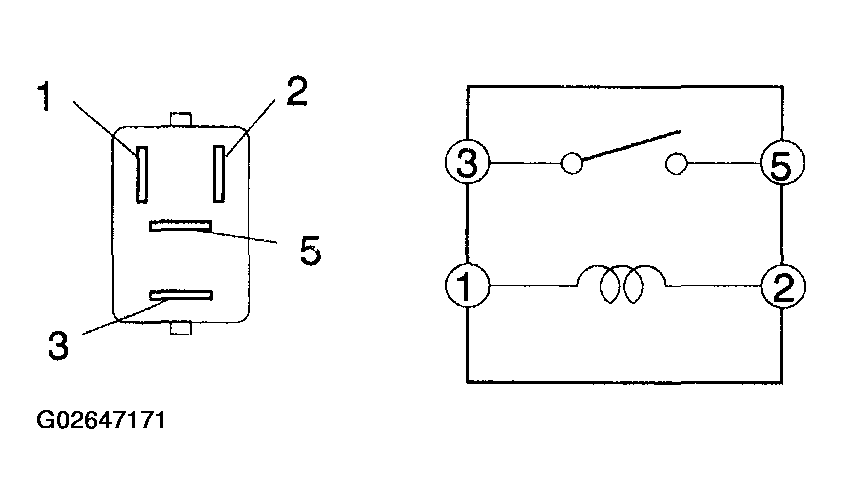

    Fig 4: Inspecting Power Relay Continuity
    G02647171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. CHECK INTEGRATION RELAY

    Remove the integration relay from the driver side J/B, and check the voltage or continuity of each terminal on the driver side J/B side (see INSPECTION ).

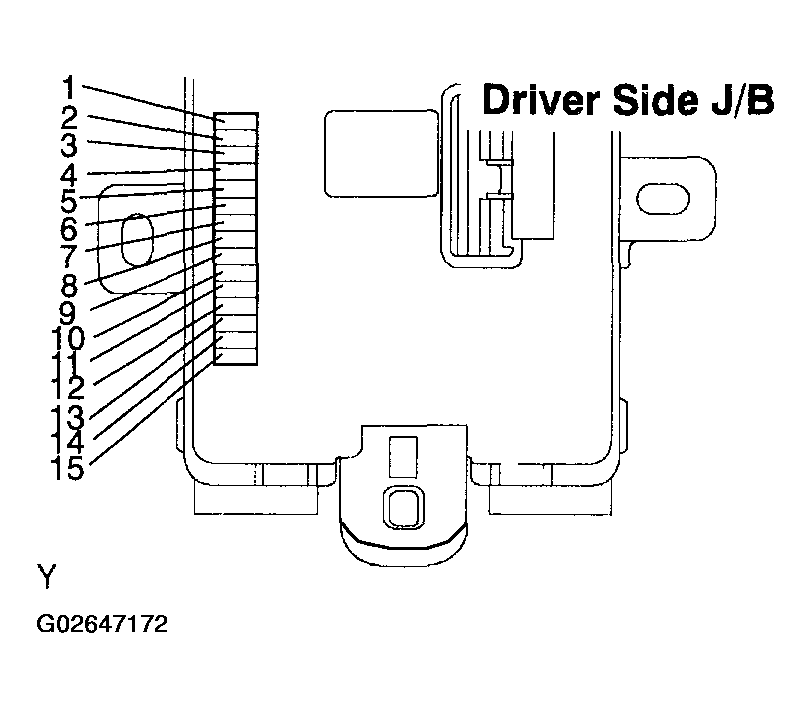

    Fig 5: Checking Integration Relay
