Terminals Of Ecu

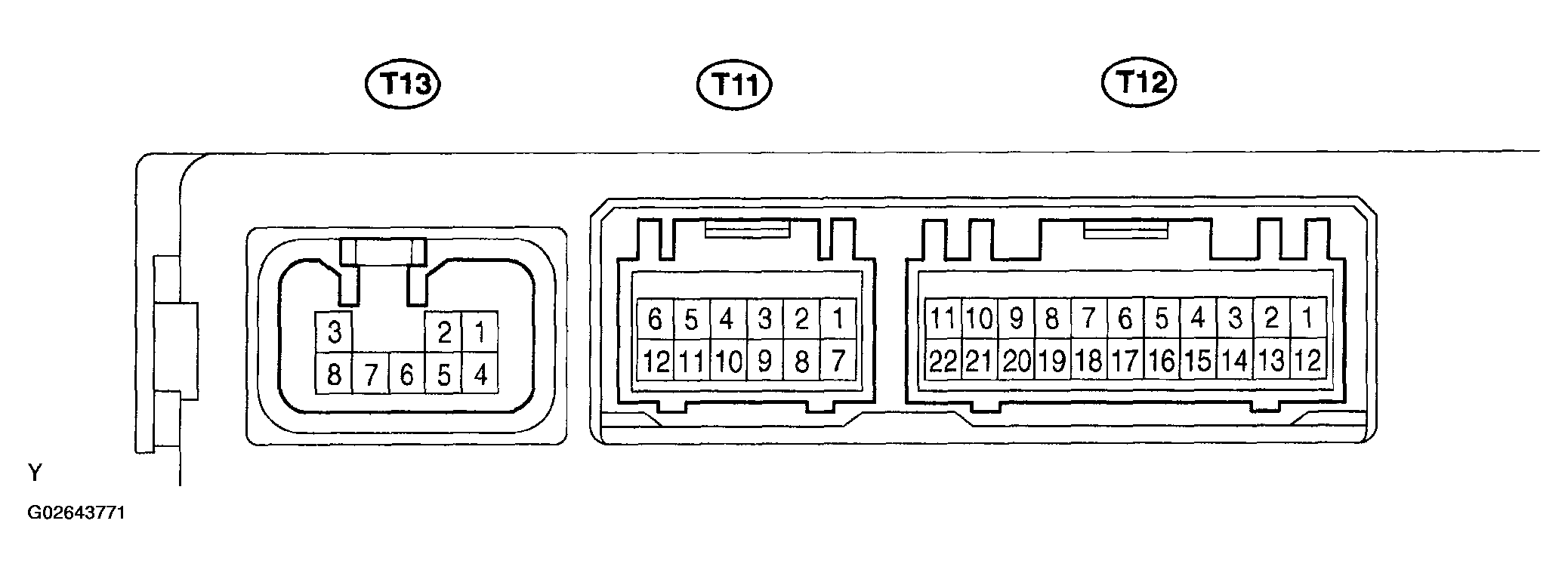

Fig 1: Identifying Terminals Of ECU (1 Of 3)
G02643771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

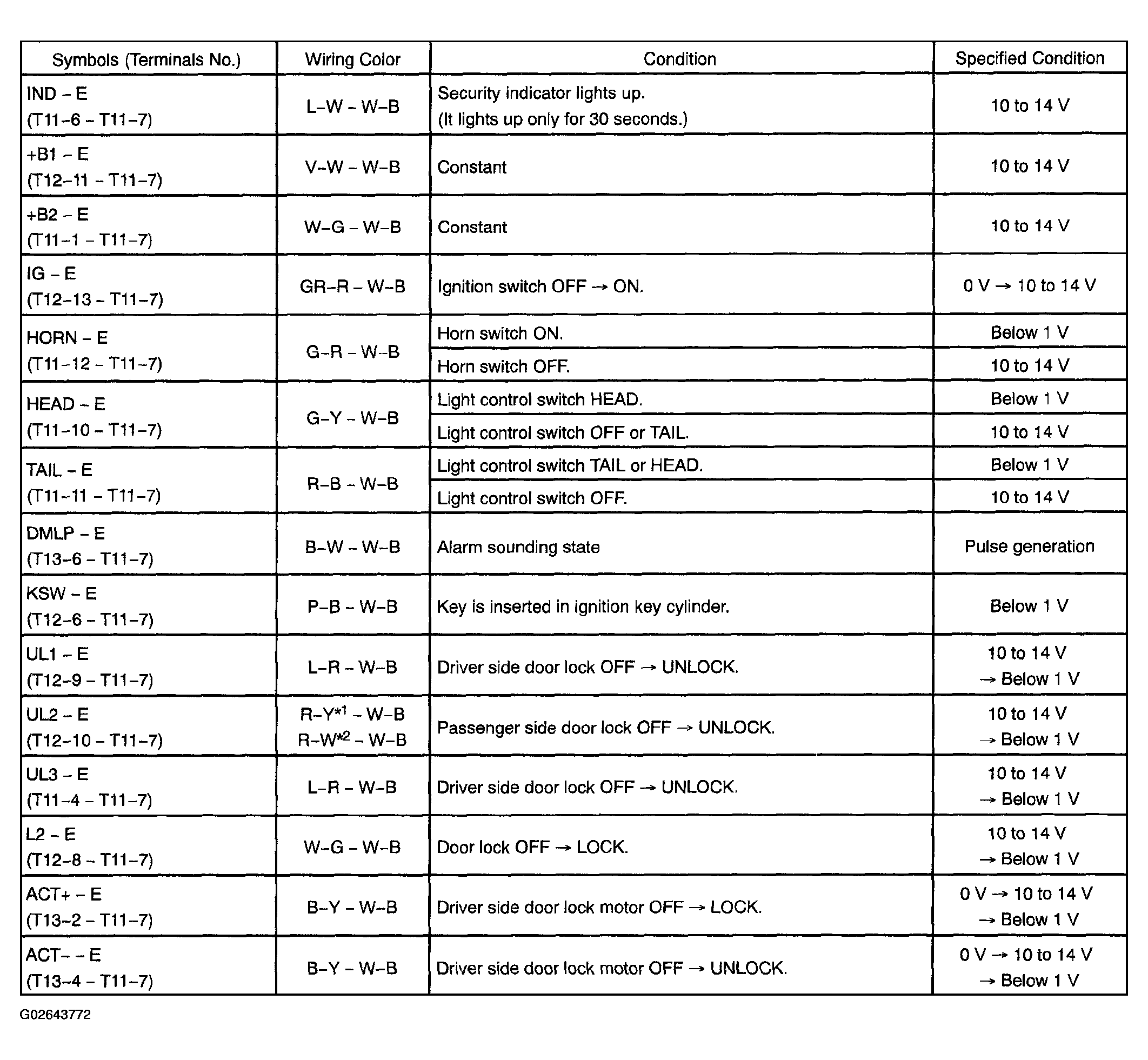

Fig 2: Identifying Terminals Of ECU (2 Of 3)
G02643772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

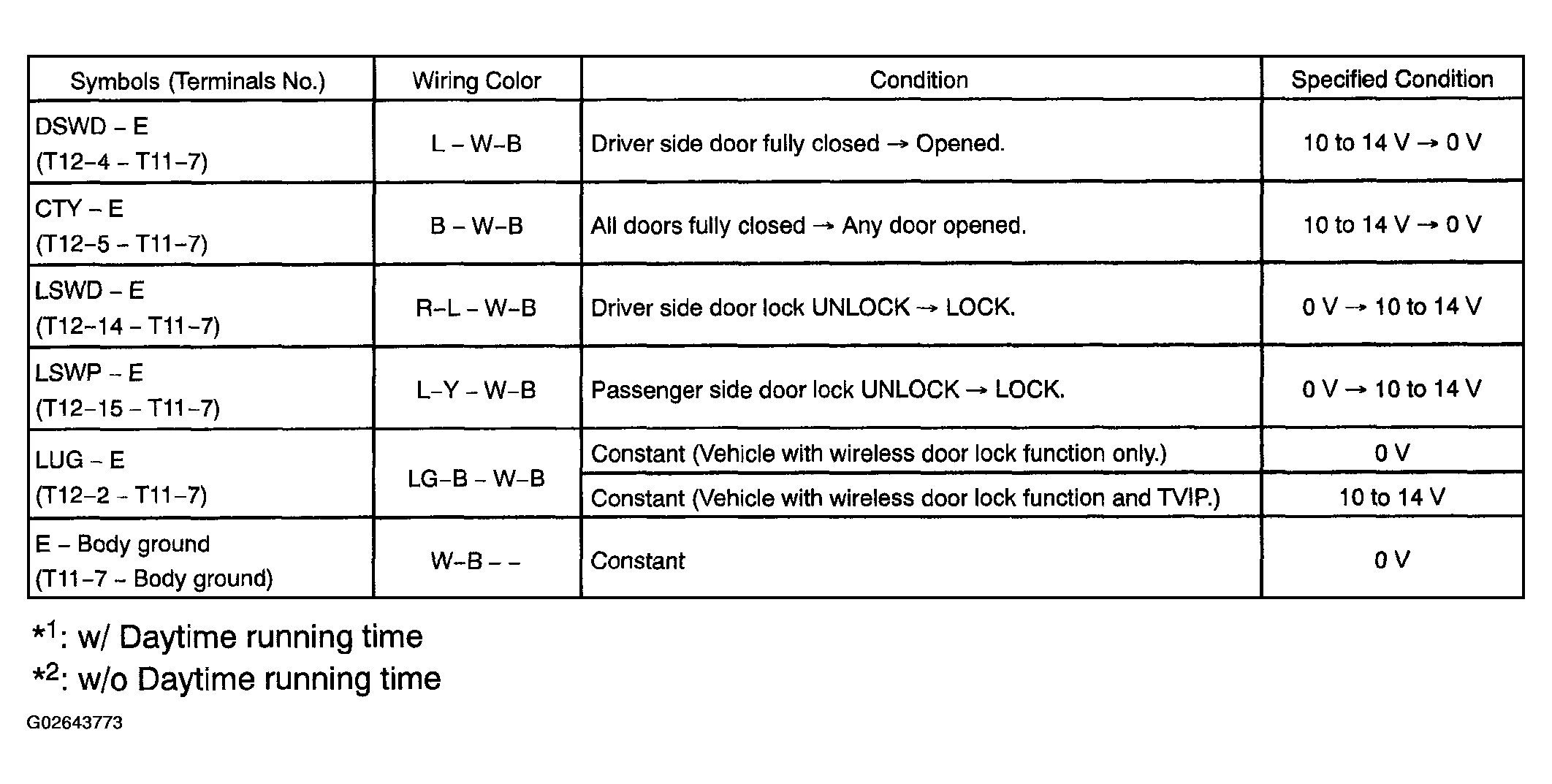

Fig 3: Identifying Terminals Of ECU (3 Of 3)
G02643773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
