Taillight Control Switch Circuit: Wiring Diagram

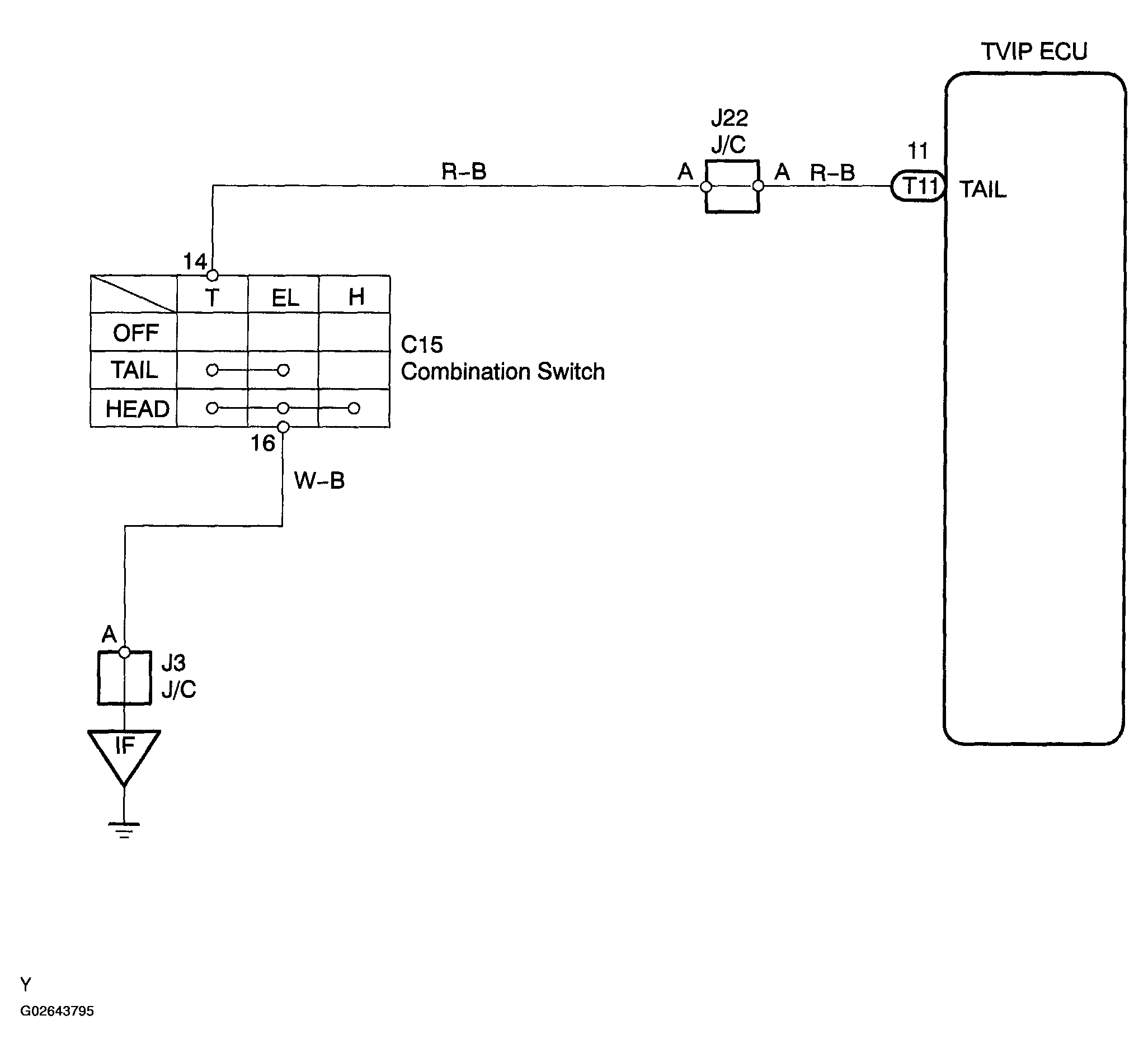

Fig 1: Taillight Control Switch Circuit Wiring Diagram

G02643795

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
