Inspection Procedure

PREPARATION:

Remove the security indicator (glass breakage sensor microphone).

CHECK:

Apply battery voltage between each terminal, and check the lighting condition of the indicator.

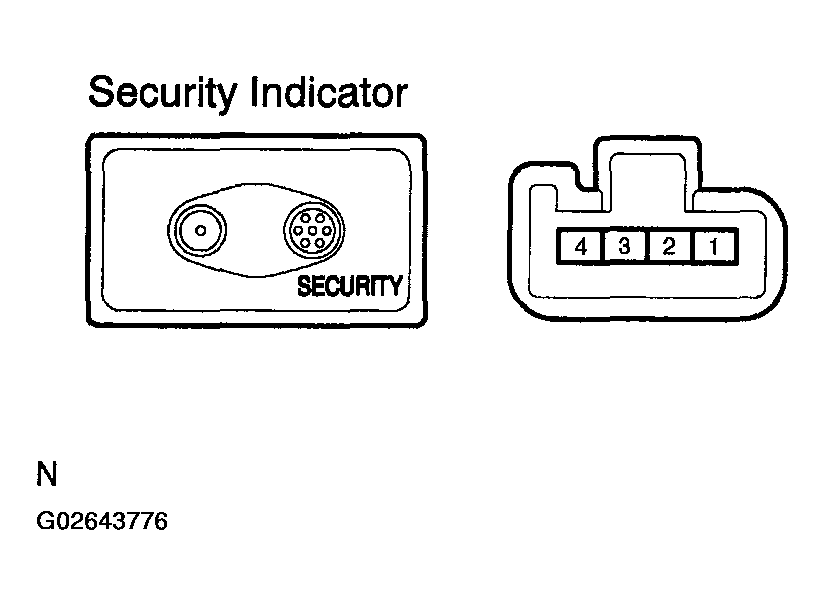

Fig 1: Inspecting Security Indicator (Glass Breakage Sensor Microphone)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK:

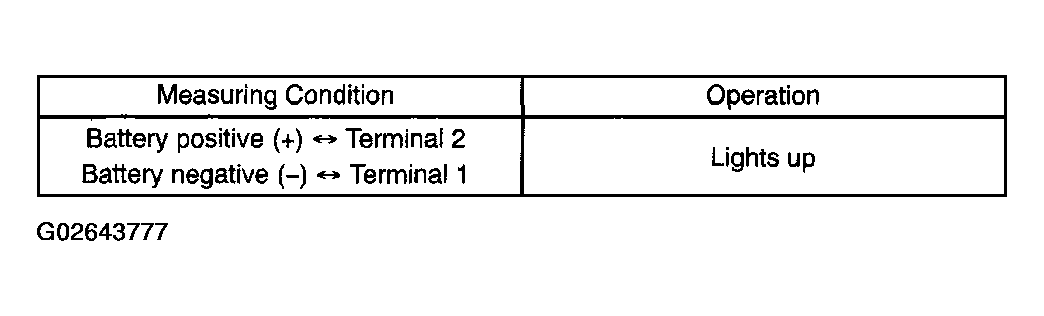

Fig 2: Glass Breakage Sensor Microphone Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG : Replace security indicator.
2. OK : Go to next step.

PREPARATION:

Disconnect the T11 TVIP ECU and S10 security indicator (glass breakage sensor microphone) connectors.

CHECK:

Check the continuity between the wire harness side connectors.

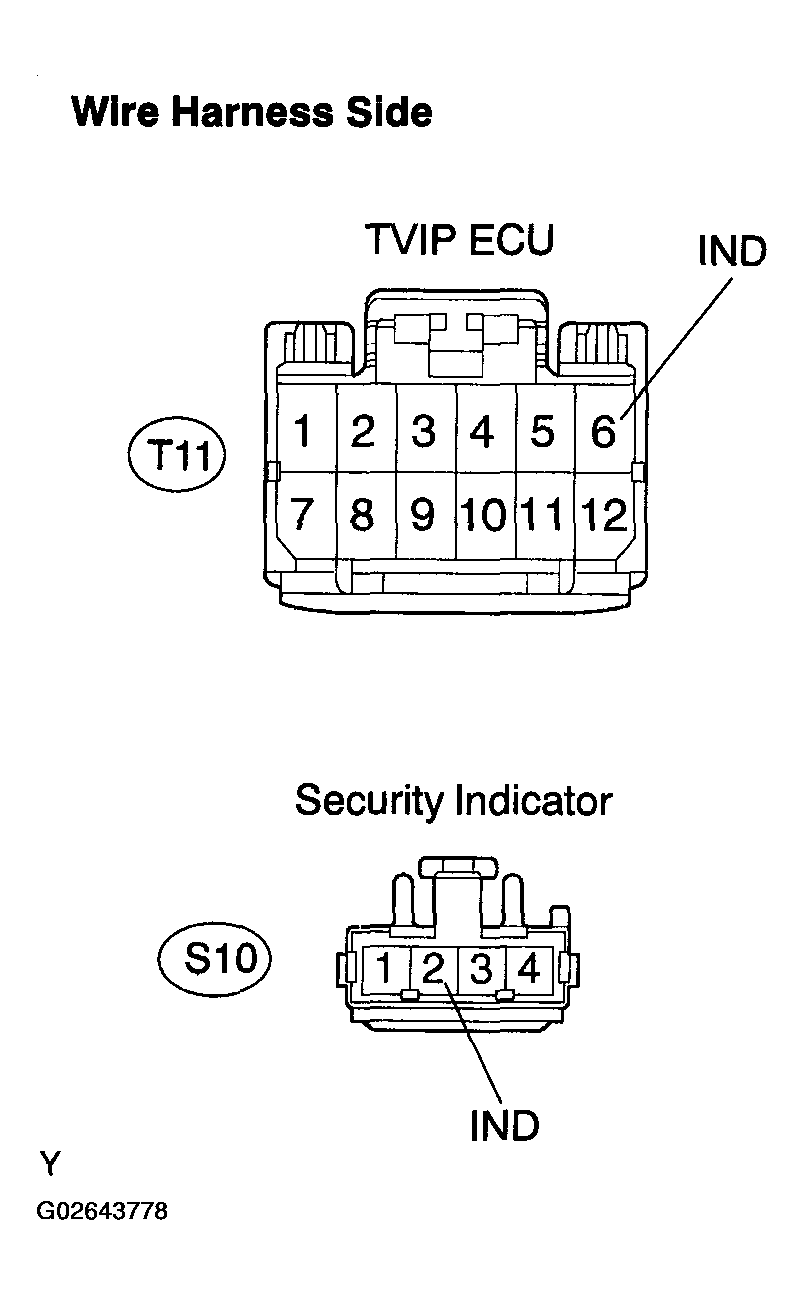

Fig 3: Checking Harness And Connector Between TVIP ECU And Security Indicator

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK:

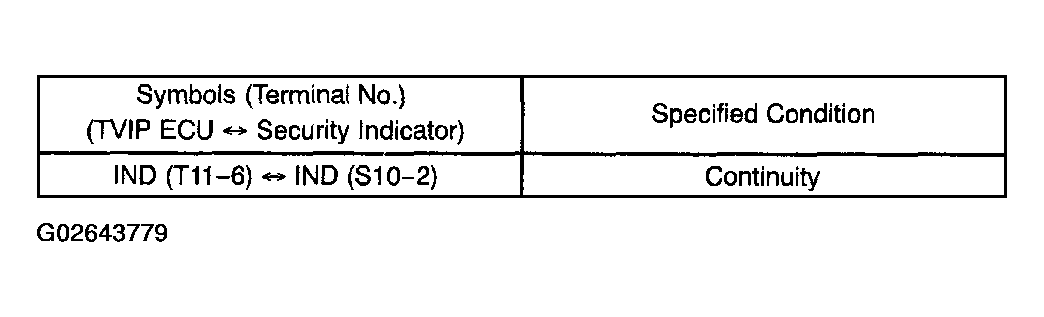

Fig 4: TVIP ECU And Security Indicator Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG : Repair or replace harness and connector.
2. OK : Go to next step.

PREPARATION:

Disconnect the S10 security indicator (glass breakage sensor microphone) connector.

CHECK:

Check the continuity between the S10 security indicator wire harness side connector and body ground.

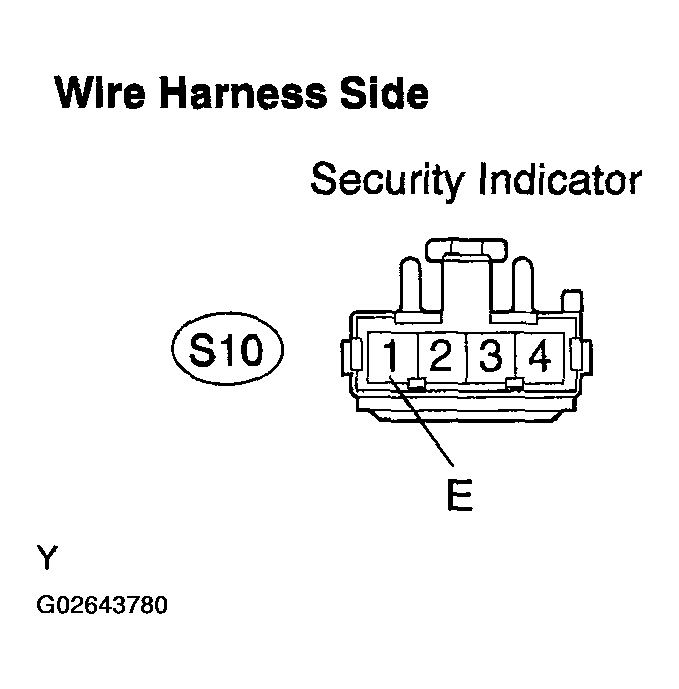

Fig 5: Checking Harness And Connector Between Security Indicator And Body Ground

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK:

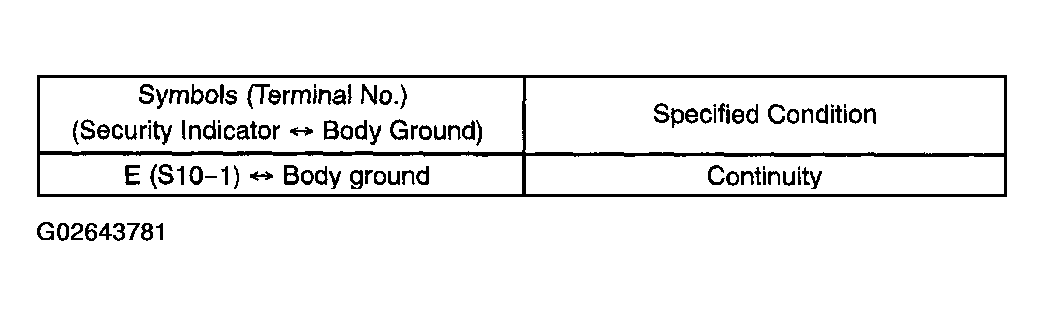

Fig 6: Security Indicator And Body Ground Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG : Repair or replace harness and connector.
2. OK : Replace TVIP ECU.
