Inspection Procedure

  1. Check interior light operation.

    CHECK:

    Check the interior light lights up when the door is open.

    1. NG : Check  INTERIOR LIGHT SYSTEM (EXCEPT DOUBLE CAB)  .
    2. OK : Go to next step.
  2. Check harness and connector between TVIP ECU and interior light.

    PREPARATION:

    1. Disconnect the T13 TVIP ECU connector.
    2. Disconnect the I26 interior light connector.

    CHECK:

    Check the continuity between the wire harness side connectors.

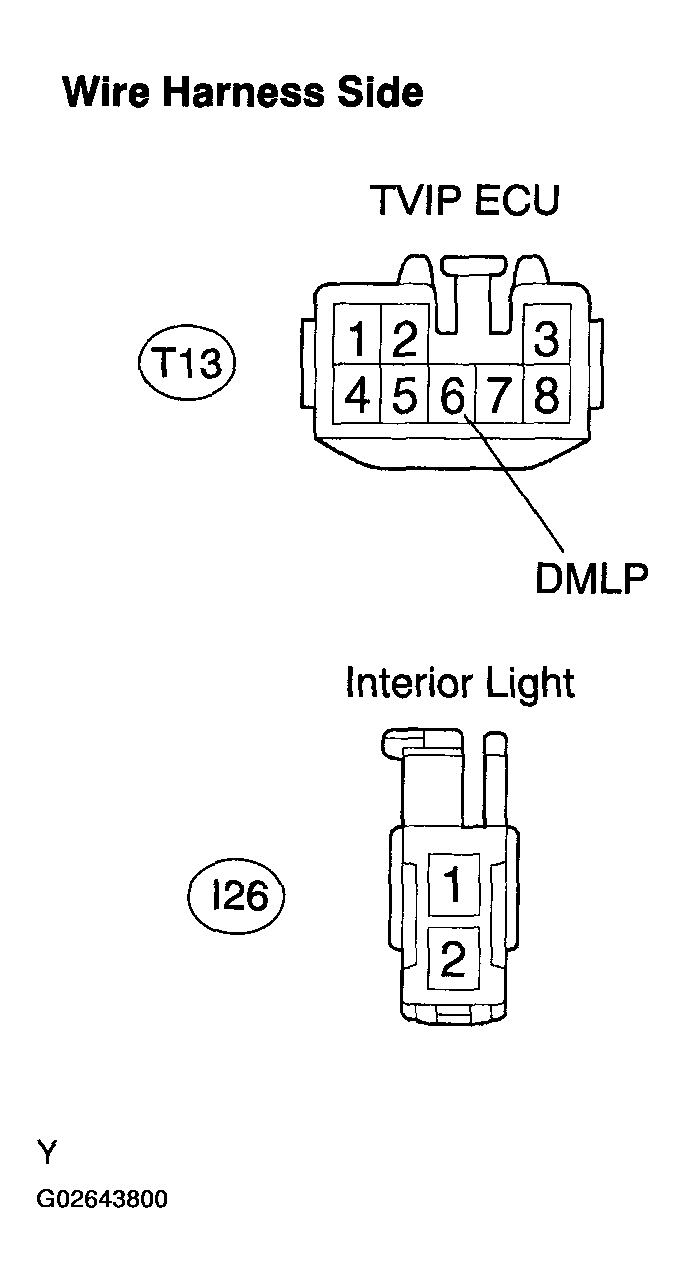

    Fig 1: Checking Harness And Connector Between TVIP ECU And Interior Light
    G02643800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK:

    TVIP ECU AND INTERIOR LIGHT

    Symbols (Terminal No.)
    (TVIP ECU <-> Interior Light)    		 Specified Condition
    DMLP (T13-6) <-> - (I26-1) Continuity
    1. NG : Repair or replace harness and connector.
    2. OK : Replace TVIP ECU.
