Headlight Control Switch Circuit: Wiring Diagram

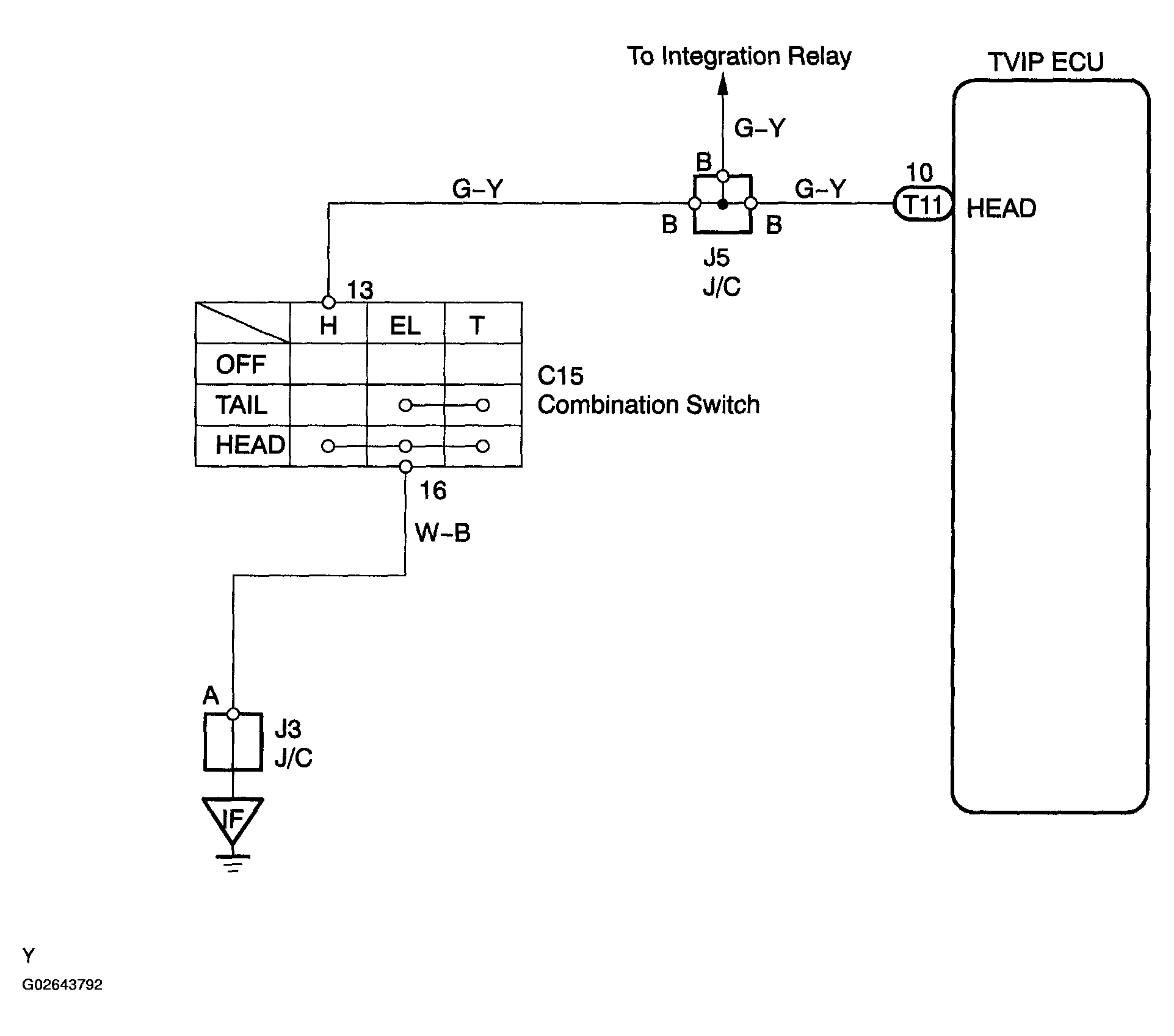

Fig 1: Headlight Control Switch Circuit Wiring Diagram

G02643792

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
