Inspection Procedure

CHECK:

Check that the power door lock control system is operating normally.

1. NG : Check power door lock control system (see  LOCATION  ).
2. OK : Go to next step.

PREPARATION:

1. Disconnect the T11 and T12 TVIP ECU connectors.
2. Disconnect the D22 or D23 door key lock and unlock switch connector.

CHECK:

Check the continuity between the wire harness side connectors.

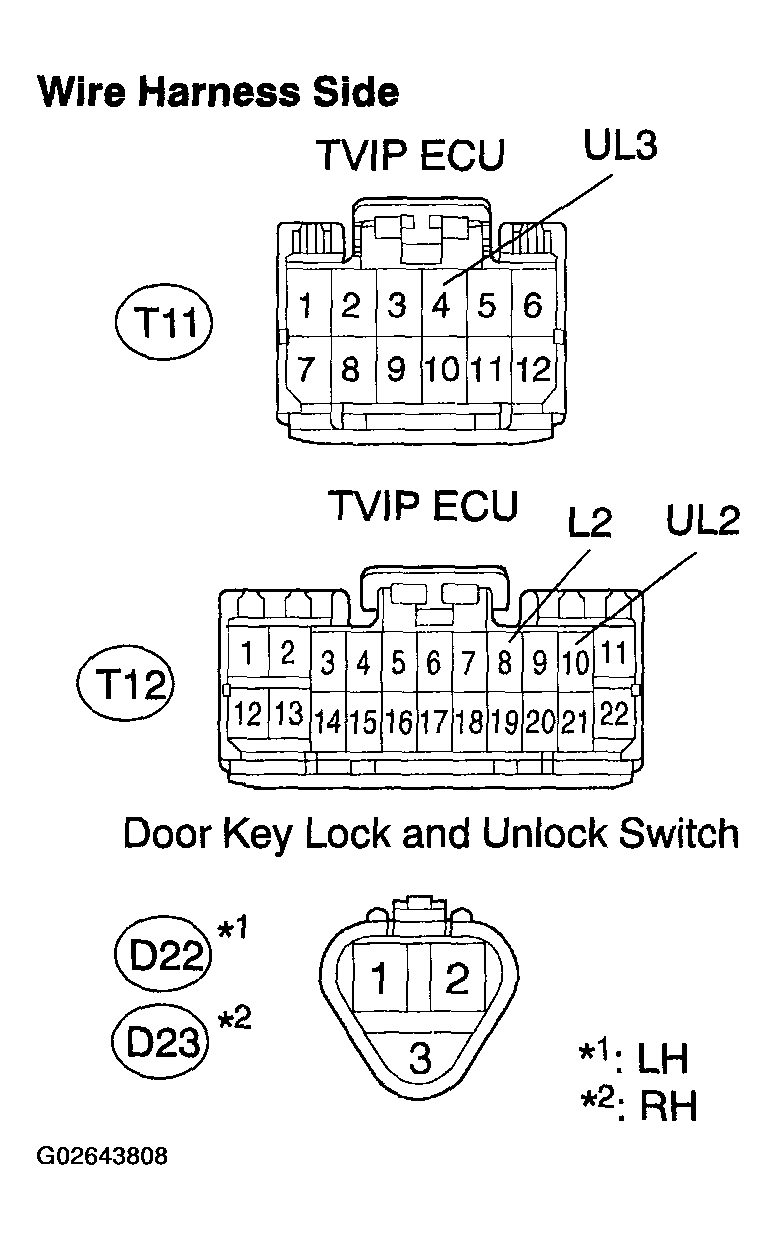

Fig 1: Checking Harness And Connector Between TVIP ECU And Door Key Lock And Unlock Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK:

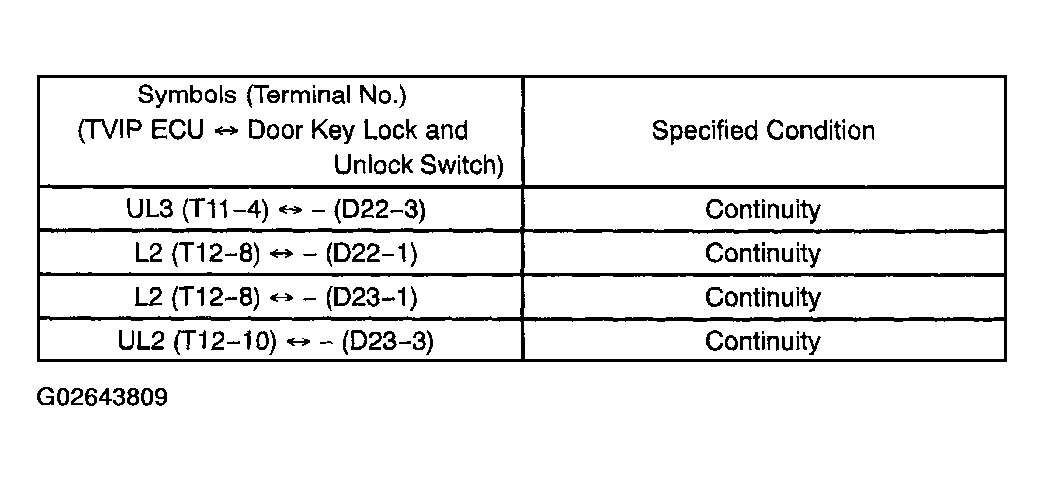

Fig 2: TVIP ECU And Door Key Lock And Unlock Switch Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG : Repair or replace harness and connector.
2. OK : Replace TVIP ECU.
