Terminals Of ECM: Notes

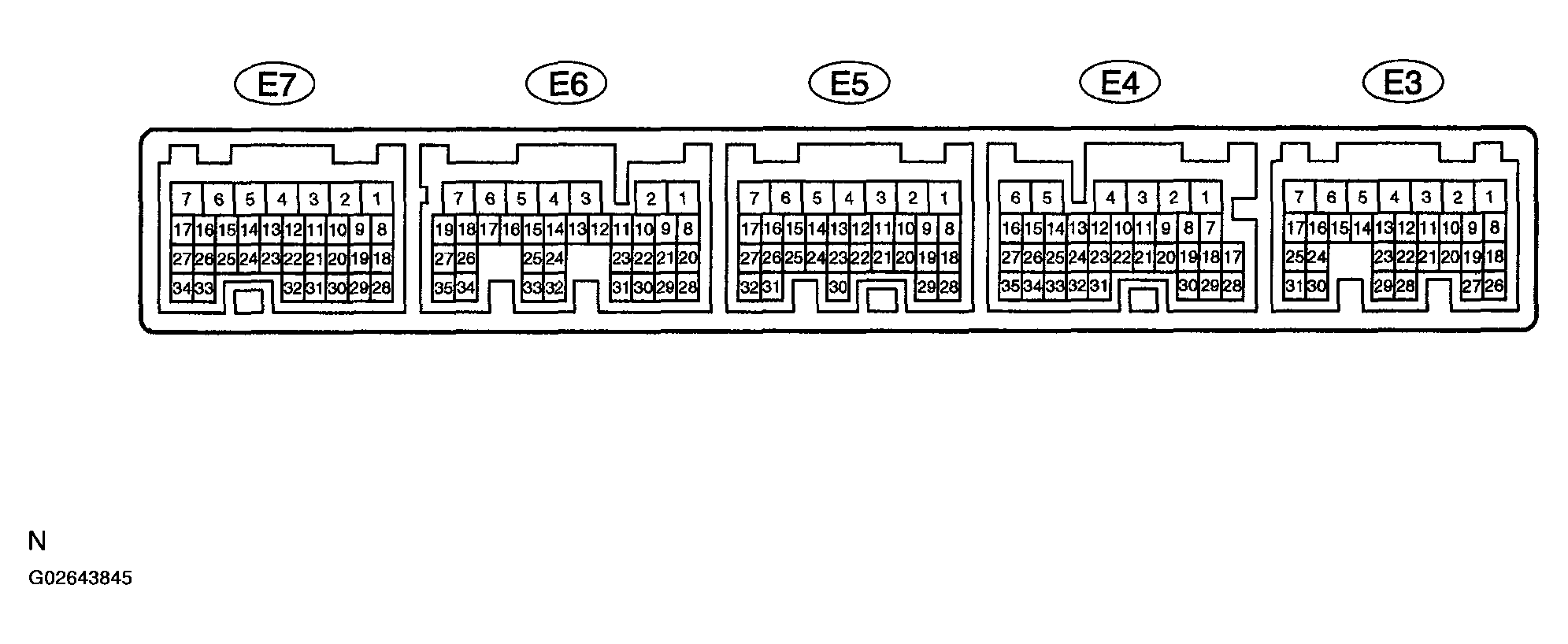

Fig 1: Identifying Terminals Of ECM (1 Of 2)
G02643845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Terminals Of ECM (2 Of 2)
G02643846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
