Clutch Switch: Installation

WARNING: This page is about a different car, the 2006 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL CLUTCH SWITCH ASSEMBLY
1. Insert the clutch switch assembly by turning it until the bolt touches the cushion of the clutch pedal.
2. Adjust the clutch switch assembly to the specified value between the cushion and the bracket as shown in Fig 1 .
3. Tighten the lock nut to fix the clutch switch assembly.

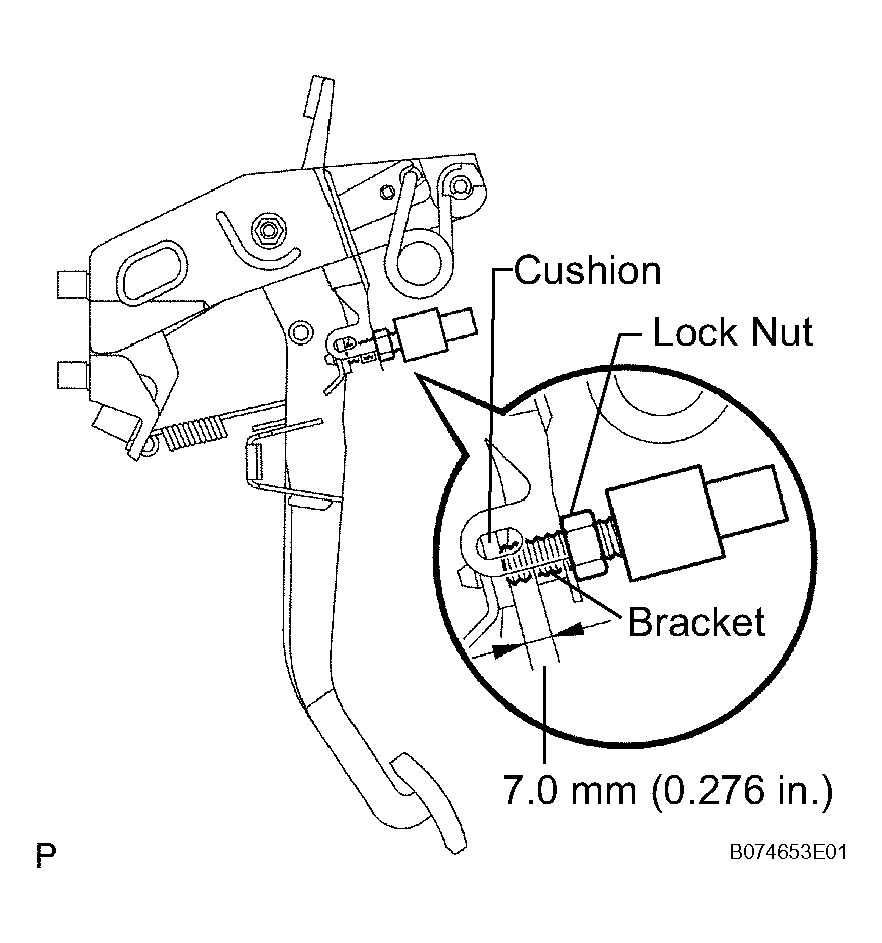

Fig 1: Adjusting Clutch Switch Assembly Between Cushion And Bracket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT PANEL FINISH LOWER PANEL LH
INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH
INSTALL FRONT DOOR SCUFF PLATE LH
