Parts Location

WARNING: This page is about a different car, the 2006 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

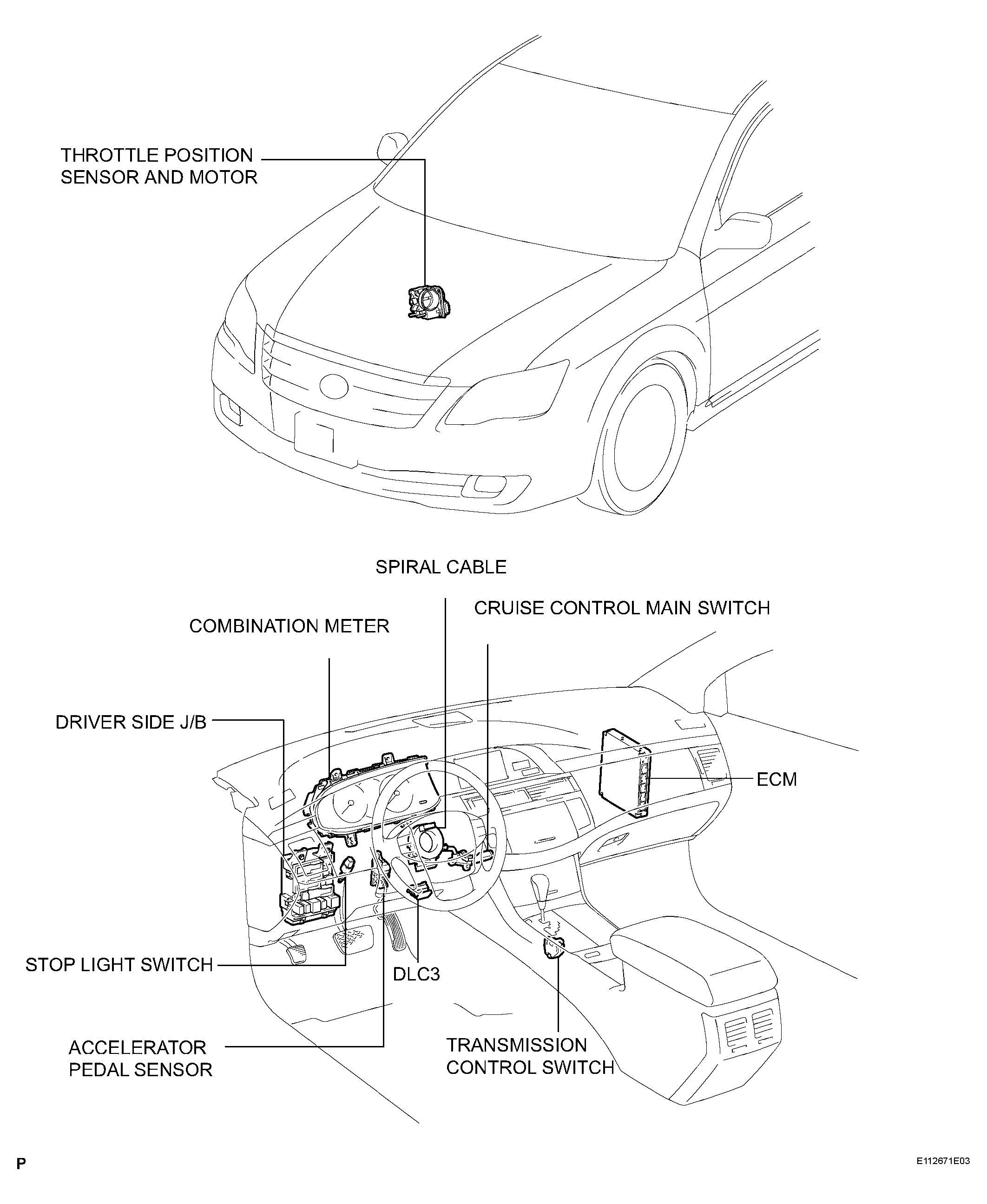

Fig 1: Identifying Cruise Control System Parts Location (1 Of 2)
G04375808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Cruise Control System Parts Location (2 Of 2)
G04375809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
