Throttle Body: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
DRAIN ENGINE COOLANT (See COOLANT )
REMOVE V-BANK COVER
1. Remove the 2 nuts, then remove the V-bank cover.

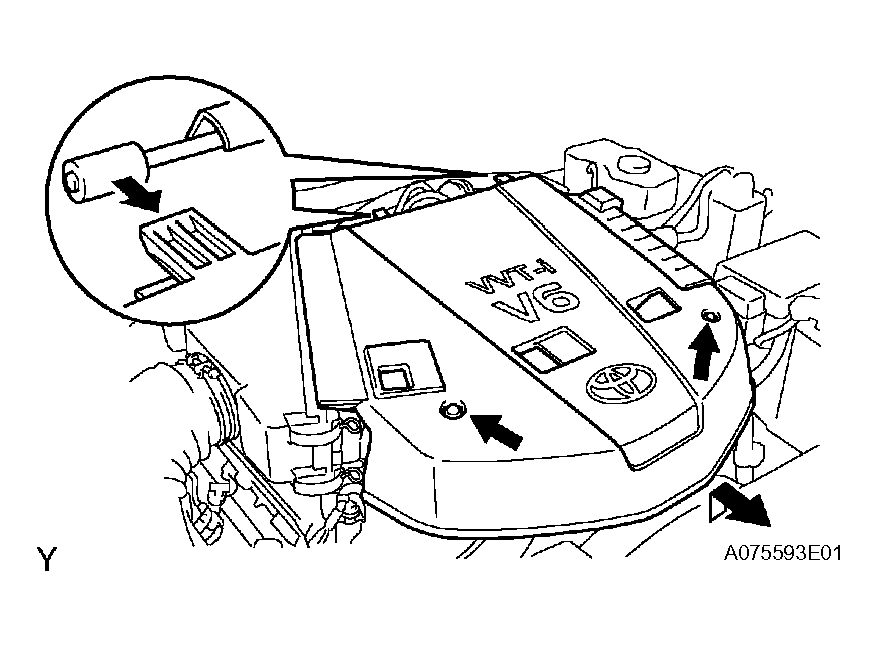

  Fig 1: Removing V-Bank Cover With Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AIR CLEANER ASSEMBLY
1. Disconnect the ventilation hose No. 2.

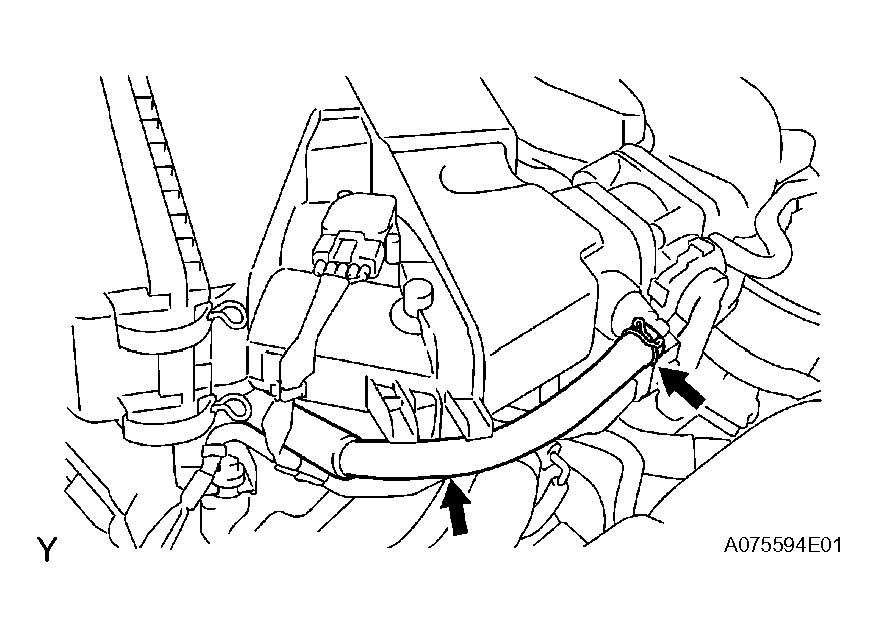

  Fig 2: Disconnecting Ventilation Hose No. 2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the vacuum hose.
3. Disconnect the mass air flow meter connector.
4. Remove the 2 wire harness clamps.

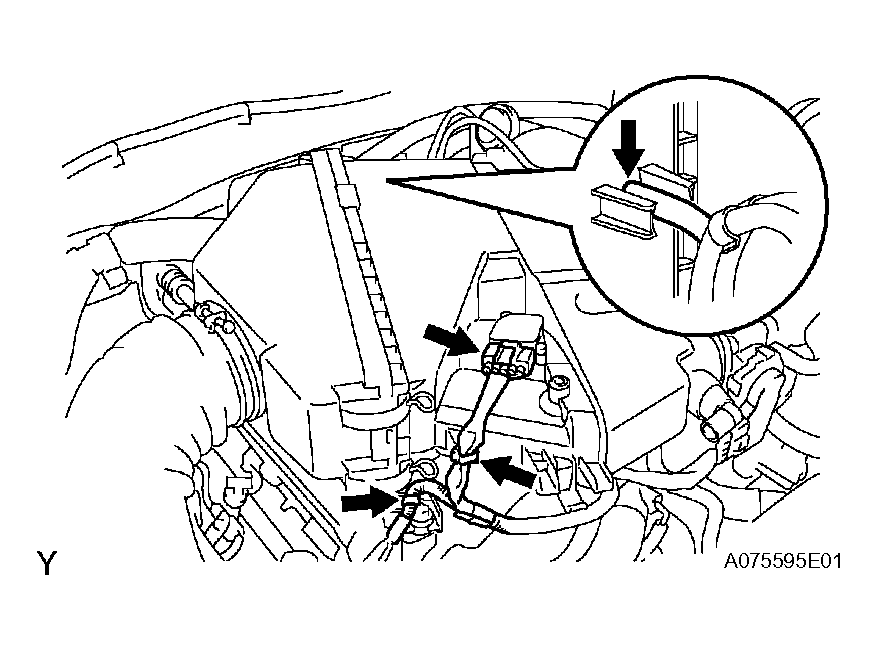

  Fig 3: Removing Wire Harness Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Loosen the 2 hose clamps.
6. Remove the 2 bolts, then remove the air cleaner.

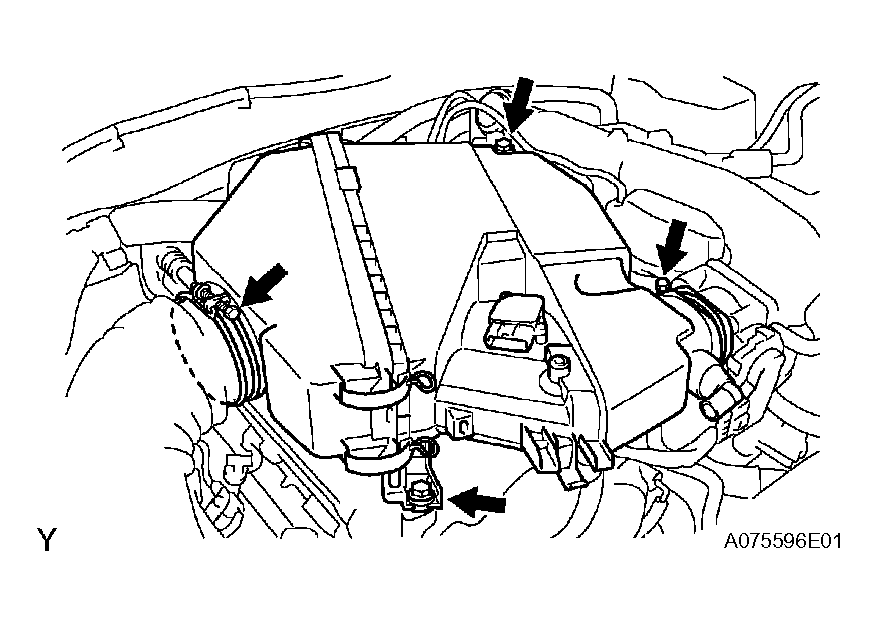

  Fig 4: Removing Air Cleaner With Bolts & Hose Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE THROTTLE WITH MOTOR BODY ASSEMBLY
1. Disconnect the water by-pass hose No. 5.

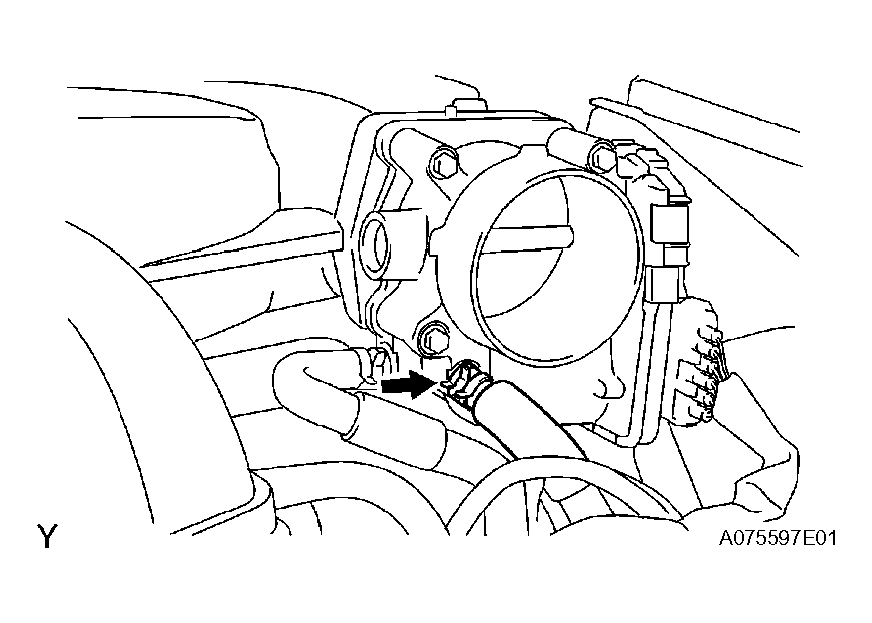

  Fig 5: Disconnecting Water By-Pass Hose No. 5
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the water by-pass hose No. 4.

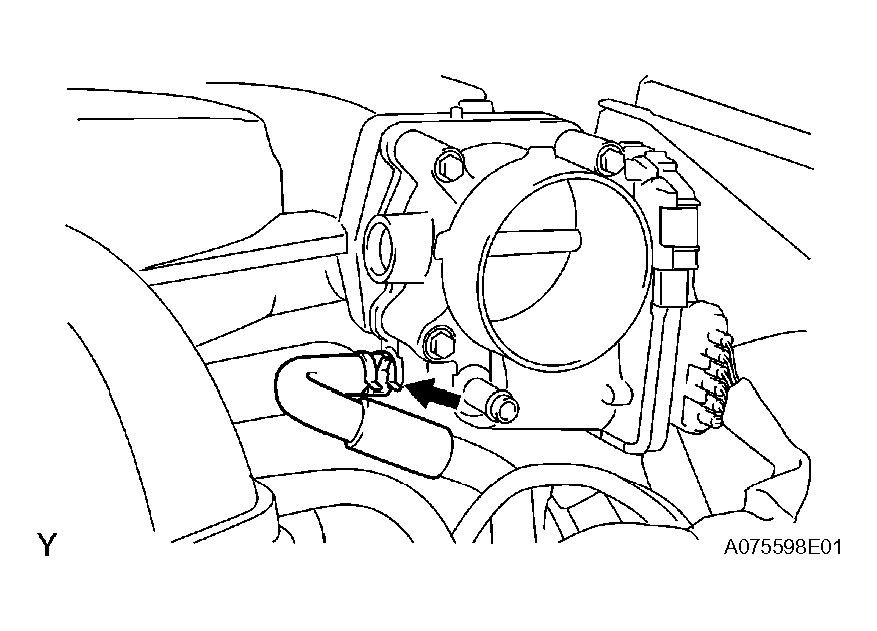

  Fig 6: Disconnecting Water By-Pass Hose No. 4
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the throttle motor connector.
4. Remove the 4 bolts, then remove the throttle w/ motor body and gasket.

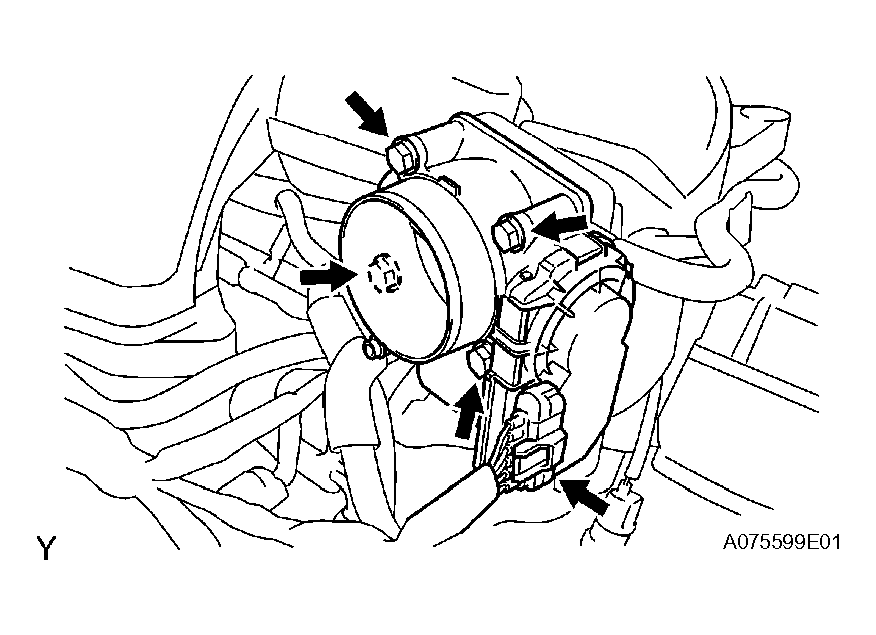

  Fig 7: Removing Bolts
