Mass Air Flow Meter: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE V-BANK COVER (See  INSTALLATION   )
  3. REMOVE MASS AIR FLOW METER
    1. Disconnect the connector.
    2. Remove the 2 screws, then remove the mass air flow meter.

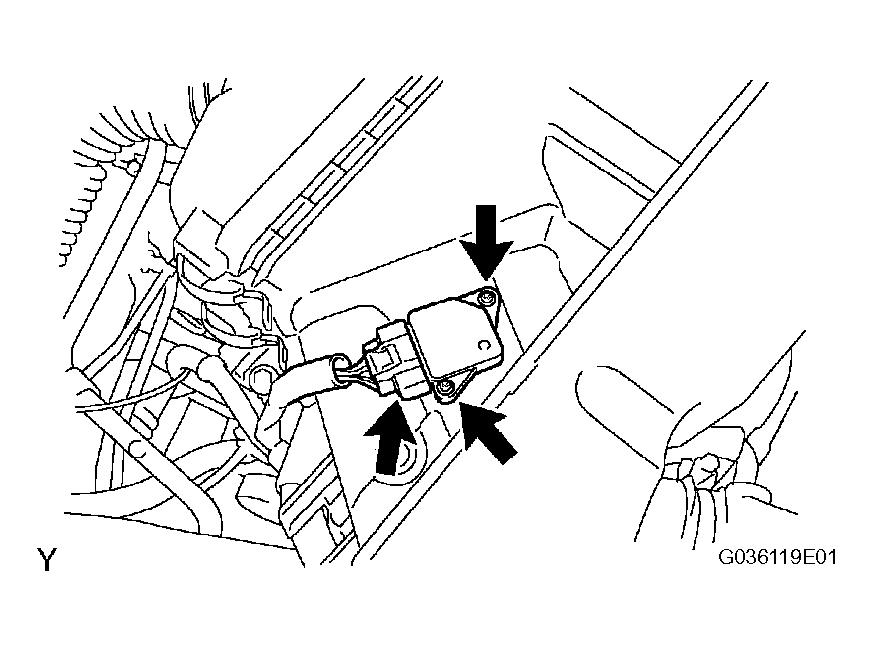

      Fig 1: Removing Mass Air Flow Meter With Screws
      G04407403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
