Crankshaft Position Sensor: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE V-BANK COVER (See THROTTLE BODY )
REMOVE FAN SHROUD (See REMOVAL )
REMOVE GENERATOR ASSEMBLY (See REMOVAL )
SEPARATE COOLER COMPRESSOR ASSEMBLY
1. Remove the bolt, then separate the suction hose sub-assembly.

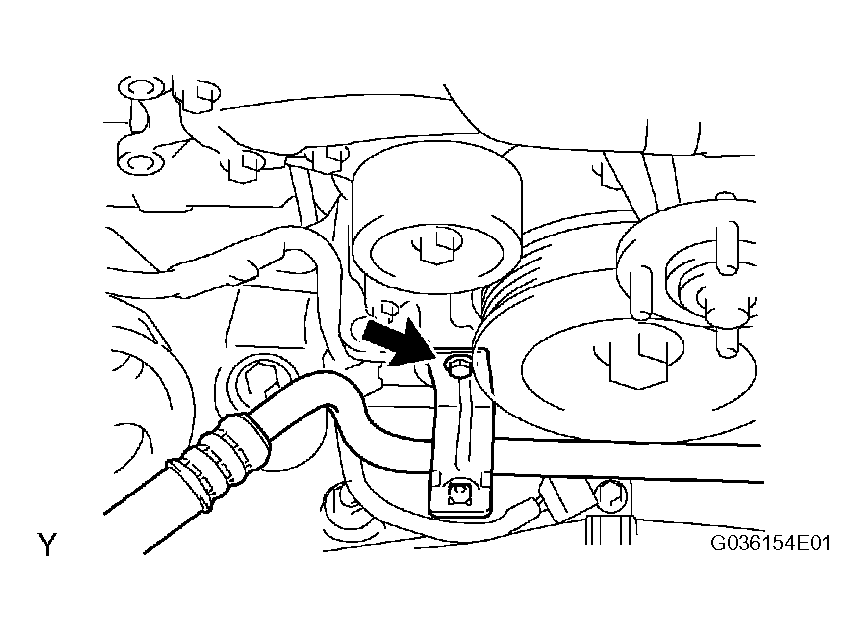

  Fig 1: Removing Suction Hose Sub-Assembly With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the cooler compressor assembly connector.
3. Remove the 4 bolts, then separate the cooler compressor assembly from the V-ribbed belt tensioner assembly.

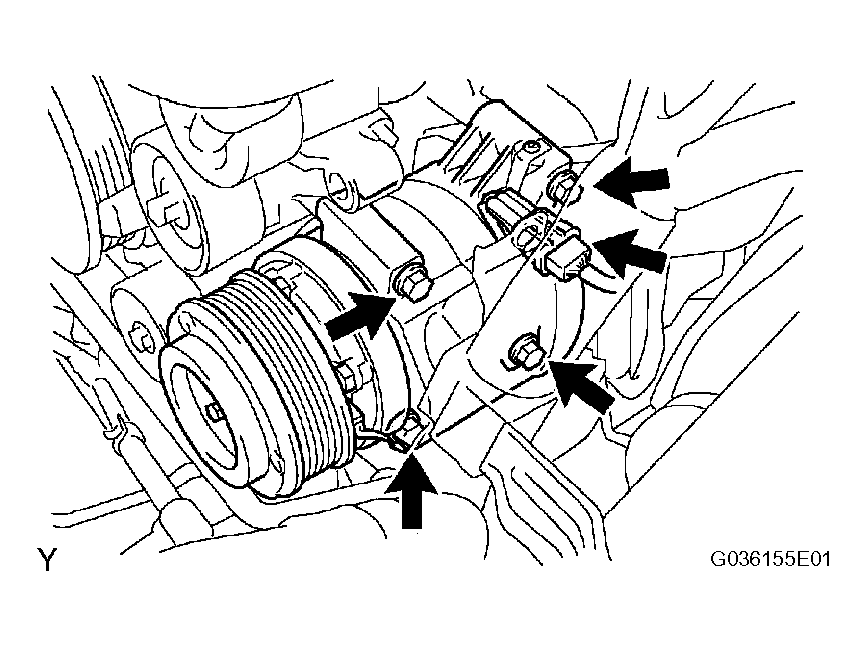

  Fig 2: Removing Cooler Compressor Assembly With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CRANKSHAFT POSITION SENSOR
1. Disconnect the crankshaft position sensor connector.
2. Remove the bolt, then remove the crankshaft position sensor.

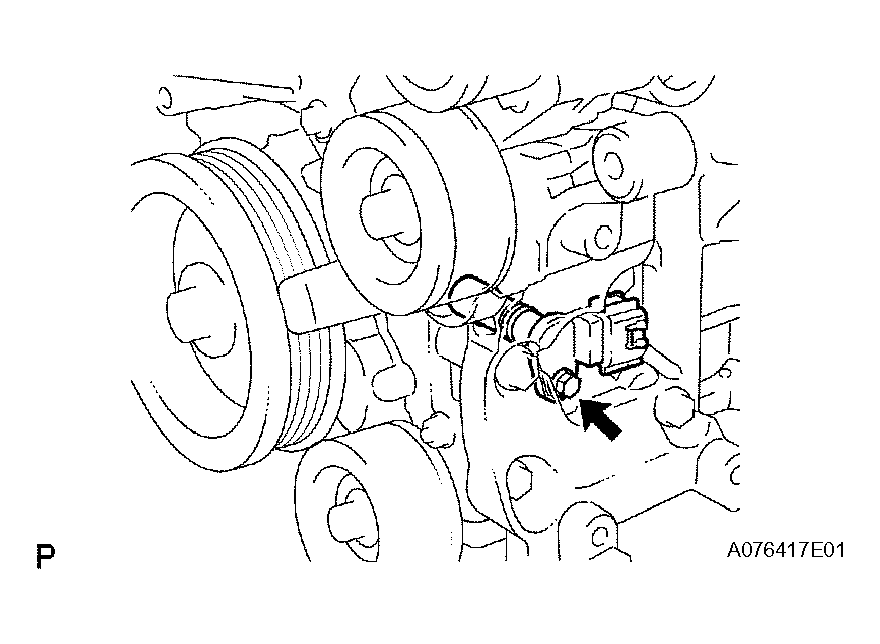

  Fig 3: Removing Crankshaft Position Sensor With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
