Camshaft Timing Oil Control Valve Assembly: Removal

  1. DRAIN ENGINE COOLANT (See  COOLANT  )
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  3. REMOVE V-BANK COVER (See  REMOVAL   )
  4. REMOVE AIR CLEANER ASSEMBLY (See  REMOVAL   )
  5. REMOVE INTAKE AIR SURGE TANK (See  REMOVAL  )
  6. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY
    1. Disconnect the 2 connectors.
    2. Remove the 2 bolts, then remove the 2 camshaft timing oil control valves.

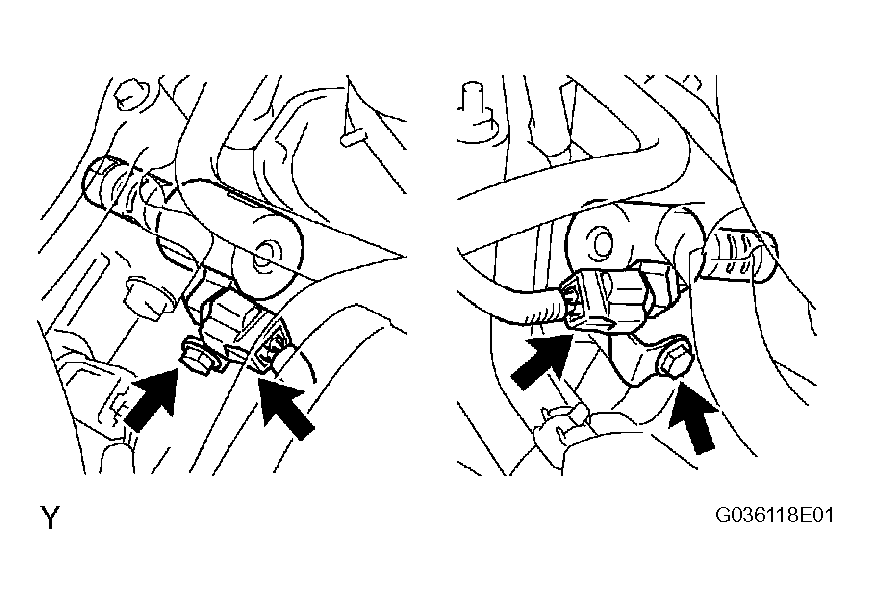

      Fig 1: Removing Camshaft Timing Oil Control Valves With Bolts
      G04407405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
