Rear Differential Lock for 2WD: Notes

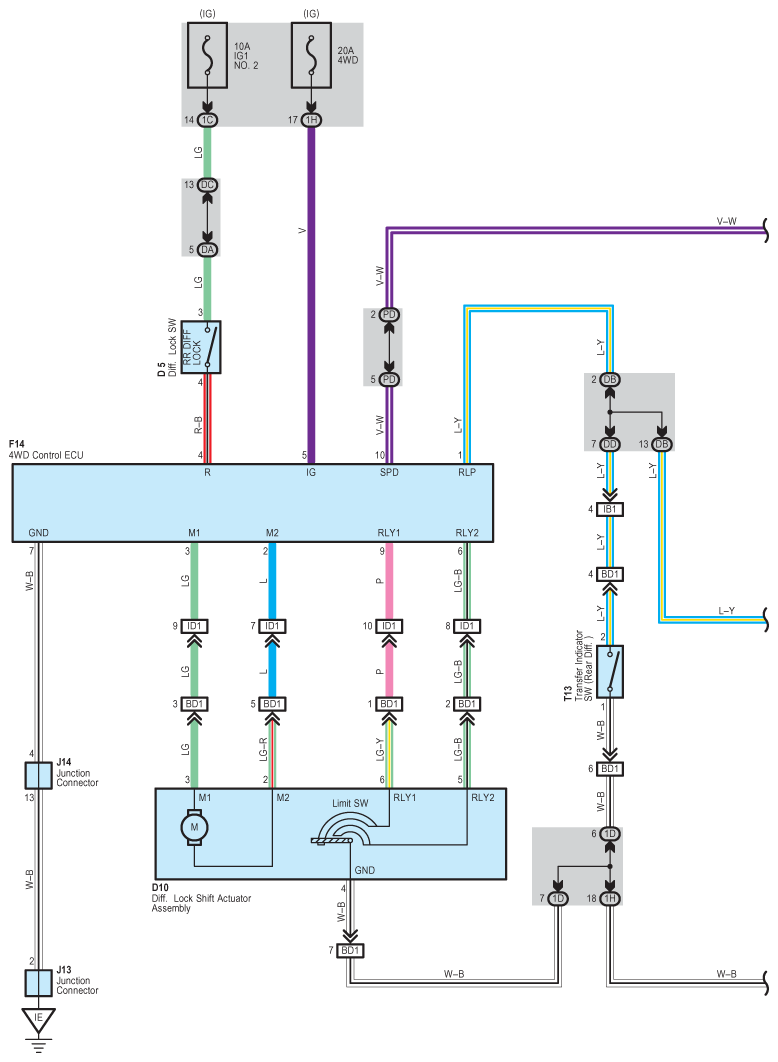

Fig 1: Rear Differential Lock For 2WD Wiring Diagram (1 Of 2)
G08788586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

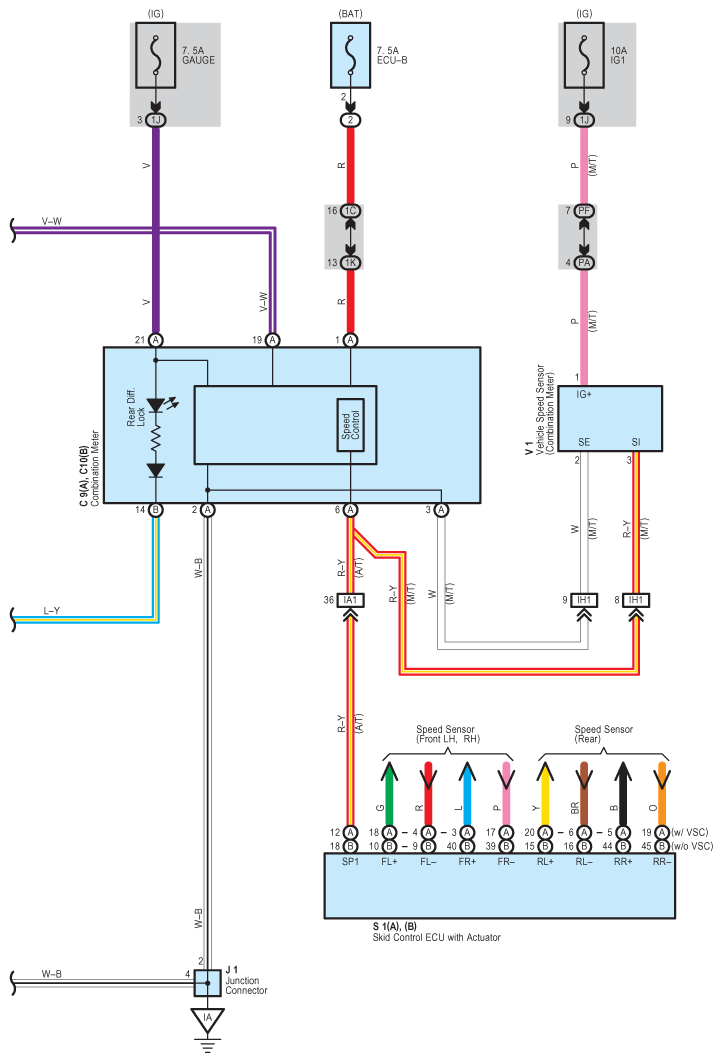

Fig 2: Rear Differential Lock For 2WD Wiring Diagram (2 Of 2)
G08788587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
