Multi Mode 4WD and Rear Differential Lock: Notes

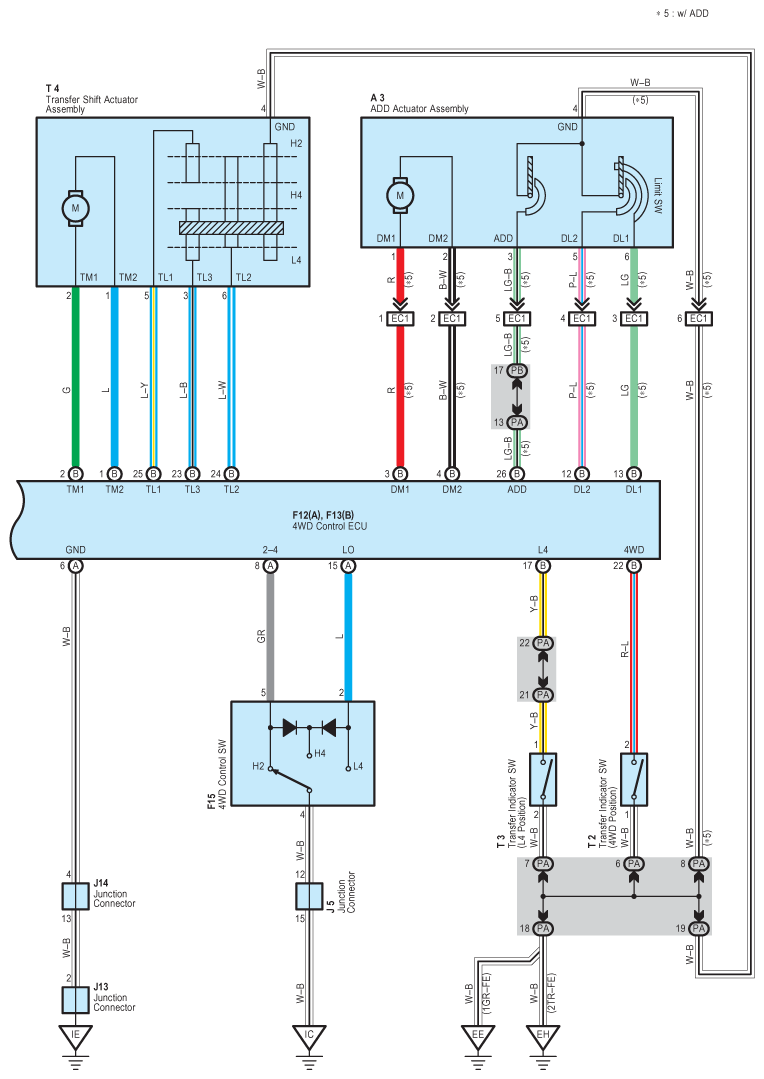

Fig 1: Multi Mode 4WD And Rear Differential Lock System Wiring Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

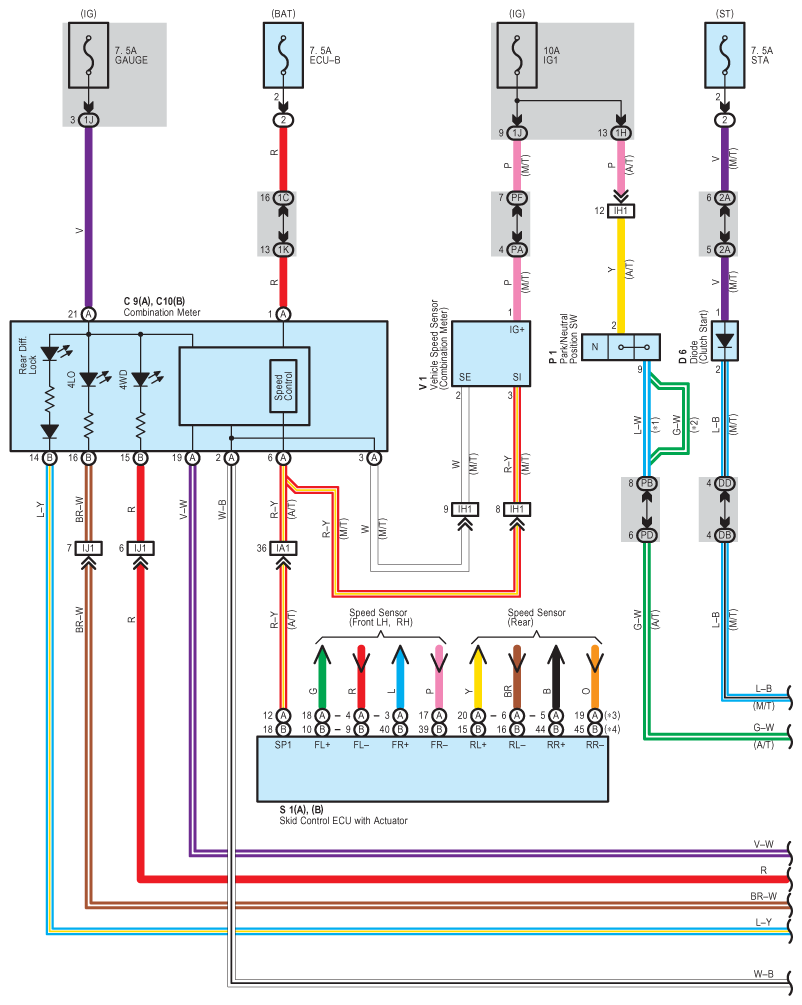

Fig 2: Multi Mode 4WD And Rear Differential Lock System Wiring Diagram (2 Of 3)

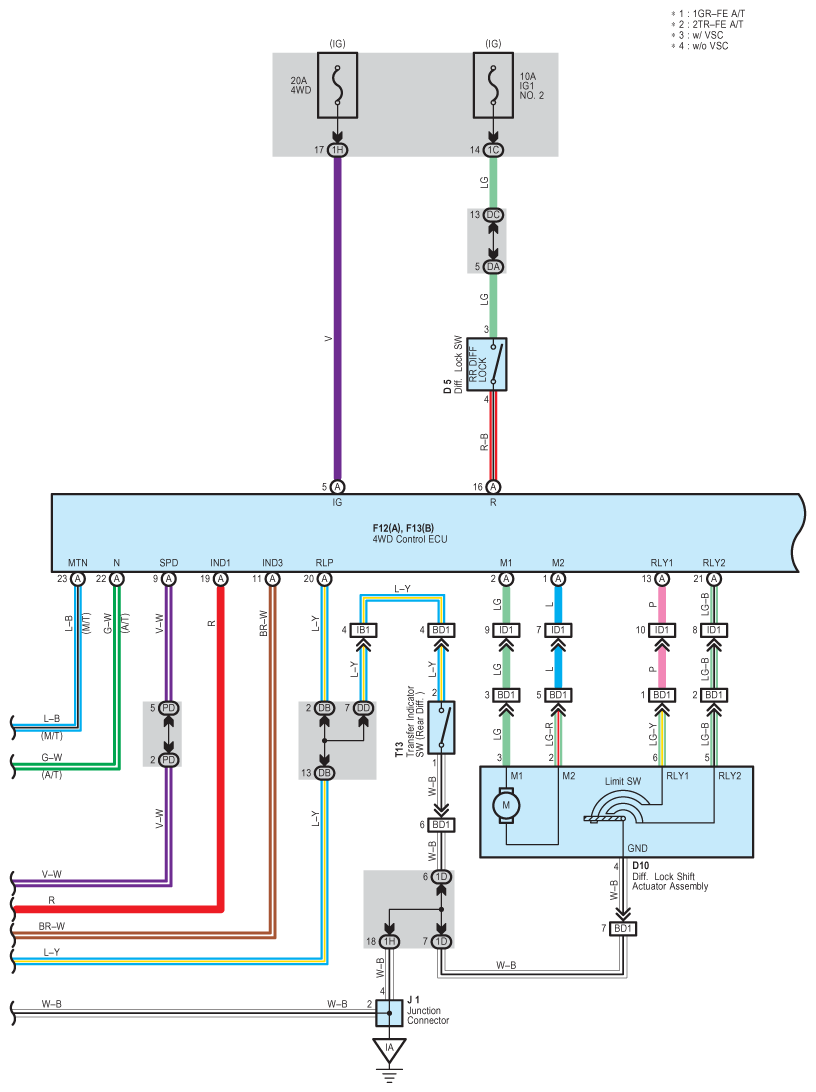

Fig 3: Multi Mode 4WD And Rear Differential Lock System Wiring Diagram (3 Of 3)
