Fuel Pump: Disassembly

REMOVE FUEL SENDER GAUGE ASSEMBLY
1. Disconnect the connector.

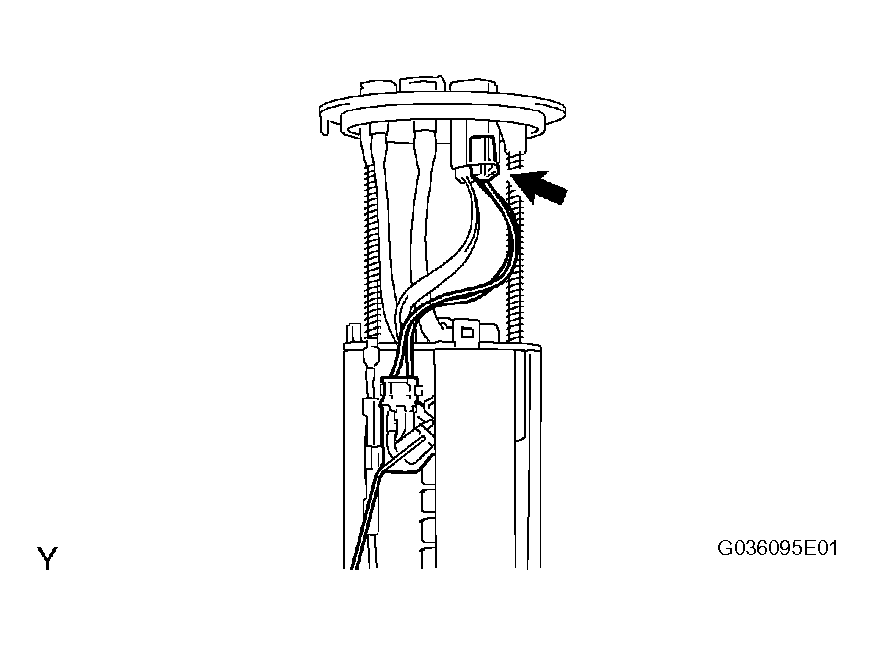

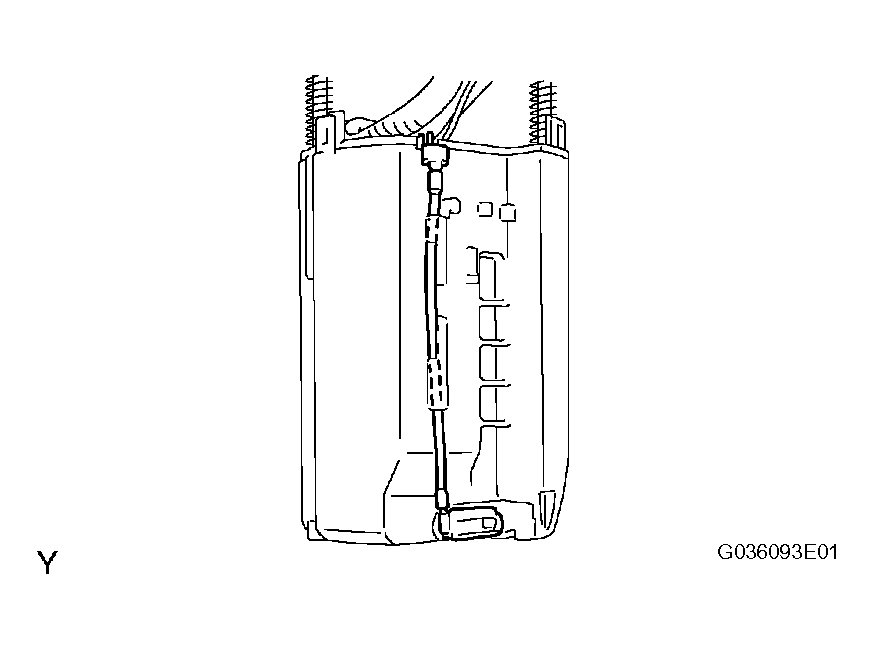

  Fig 1: Disconnecting Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the claw fitting and remove the sender gauge by sliding it in the direction as shown in Fig 2.

  Fig 2: Removing Sender Gauge
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 FUEL SUB-TANK
1. Disengage the 5 claw fittings and remove the fuel pump tank.

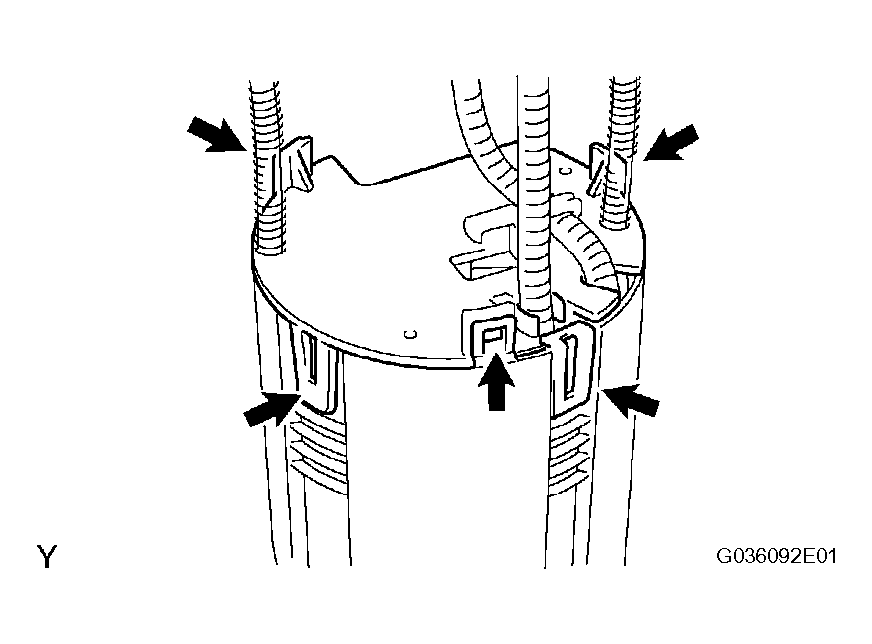

  Fig 3: Disengaging Claw Fittings & Removing Fuel Pump Tank
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Separate the connector and disengage the clamp.

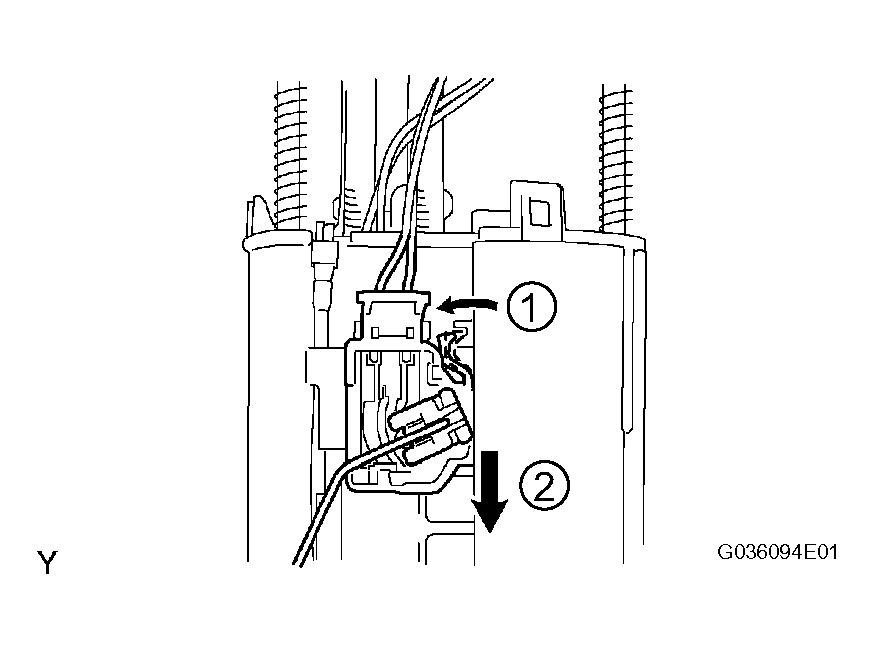

  Fig 4: Separating Connector & Disengaging Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL PUMP ASSEMBLY
1. Disengage the clamp, then disconnect the connector.

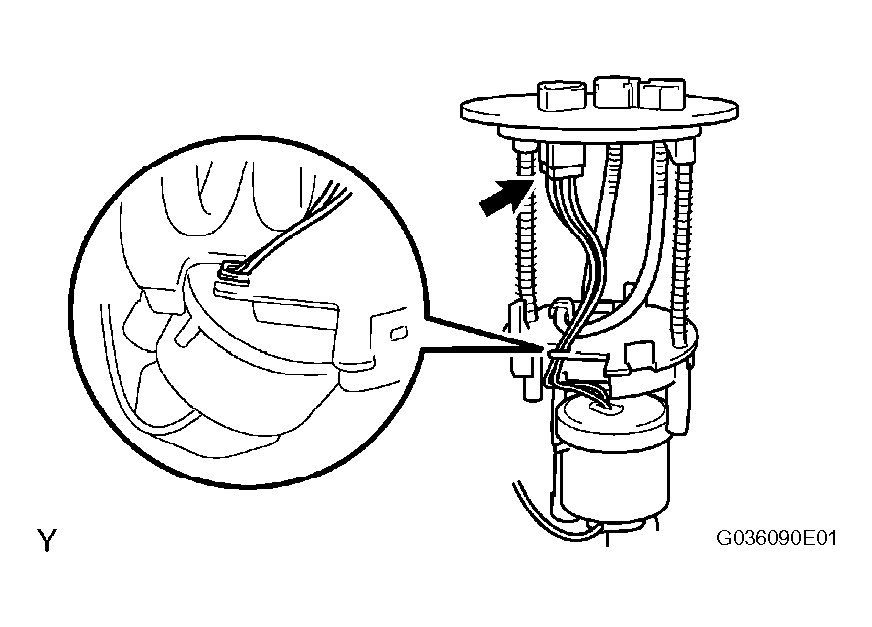

  Fig 5: Disengaging Clamp & Disconnecting Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the 5 claw fittings and separate the fuel pump from the fuel pump case.

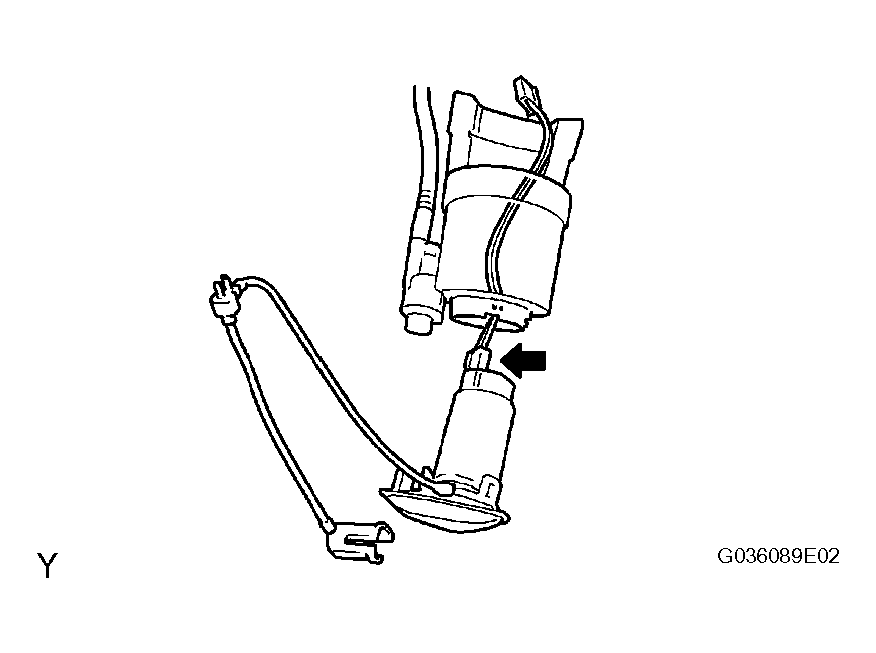

  Fig 6: Separating Fuel Pump From Fuel Pump Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the connector from the fuel pump.

  Fig 7: Disconnecting Connector From Fuel Pump
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL PUMP FILTER
1. Remove the fuel filter from the fuel pump.

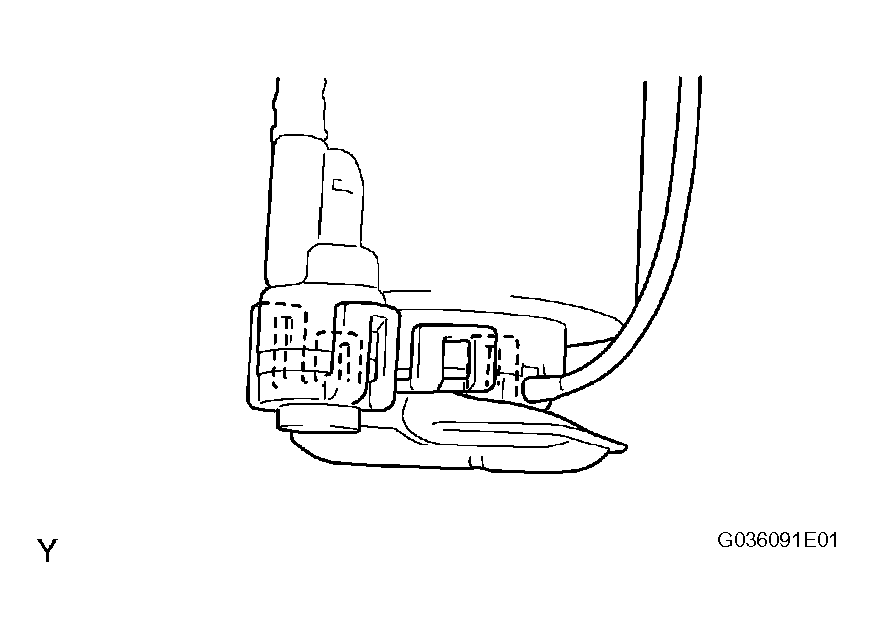

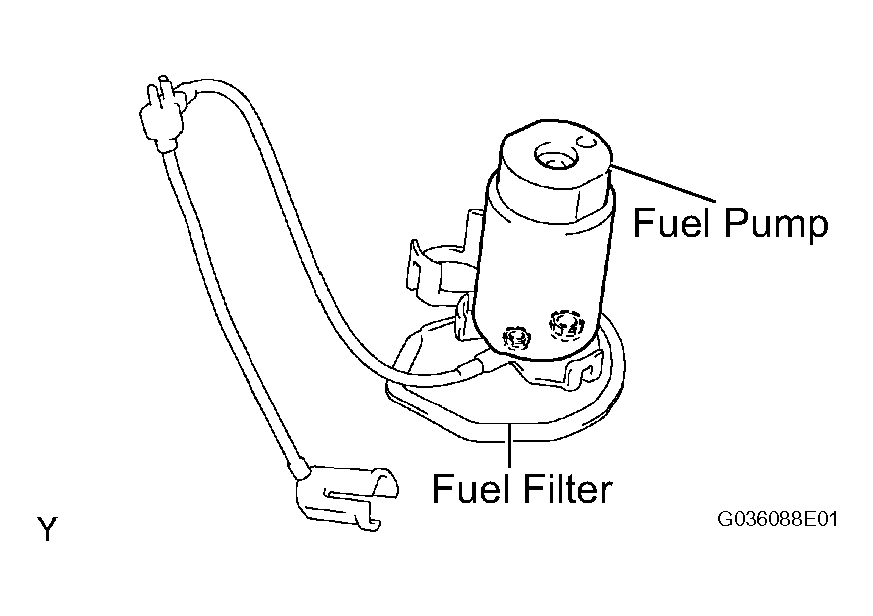

  Fig 8: Removing Fuel Filter From Fuel Pump
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL PRESSURE REGULATOR ASSEMBLY
1. Remove the fuel pressure regulator and the 2 O-rings.

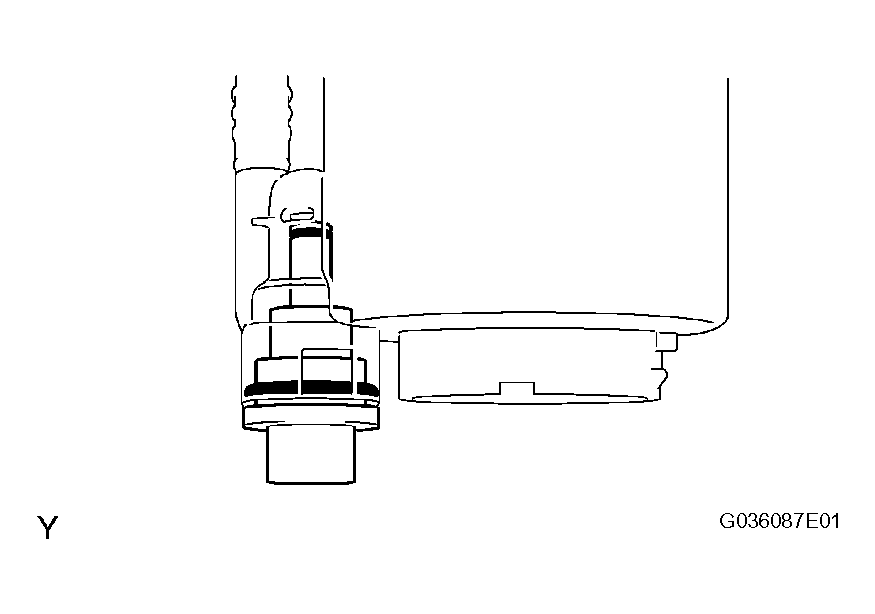

  Fig 9: Removing Fuel Pressure Regulator & O-Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
