Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment (4.0L)

G00364913

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

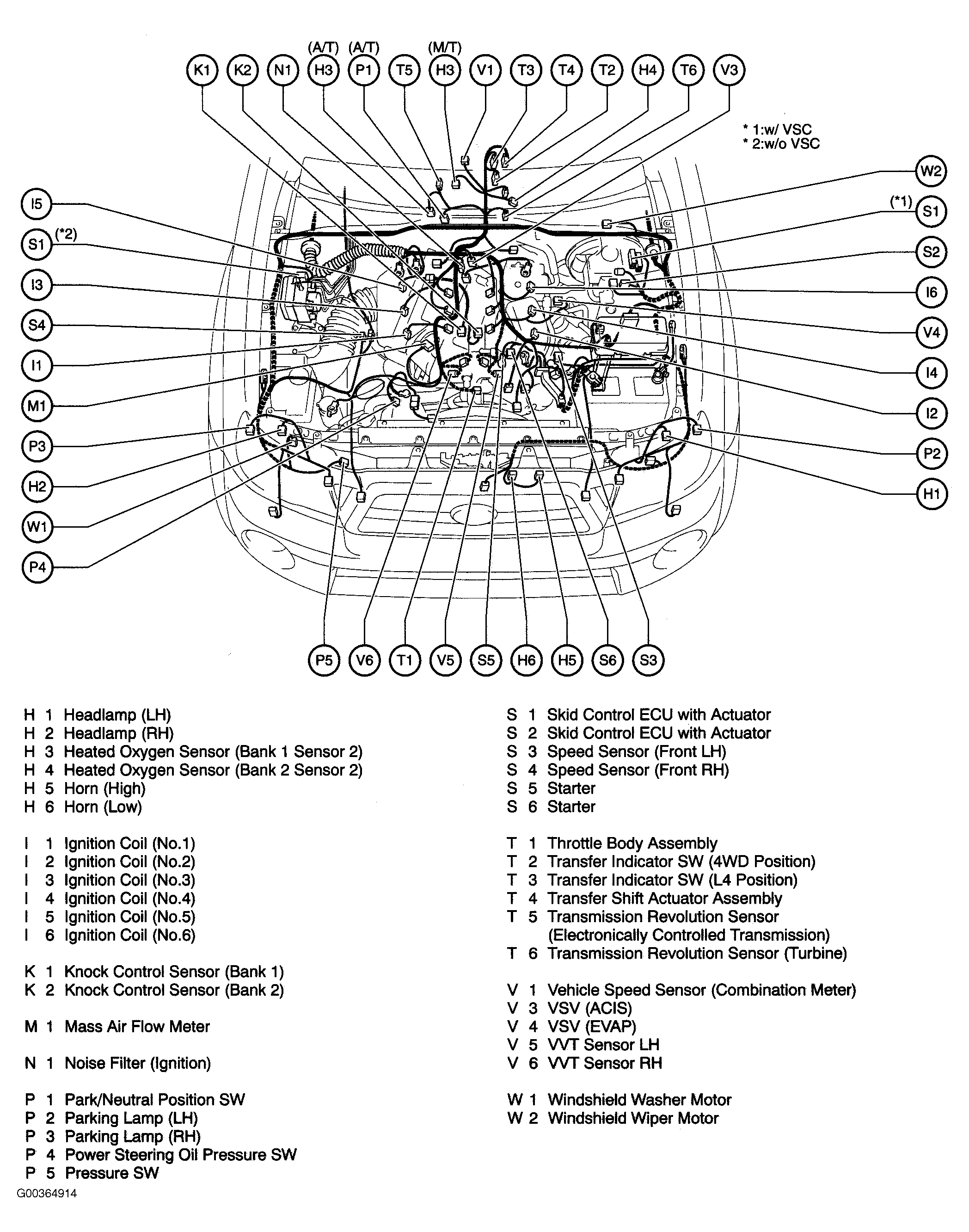

Fig 2: Engine Compartment (4.0L)

G00364914

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Engine Compartment (2.7L)

G00364915

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

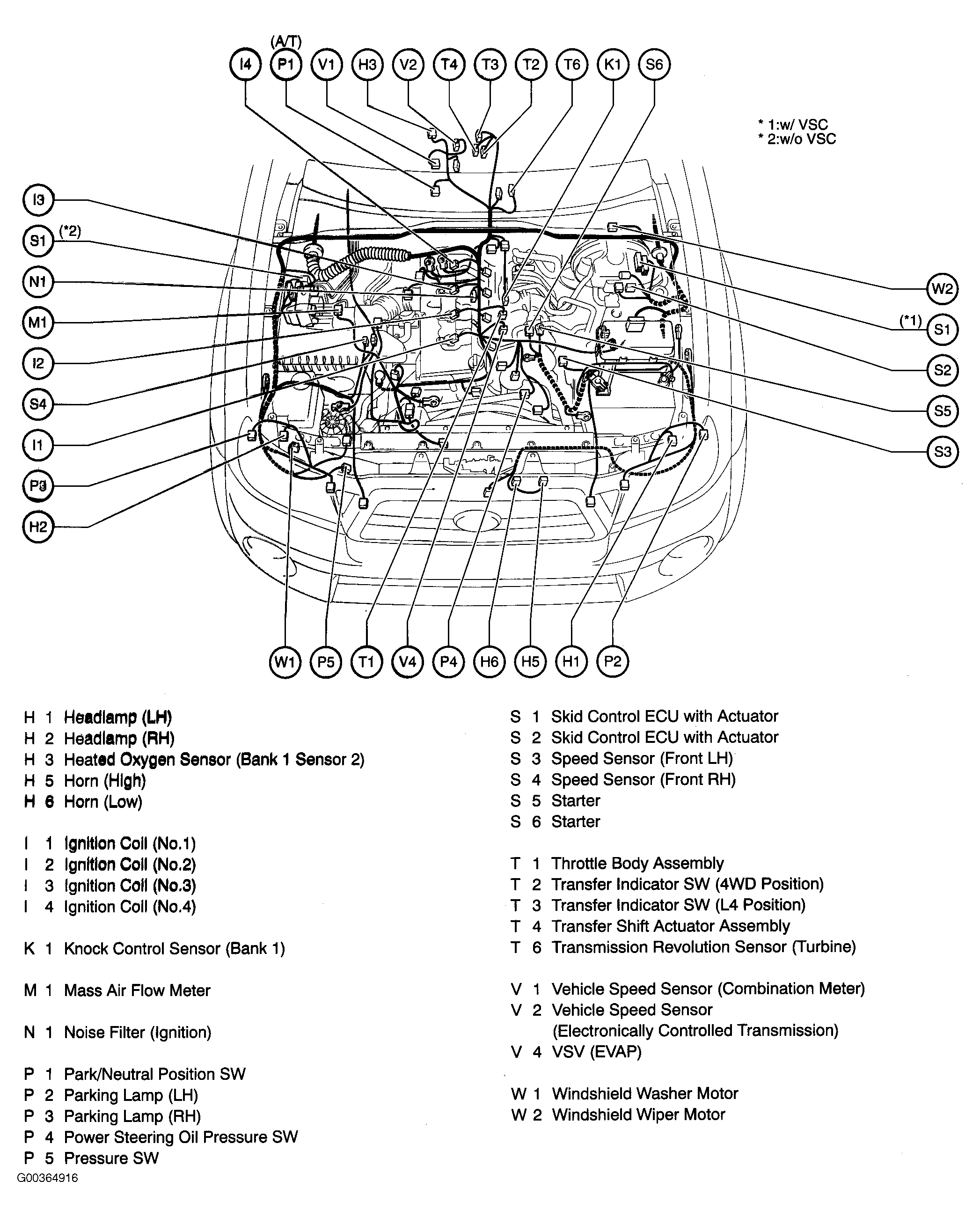

Fig 4: Engine Compartment (2.7L)

G00364916

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

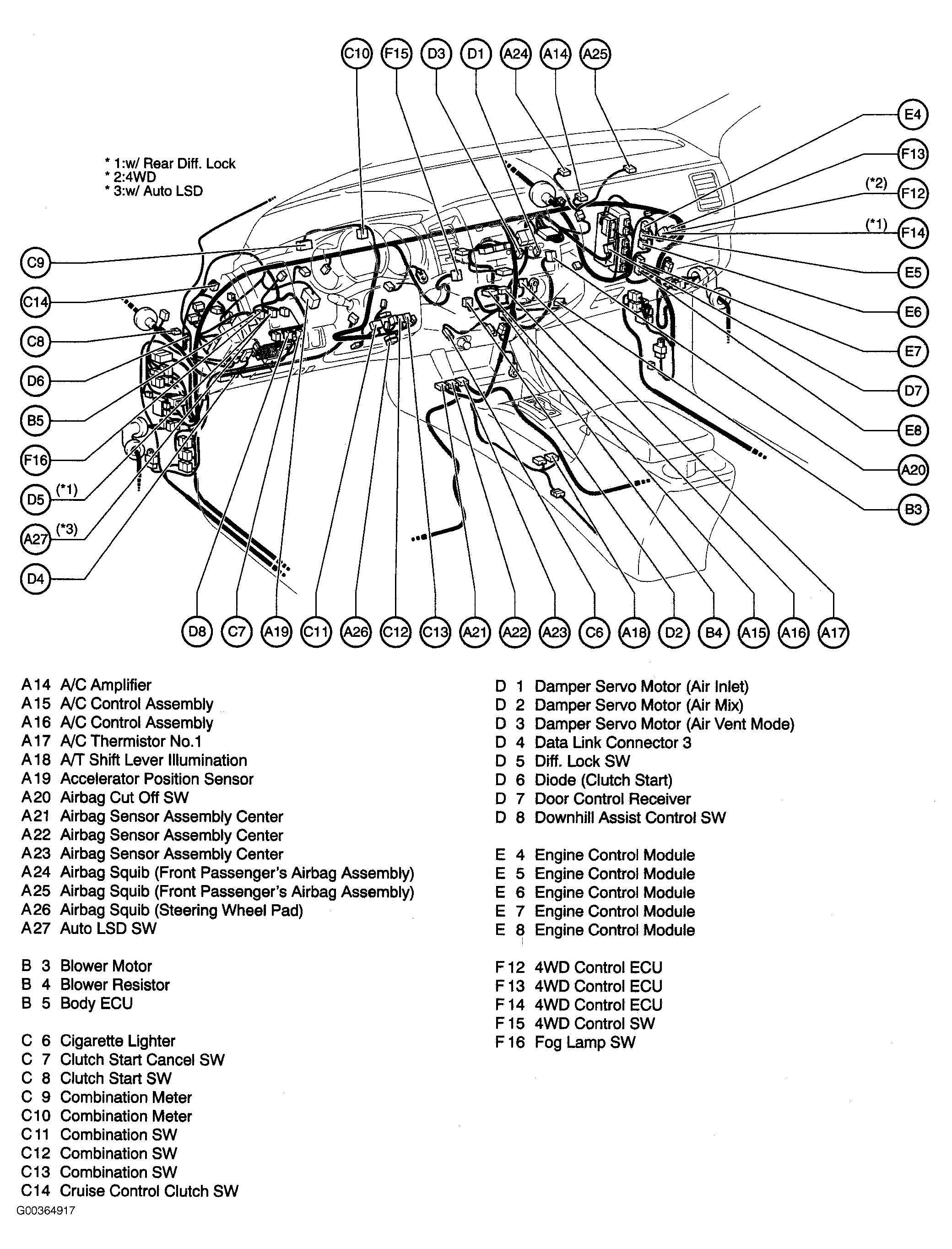

Fig 5: Dash

G00364917

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Dash

G00421743

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

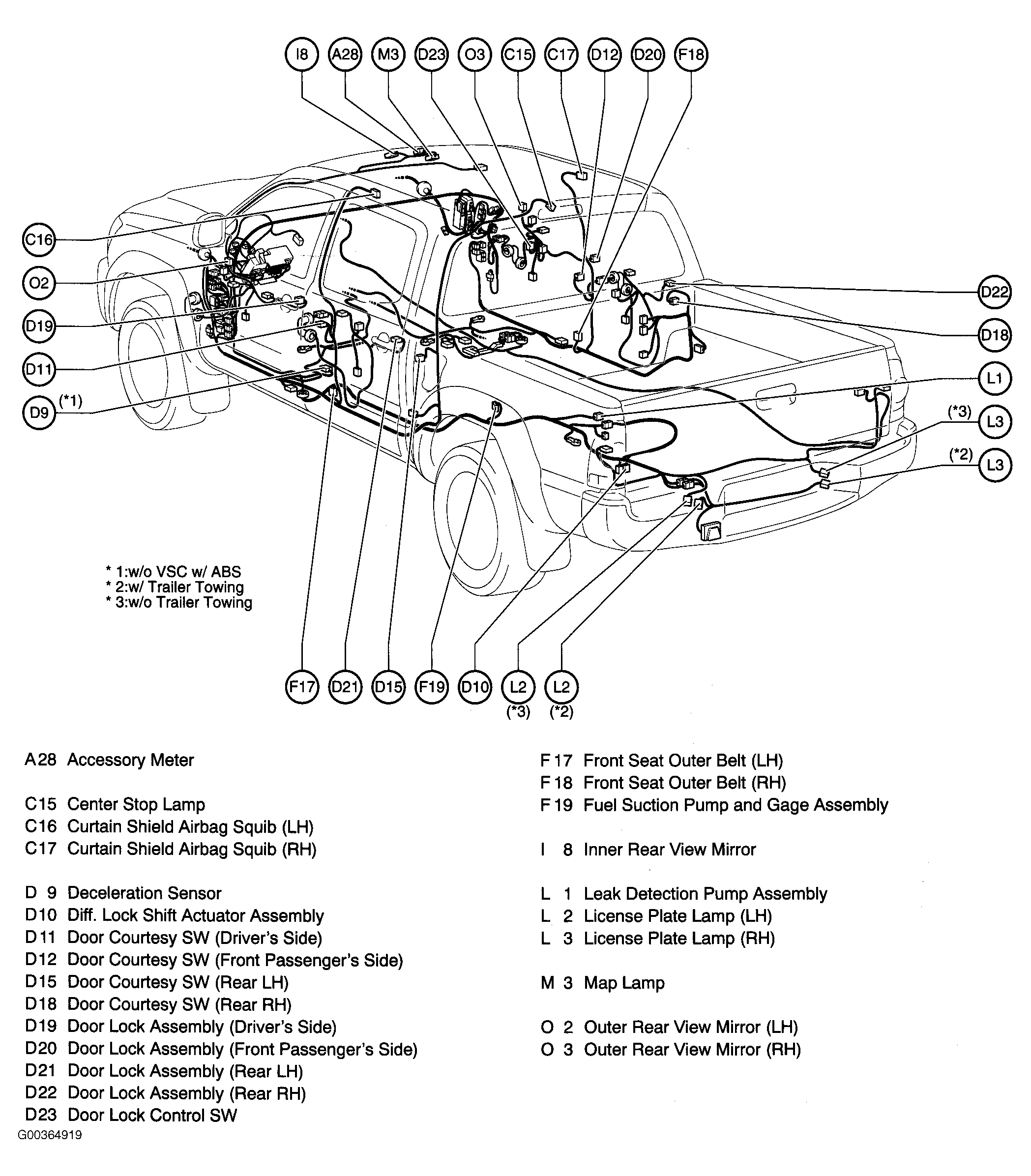

Fig 7: Vehicle Overview (Double Cab)

G00364919

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

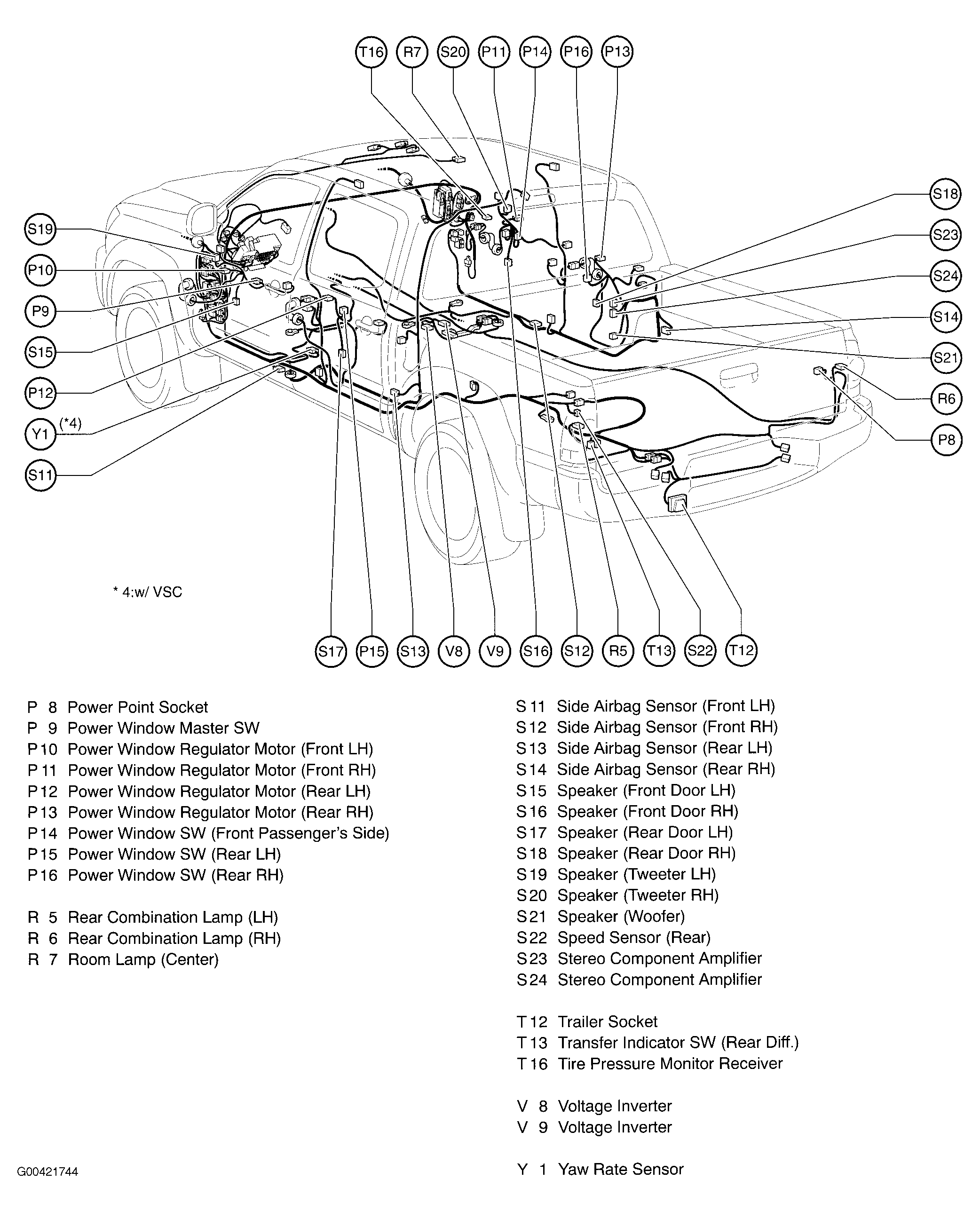

Fig 8: Vehicle Overview (Double Cab)

G00421744

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

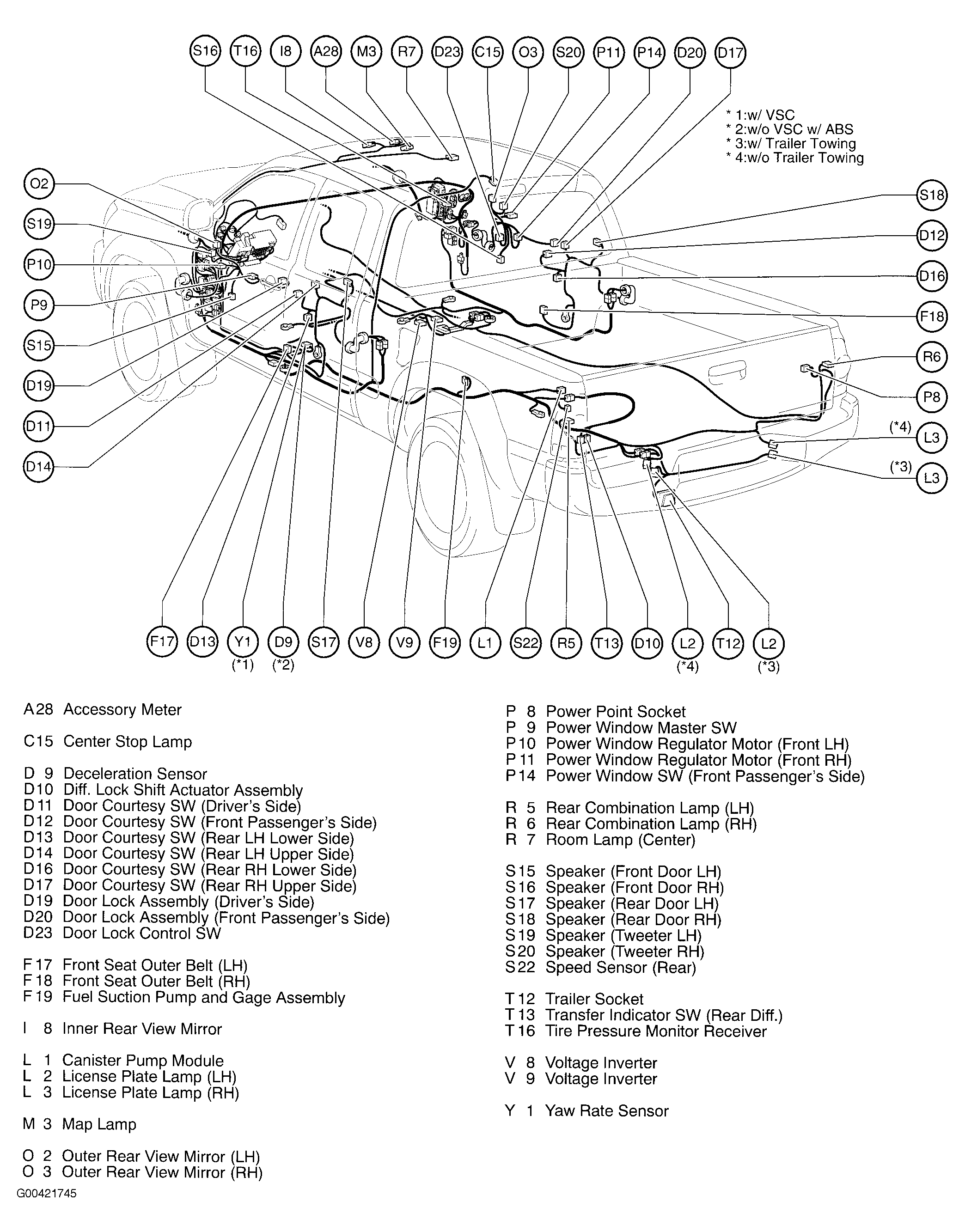

Fig 9: Vehicle Overview (Access Cab)

G00421745

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

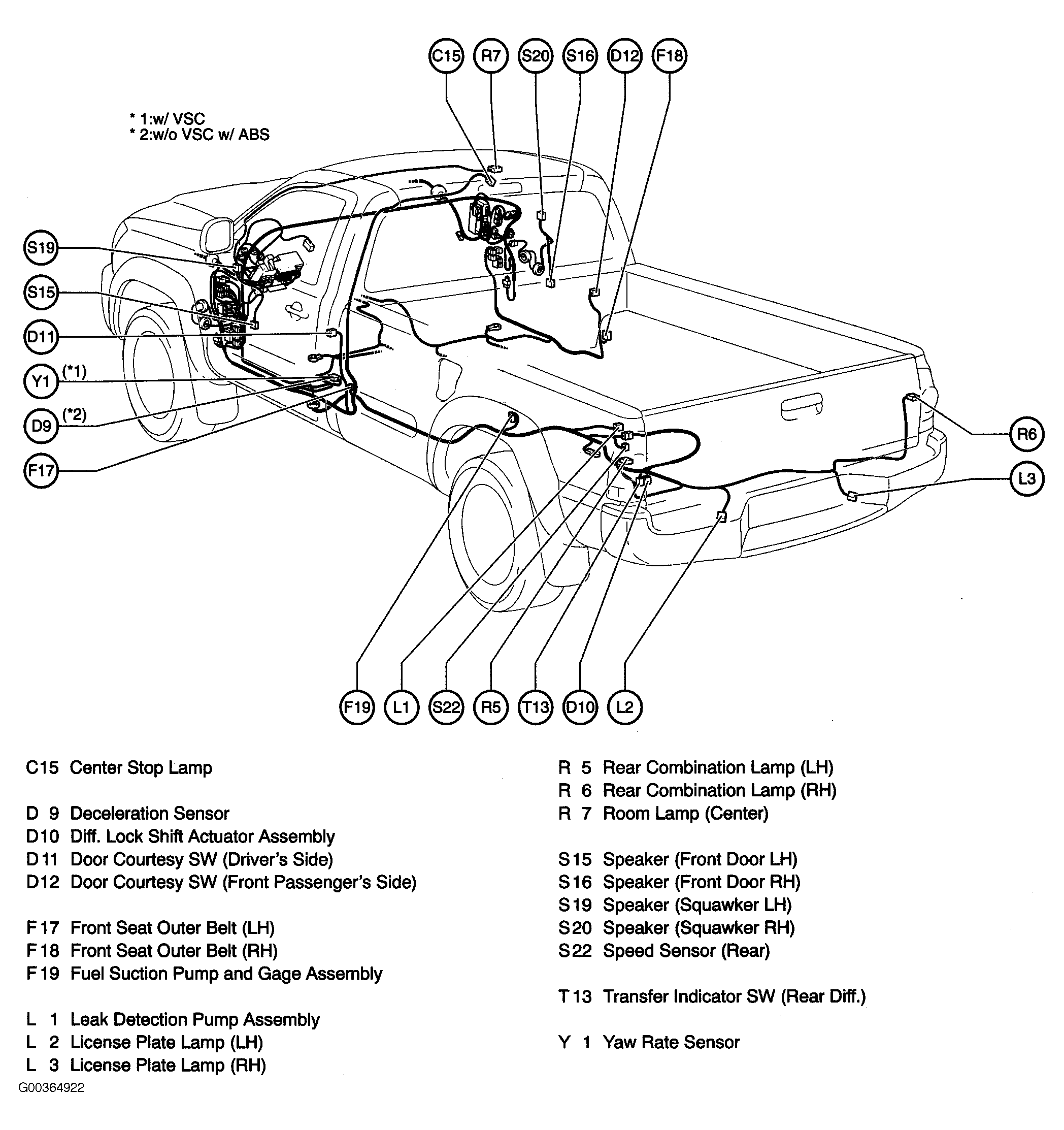

Fig 10: Vehicle Overview (Regular Cab)

G00364922

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Front Seats (Bucket)

G00364923

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Front Seat (Bench)

G00421746

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Engine Compartment (4.0L)

G00364925

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Engine Compartment (2.7L)

G00364927

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Dash

G00364929

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Dash

G00364930

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Dash

G00364931

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 18: Vehicle Overview

G00364933

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 19: Access Cab

G00364935

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 20: Vehicle Overview (Regular Cab)

G00364937

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 21: Bucket Seat

G00364939

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 22: Bench Seat

G00421747

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 23: Driver Side J/B

G00364943

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DRIVER SIDE JUNCTION BOX RELAY IDENTIFICATION

RELAY DESCRIPTION
1 L Gray (from Relay Wire)
1M (from Relay Wire)
Tail Relay
P/W Relay
ACC SKT Relay

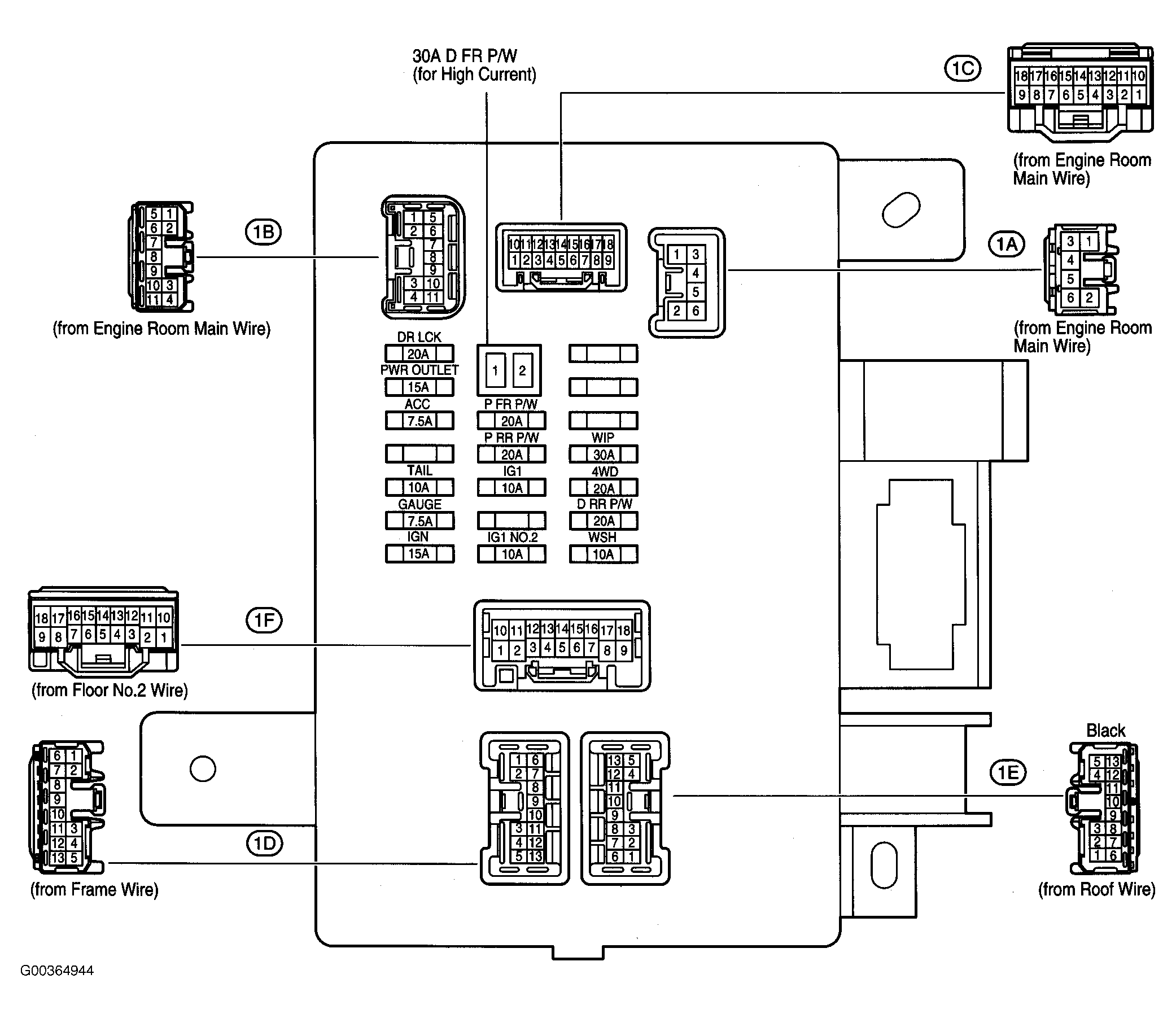

Fig 24: Driver Side J/B

G00364944

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

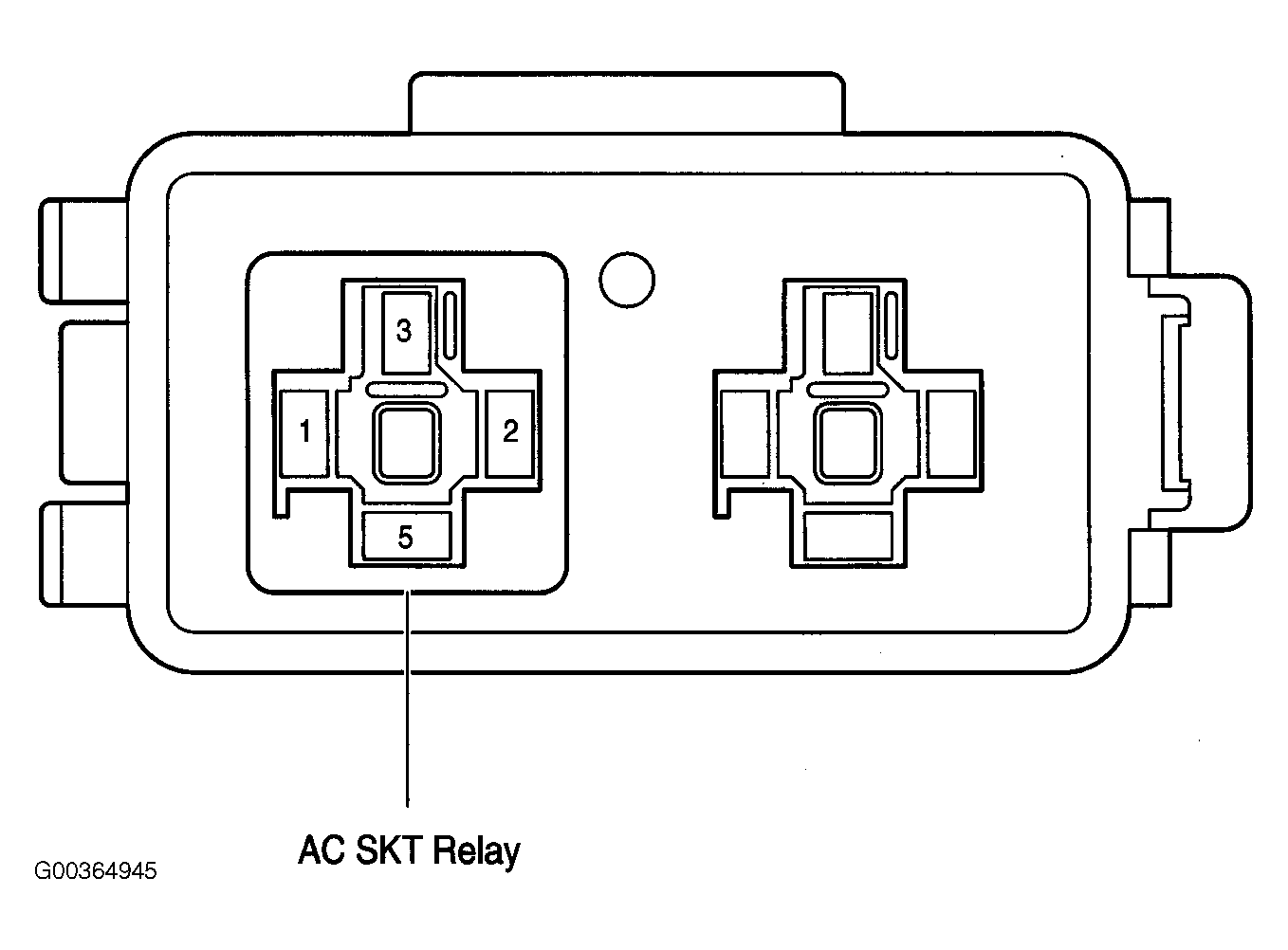

Fig 25: Engine Room R/B No.2

G00364945

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM RELAY BLOCK NO. 2 RELAY IDENTIFICATION

RELAY DESCRIPTION
AC SKT Relay

Fig 26: Front Seats

G00364946

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 27: Double Cab

G00364947

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 28: Access Cab

G00364948

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 29: Engine Compartment

G00364949

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 30: Dash

G00421741

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 31: Engine Room R/B

G00364951

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM JUNCTION BLOCK RELAY IDENTIFICATION

RELAY NUMBER	RELAY DESCRIPTION
-	FR FOG Relay (1GR-FE)
-	C/OPN Relay
-	A/F Heater Relay
-	Towing Tail Relay (w/ Trailer Towing)
-	Stop LP CTRL Relay (w/ VSC)
-	DIM Relay
-	STA Relay
-	Heater Relay
*11	EFI No.2
*12	Head Relay
*13	EFI Relay
*14	Fuel Pump Relay (1GR-FE)
*15	BATT CHG Relay (w/ Trailer Towing)
*16	MG CLT Relay
*17	Horn Relay
*18	w/ Trailer Towing
*19	w/o Trailer Towing
*20	w/ Power Outlet (115V)

Fig 32: Bench Seat

G00421742

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
