System Diagram

WARNING: This page is about a different car, the 2006 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

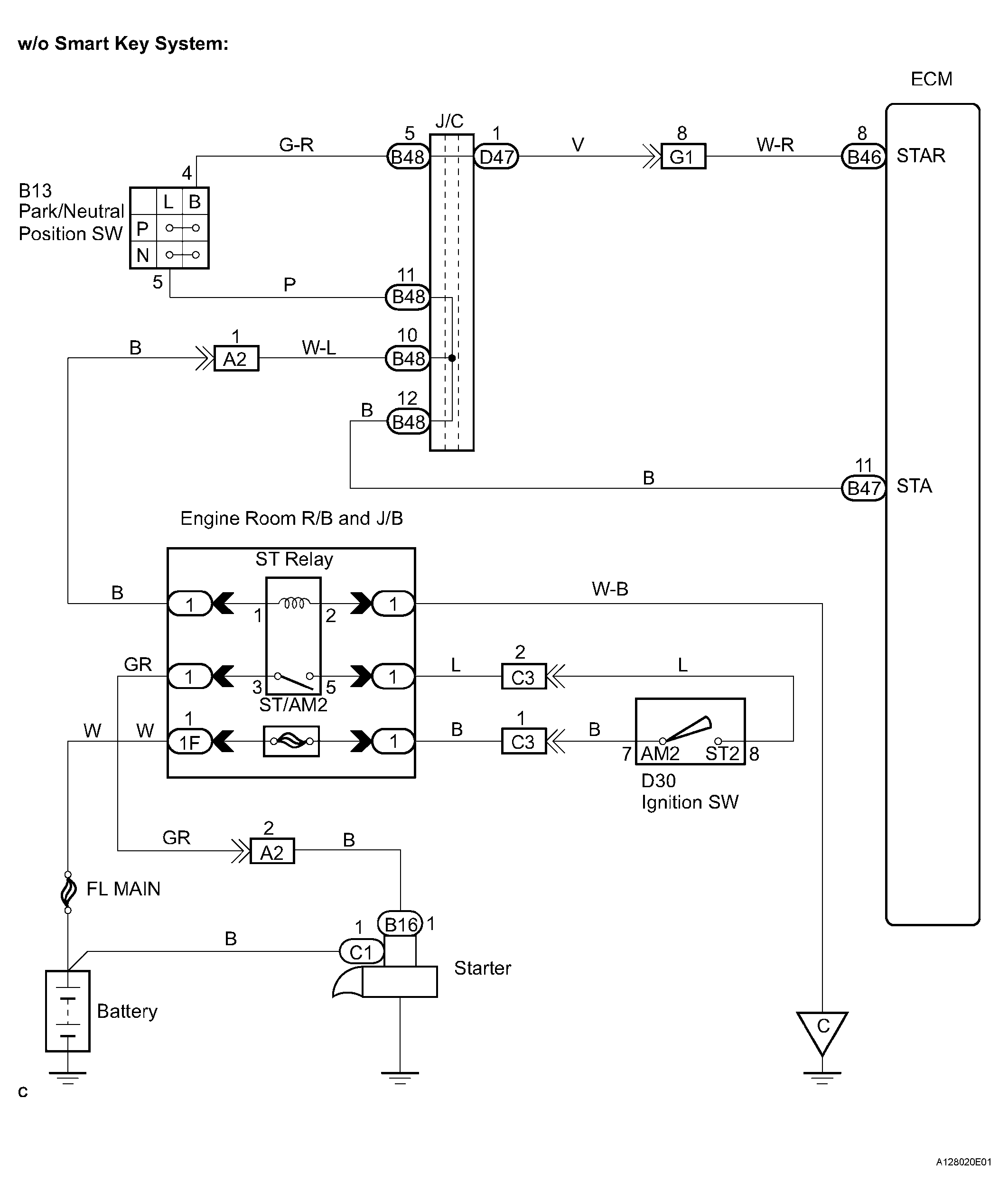

Fig 1: Starting System Diagram (W/O Smart Key System)
G04377163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

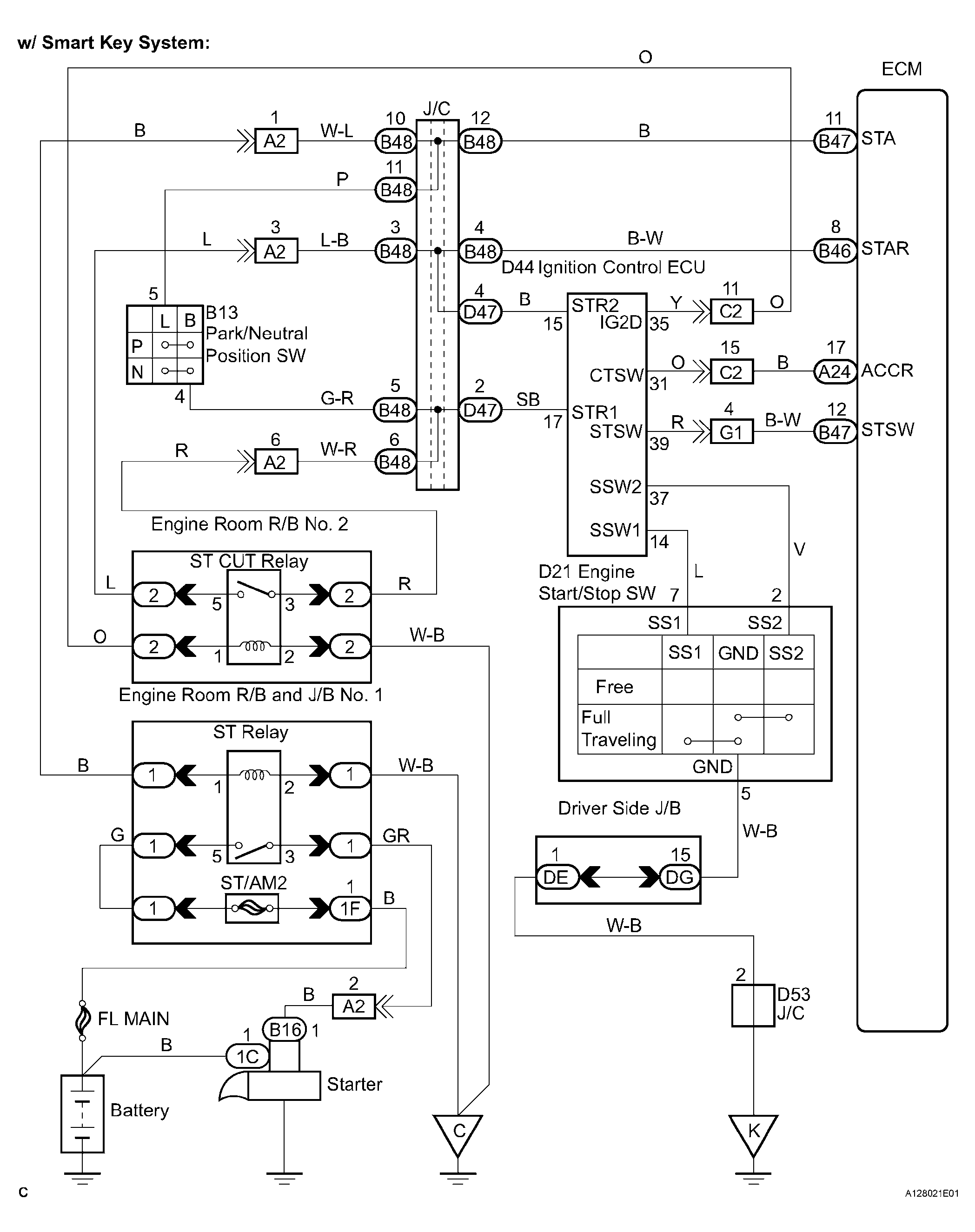

Fig 2: Starting System Diagram (W/ Smart Key System)
G04377164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
