Throttle Body: Installation

INSTALL THROTTLE WITH MOTOR BODY ASSEMBLY
1. Install a new gasket onto the intake manifold.

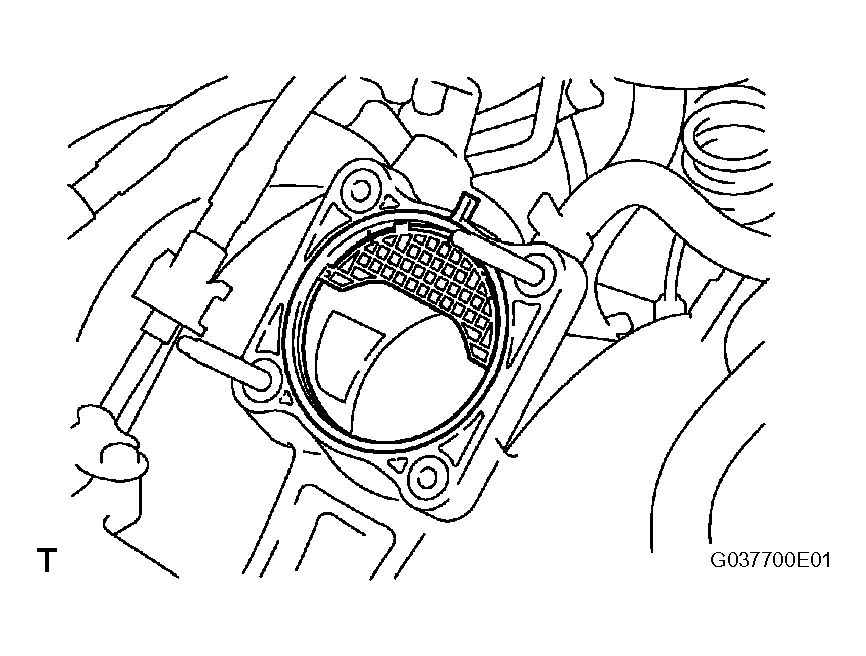

  Fig 1: Installing New Gasket Onto Intake Manifold
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the throttle with motor body with the 2 bolts and 2 nuts.
  Torque: 9 N*m (92 kgf*cm, 80 in.*lbf)

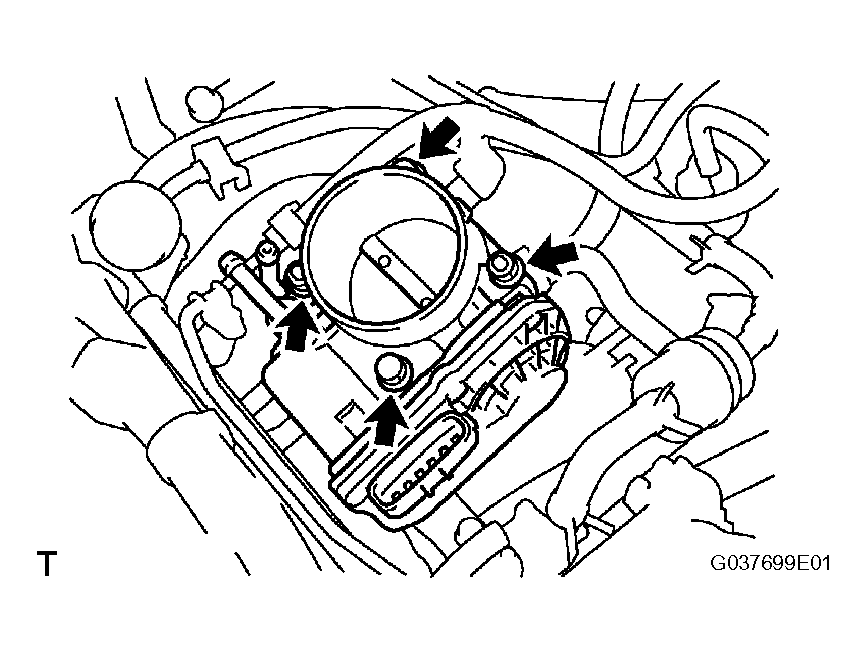

  Fig 2: Installing Throttle With Motor Body With Bolts & Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the water by-pass hose.
4. Connect the water by-pass hose No. 2.
5. Connect the throttle motor connector.

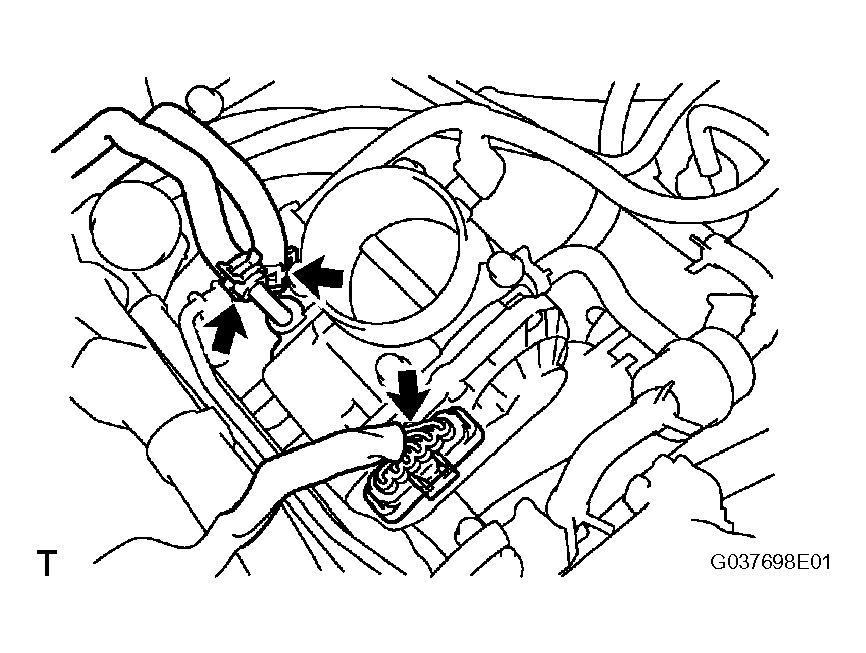

  Fig 3: Connecting Water By-Pass Hose No. 2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INTAKE AIR CONNECTOR
1. Install the intake air connector with the 3 bolts.
  Torque: 8 N*m (82 kgf*cm, 71 in.*lbf)
2. Tighten the 2 hose clamp bolts.
  Torque: 5 N*m (51 kgf*cm, 44 in.*lbf)

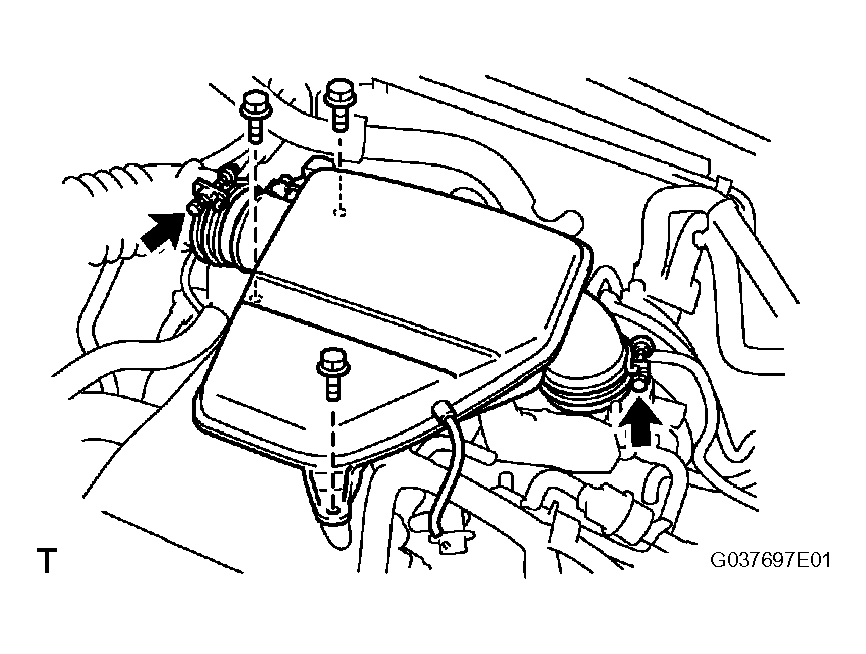

  Fig 4: Installing Intake Air Connector With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the vacuum hose.

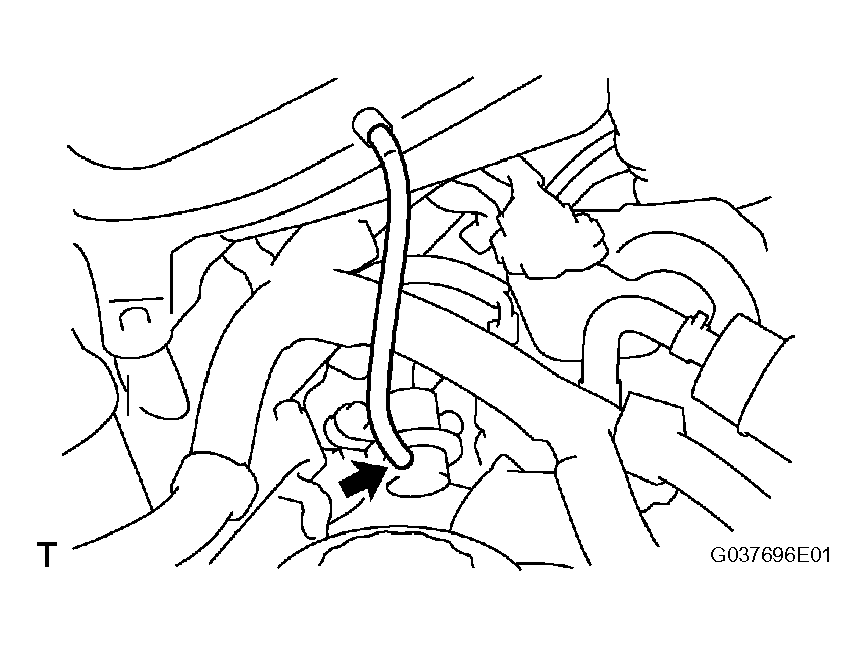

  Fig 5: Connecting Vacuum Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the ventilation hose No. 2.

  Fig 6: Connecting Ventilation Hose No. 2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Connect the vacuum hose.
6. Engage the wire harness clamp.
7. Connect the pressure sensor connector.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)
ADD ENGINE COOLANT (See COOLANT )
CHECK FOR ENGINE COOLANT LEAKAGE (See ON-VEHICLE INSPECTION )

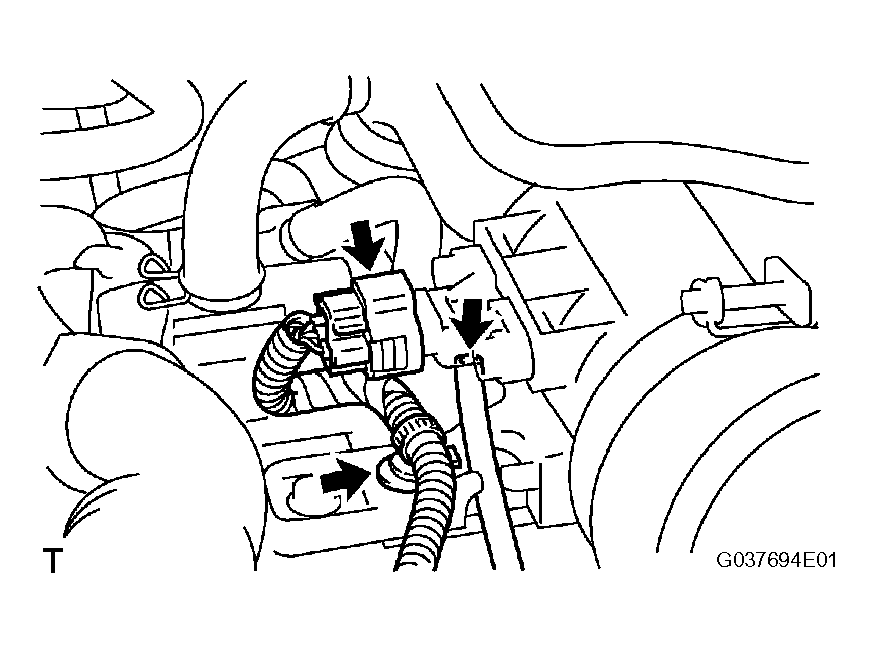

Fig 7: Engaging Wire Harness Clamp
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ENGINE UNDER COVER SUB-ASSEMBLY NO.1 (for 4WD and Pre-Runner)
